Product Description

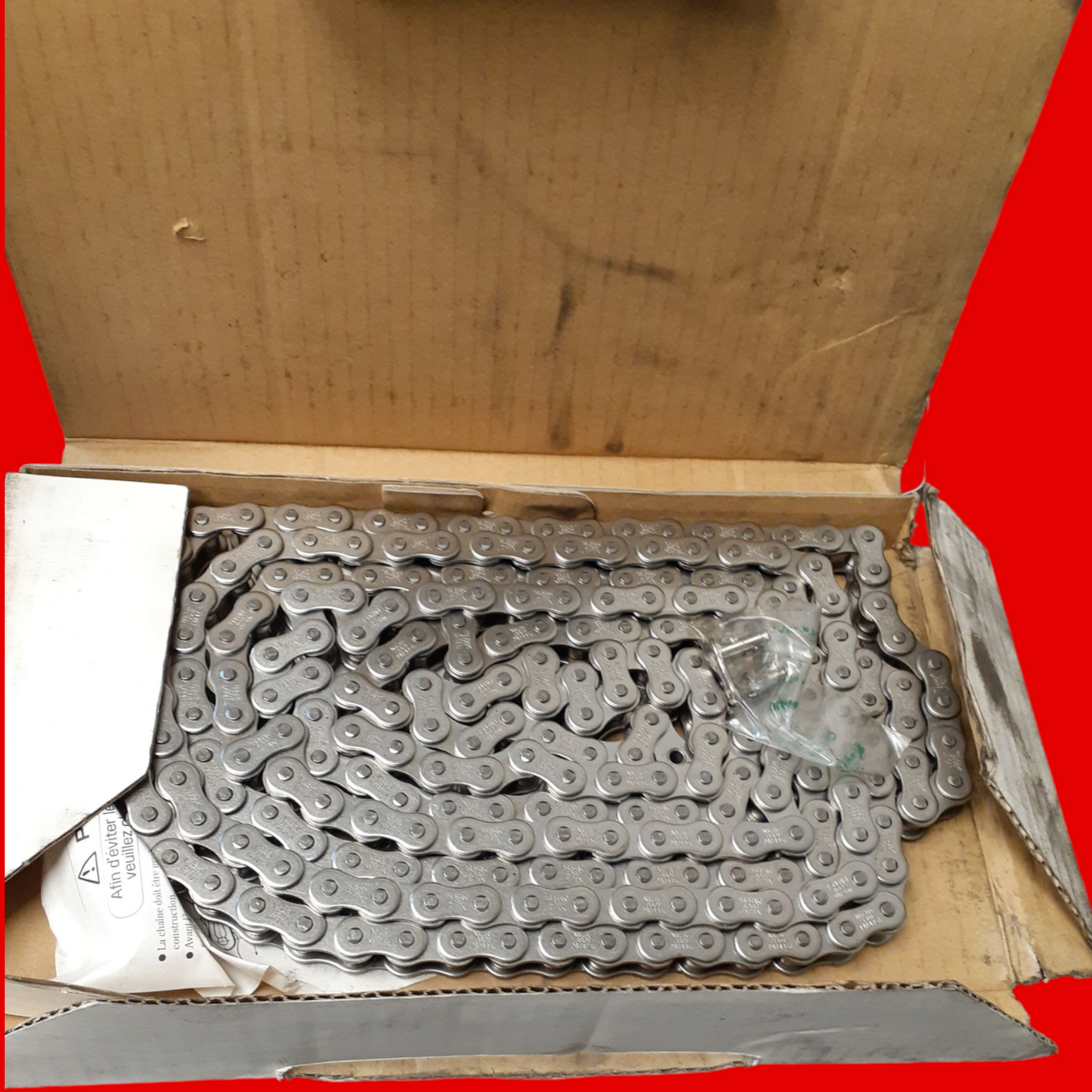

Tsubaki 40SS Roller Chain: Single Strand, 40, 1/2 in Pitch, Stainless Steel, 10 ft Overall Lg
PN: 40SS
- Chain Construction: Rollerless Bushing
- Chain Number: 40
- Chain Overall Width: 0.717 in
- Features: It is Generally Considered Non-Magnetic, Although Some Permeability can be Found in These Chains
- Heavy Series: No
- Inside Width: 0.313 in
- Material: Stainless Steel
- Material Grade: Type 304
- Maximum Operating Temperature: 750 °F
- Minimum Operating Temperature: -270 °F
- Number of Strands: 1
- Overall Length: 10 ft
- Pin Contruction: Riveted Pin
- Pin Outside Diameter: 0.156 in
- Pitch: 1/2 in
- Pitch Type: Single Pitch
- Plate Height: 0.472 in
- Plate Thickness: 0.06 in
- Resistance Properties: Corrosion Resistant; High and Low Temperature Resistant
- Roller Chain Standard: ANSI
- Roller Diameter: 5/16 in
- Series: SS
- Standards: ANSI
- Weight Per Length: 0.43 lb/ft
- Working Load Limit: 99 lb
- Series: SS
