Product Description

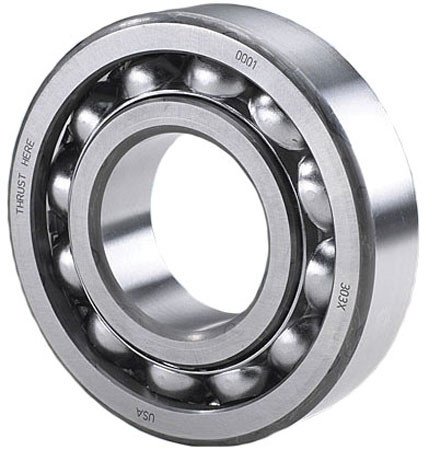

MRC 309 SFF Radial/Deep Groove Ball Bearing - Round Bore
- -Closure Type Sealed On Both Sides
- -Inner Dia. 45mm
- -Outer Dia. 100mm
- -Width 25mm
- -Single Row
- -No Snap Ring
- - Deep Groove Bearing
45 mm ID, 100 mm OD, 25 mm Width, Double Shielded, C0 Internal Clearance
| Bore Type | Round |
|---|---|
| Bore Diameter | 45 mm |
| Outside Diameter | 100 mm |
| Overall Width | 25 mm |
| Closure Type | Double Shielded |
| Row Type & Fill Slot | Single Row Non-Fill Slot |
| Internal Clearance | C0 |
| Dynamic Load Capacity | 11900 lbf |
| Static Load Capacity | 7080 lbf |
| Precision Rating | ABEC 1 (ISO Class Normal) |
| Finish/Coating | Uncoated |
| Cage Material | Steel |
| Outer Ring Width | 25 mm |
| Fillet Radius | 1.5 mm |
| Maximum RPM | 8000 RPM |
| Series | 300-S |
| Additional Details | Open bearing: Prefix designation S , Sealed on both sides: Prefix designation ZZ , Shielded on both sides: Prefix designation FF , Snap ring groove: Prefix designation G |
| Weight | 1.94 lbs |
