Product Description

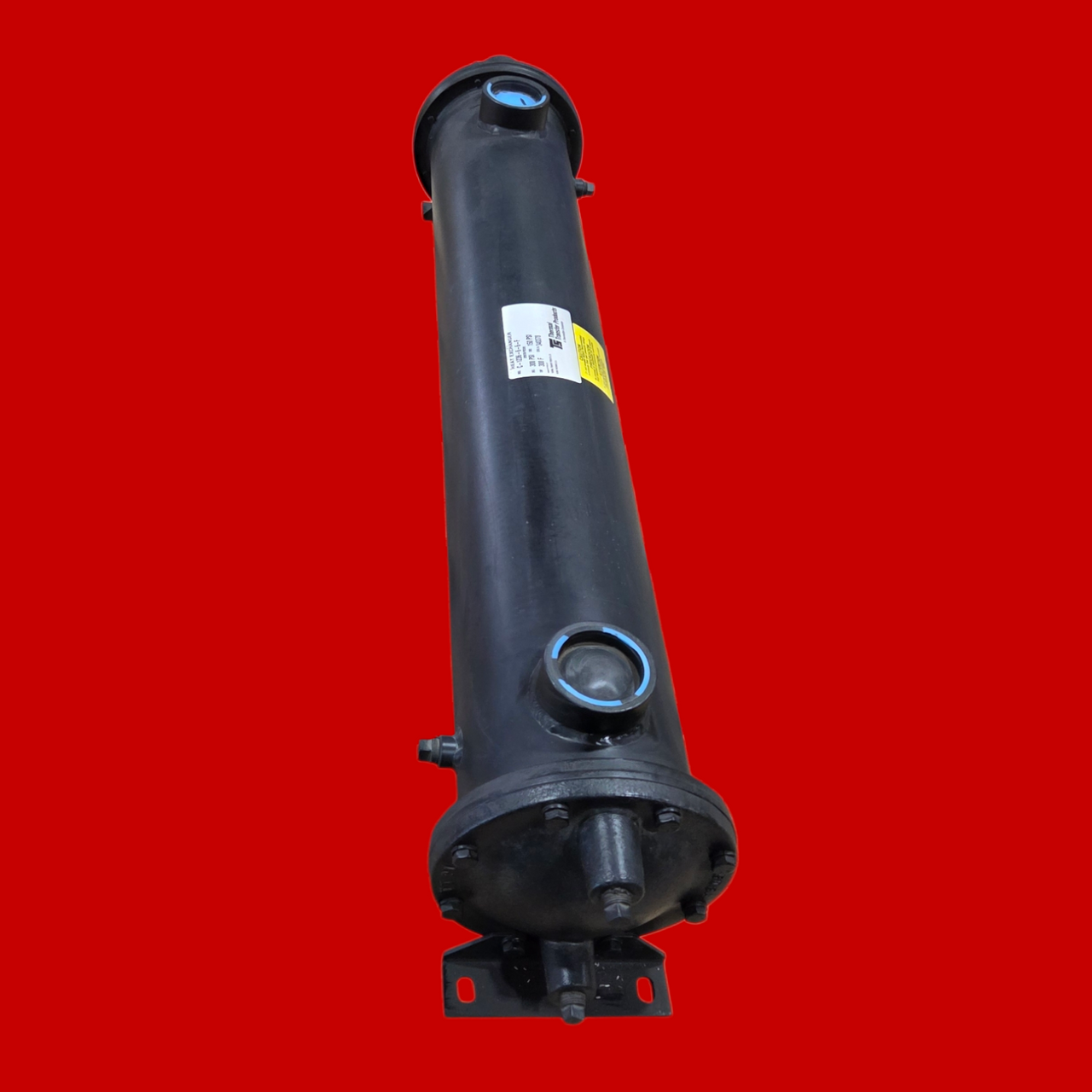

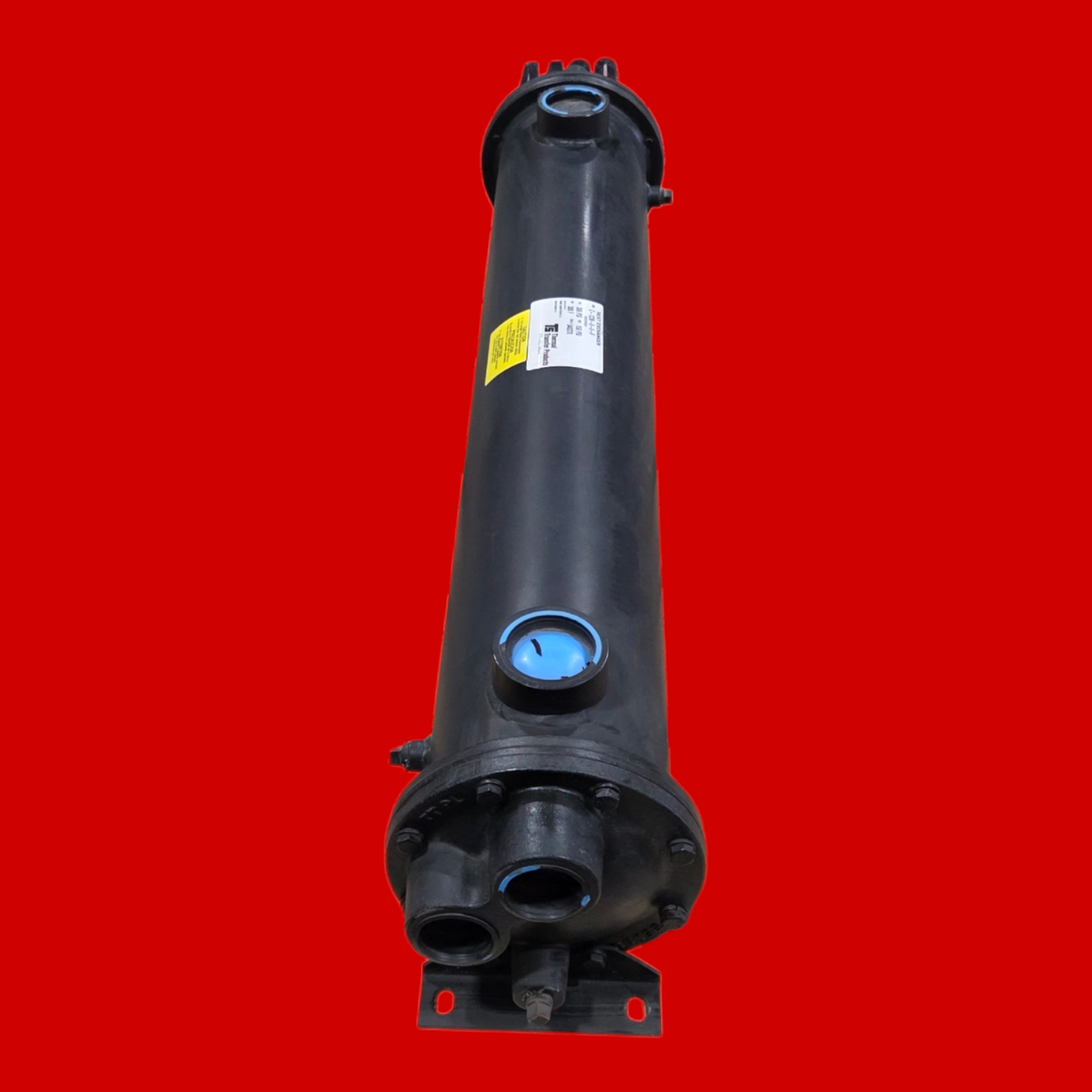

Thermal Transfer Products C-1236-6-6-F Heat Exchanger
PN: C-1236-6-6-F
This C-1236-6-6-F is a TTP C Series, the industry mainstay of shell and tube fluid cooling spanning several decades. This cost-effective, rugged 4-pass heat exchanger offers reliable heat transfer for a variety of industrial cooling applications including but not limited to: water, hydraulic oil, and compressed air. The fixed tubesheet design is also a common interchange for BASCO series units. P/N C-1236-6-6-F comes standard with a 6-inch diameter steel shell, 0.375-inch Copper tubes, Steel tubesheet with Cast Iron end bonnets. This unit has a maximum working shell pressure of 300 PSI, tube pressure of 150 PSI, and maximum operating temperature of 300F. The C Series unit is available with optional corrosion resistant materials such as 90/10 copper nickel (CuNi) tubing, bronze bonnets, and zinc anodes, as well as partial or all 316 Stainless Steel construction.
Overview
- Part Number: C-1236-6-6-F
- Series: C
- Brand: Thermal Transfer / TTP
Configuration & Size
- Size: 6" Diameter Shell x 36" Tube Length
- Connections: 2" NPT
- Baffle Spacing: 6" Baffles
- Cooling Tube Diameter: 0.375" Tubing
- Tube Side Passes: Four Pass
Materials of Construction
- Tubes: Copper
- Tubesheet: Steel
- Shell: Steel
- End Bonnets: Cast Iron
- Nameplate: Aluminum
Max Rating
- Shell Pressure: 300 PSI
- Tube Side Pressure: 150 PSI
- Temperature: 300F
