Product Description

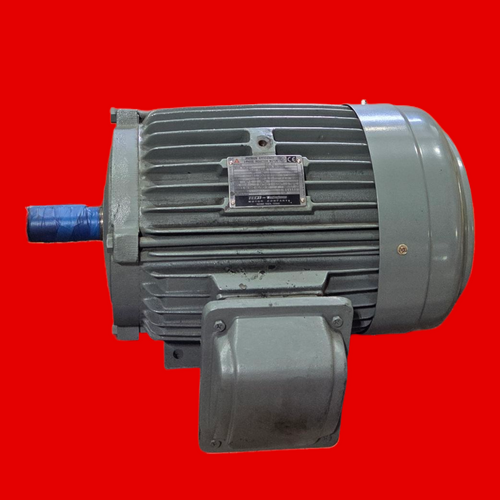

TECO Westinghouse N0034 Type AEEANE012 MAX-SE 3-Phase Induction Motor, 3 HP, 4 Poles, 1760 RPM, 182T Frame
PN: N0034
Applications
- Fans & Blowers
- Compressors
- Pumps
- Mixers
- Crushers
- Conveyors
Features
- Totally Enclosed Fan Cooled (IP54 Rating)
- Meets or Exceeds EPACT Efficiency Levels
- 60 Hz - 230/460V (Usable on 208V)
- 1.15 Service Factor – Continuous
- Class F Insulation with Phenolic Alkyd Resin Varnish
- Class B Temperature Rise
- Oversized Main Conduit Box Rotatable in 90 Degree Increments – Fully Gasketed with NPT Threaded Entrance
Specifications
- Output: 3 HP, 2.2 KW
- Poles: 4
- INS: F
- HZ: 60
- Phase: 3
- Volts: 230/460
- Amps: 7.78/3.89
- RPM: 1760
- Design: B
- AMB: 40°C
