Product Description

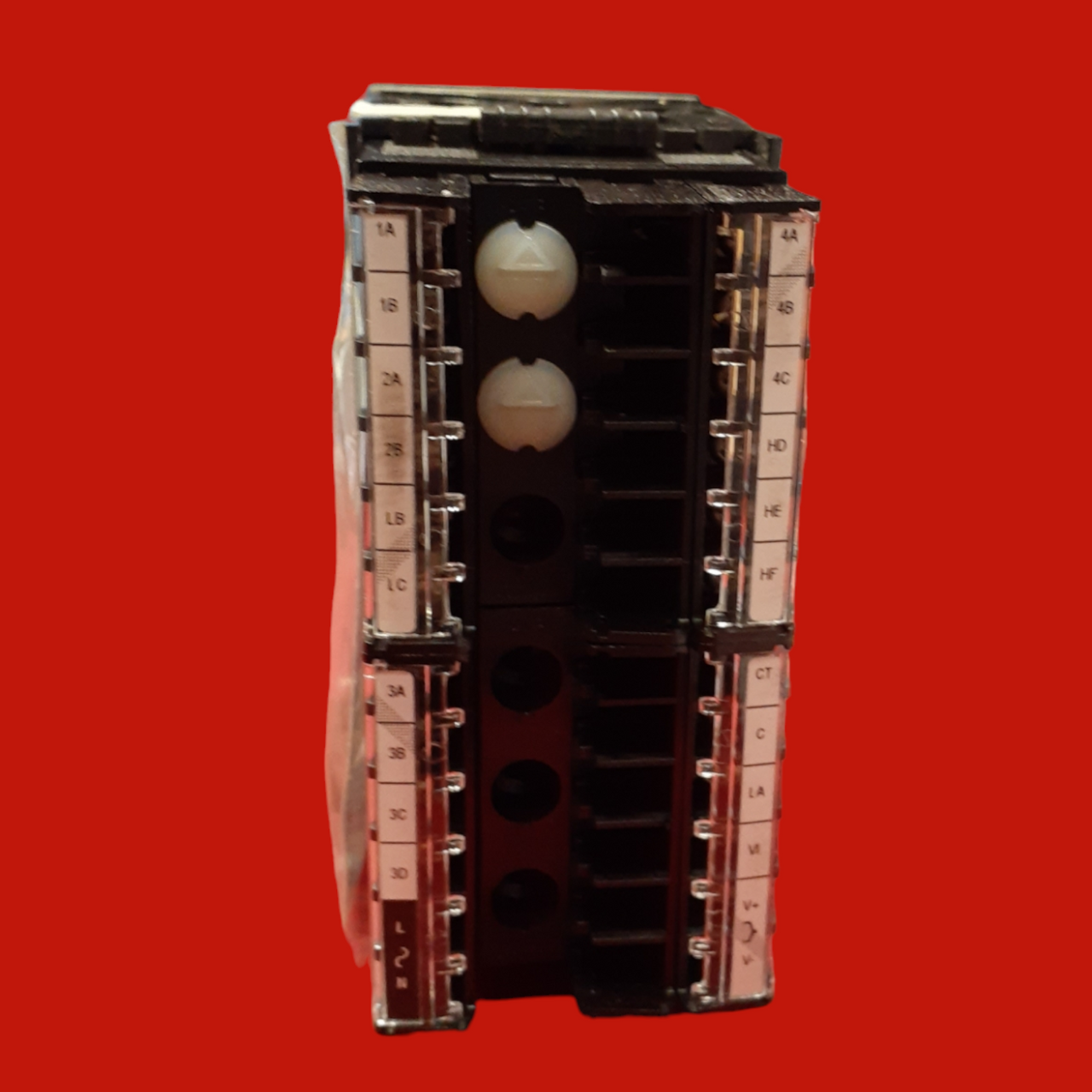

Super Systems SSI 808, 31343 Series 8 Controller
PN: 31343
The Super Systems SSI 808, 31343 Series 8 Controller is a high limit controller and temperature controller that is used in many thermal processing and indicating applications. It is part of Super Systems' affordable line of process and high limit controllers.
SSI’s affordable line of process and high limit controllers. Used for many thermal processing and indicating applications. Universal inputs with relays and analog outputs allowing for versatility and a wide range of monitoring or controlling applications.
Features and Benefits:
• Built-In Timers
• Configurable Alarms: High, Low, Deviation, Band, Timer Complete
• Auto-Tuning, Smart Tuning
• Modbus 485 Comms
• 3 Configurable Relay Outputs
• 4-20mA Output (Models 804, 808)
• 24 V transmitter/supply (Models 804, 808)
• FM Approved, UL Listed, & CE Marked
• Designed to combine temperature and timer operation for a temper/draw furnace
• Easy-to-use logic inputs for push button operation of timer
• Automatically download set point and time from SCADA software
• Calibration Accuracy: <±0.25% of reading ±1LSD
• Thermocouple Types: K,J,N,R,S,B,L,T,C Custom, RTD, and linear mV & mA
