Product Description
SSI Super Systems 9130 Temperature Controller, 5.7 HMI
P/N: 13579

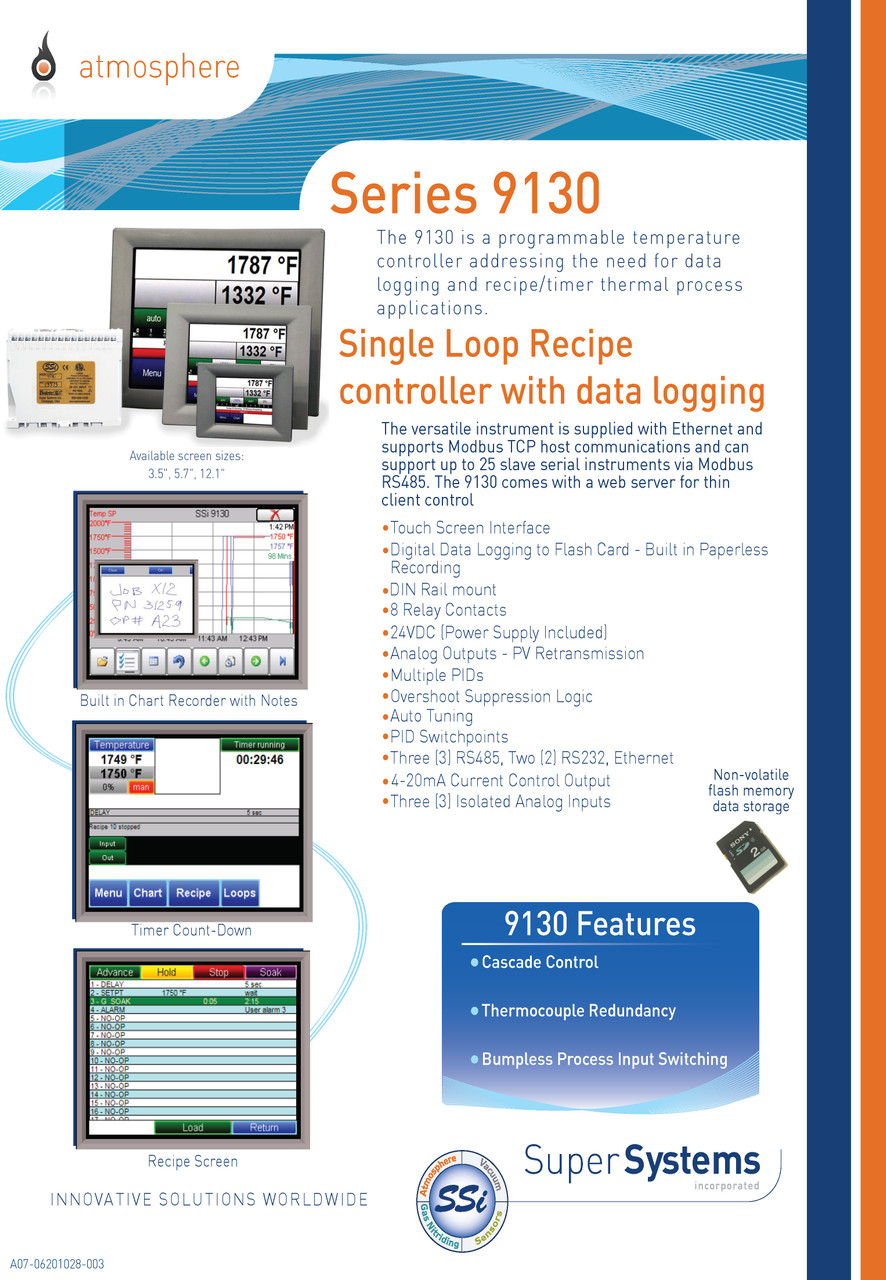

Series 9130 Temperature Controller and Timer (P/N 13577)
Advantech 5.7" HMI (P/N 31297)
Video Recorder/Data logger
Controller Inputs and outputs include:
- Inputs, Furnace T/C, Sensor millivolts and sensor T/C
- Two 4-20mA Outputs
- Eight (4) assignable relays
- Four Discrete Inputs
Ancillary equipment and software includes:
- One 24VDC Power Supply (P/N 31135)
- Eight (8) 24VDC isolation relays(P/N 32123) with sockets(P/N 32117)
- Utility Software (P/N 31673),
-SD Card (P/N 31604), Card Reader (P/N 13333)
Controller features include:
- Ethernet, RS-232, (2) RS-485
- Mouse and Keyboard connections
Features
| Touch Screen Interface |
| Digital Data Logging for Flash Card - Built-in Paperless Recording |
| 300 24-Step Recipes |
| DIN Rail Mount |
| 4 Relay Contacts |
| 24VDC (Power Supply Included) |
| Analog Outputs - PV Retransmission |
| Multiple PIDs |
| Overshoot Suppression Logic |
| Auto Tuning |
| Three (3) RS485, Two (2) RS232, Ethernet |
| 4-20mA Current Control Output |
| Three (3) Isolated Inputs |
Timer Options
| Timer options allow for configuration for flexible management of process control |
|---|
Configurable start modes
|
Configurable control modes
|
| User configured acknowledgement |
Digital input control
|
