Product Description

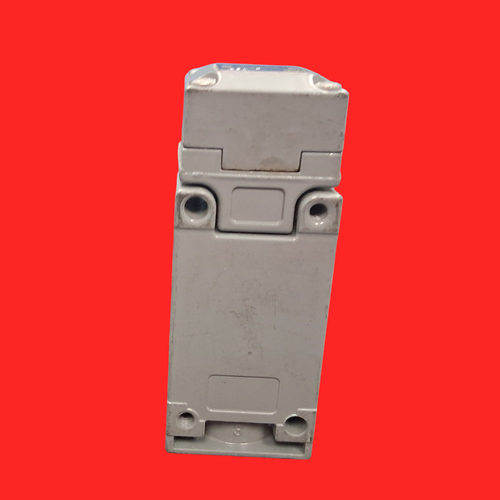

Square D 9007C54B2 Rotary Heavy Duty Limit Switch
PN: 9007C54B2
Product Details
Heavy duty limit switch features a rotary head actuator and screw-terminal connectors. It also features zinc body construction and is oiltight for efficient operation.
Technical Specs
- Limit Switch StyleHeavy Duty Limit Switch
- Basic Actuator Style - Limit SwitchRotary
- Actuator Style - Limit SwitchRotary, No Lever
- Actuator Location - Limit SwitchSide
- AC Contact Rating - Limit Switch10A @ 600V
- DC Contact Rating - Limit Switch10A @ 600V
- Contact Form- Switches1NC/1NO
- Body Height - Limit Switch2.50"
- Body Width - Limit Switch0.83"
- Body Depth - Limit Switch1.14"
- Boot Sealed Actuator - Limit SwitchNo
- Mounting - Limit SwitchSurface
- Body Style - Limit SwitchMiniature
- NEMA Rating1, 2, 4, 6, 6P, 12, 13
- Wiring Entry1/2" NPT
- Electrical ConnectionScrew Terminals
- IP Rating67
- MovementCW, CCW
- TravelTotal Travel 90 Degrees
- Series9007C
- Operating Temp. Range-20 Degrees to 185 Degrees F
- Mounting Hole Pattern - Limit Switch2 Hole Diagonal
- Mounting Hole Spacing - Limit Switch2.35" x 1.17"
- Mounting Hole - Limit Switch(2) 0.20" dia.
- Stem Thread - Limit SwitchNo Stem
- Body MaterialZinc
- Operating Force4.00 in.-lb
- StandardsUL, CSA, CE
