Product Description

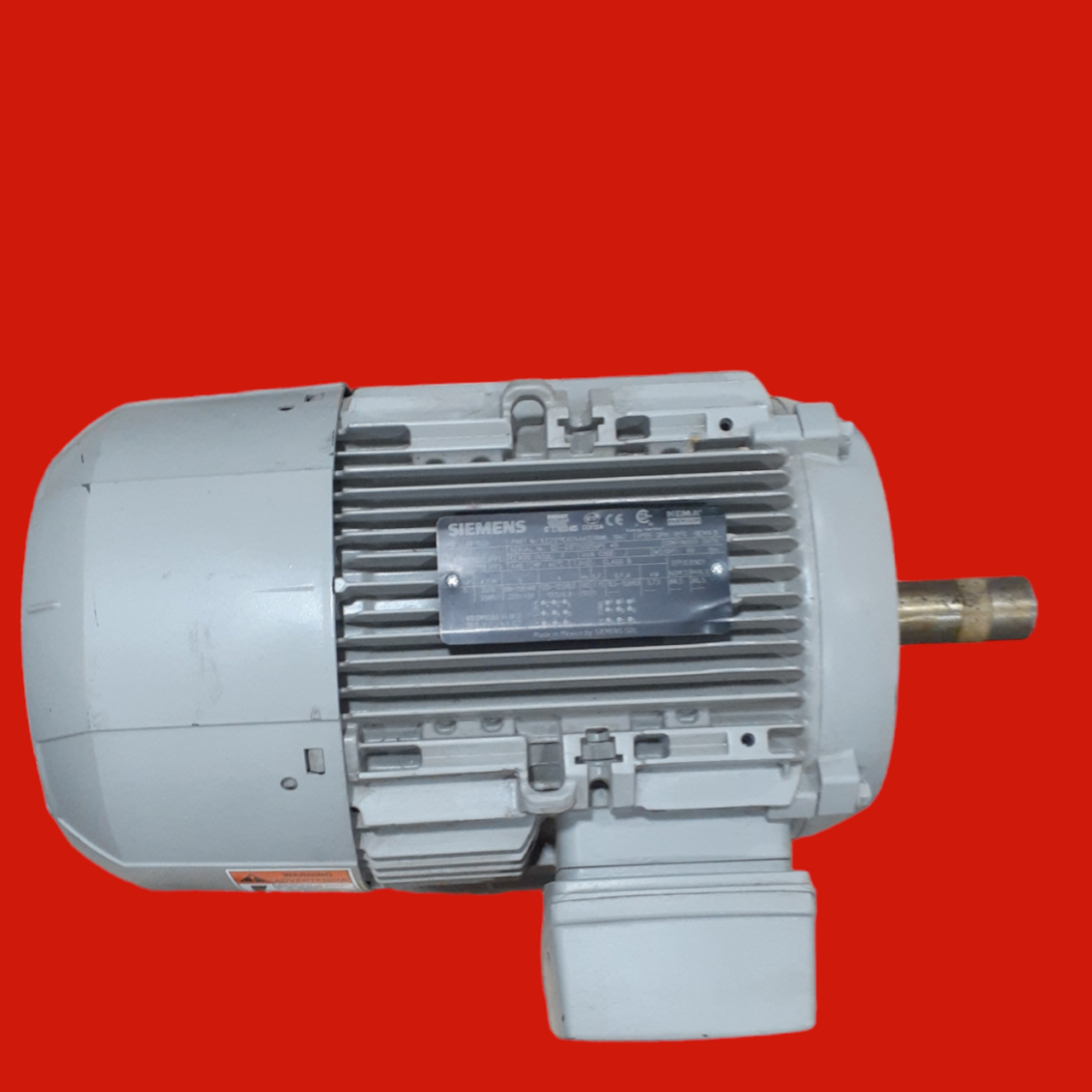

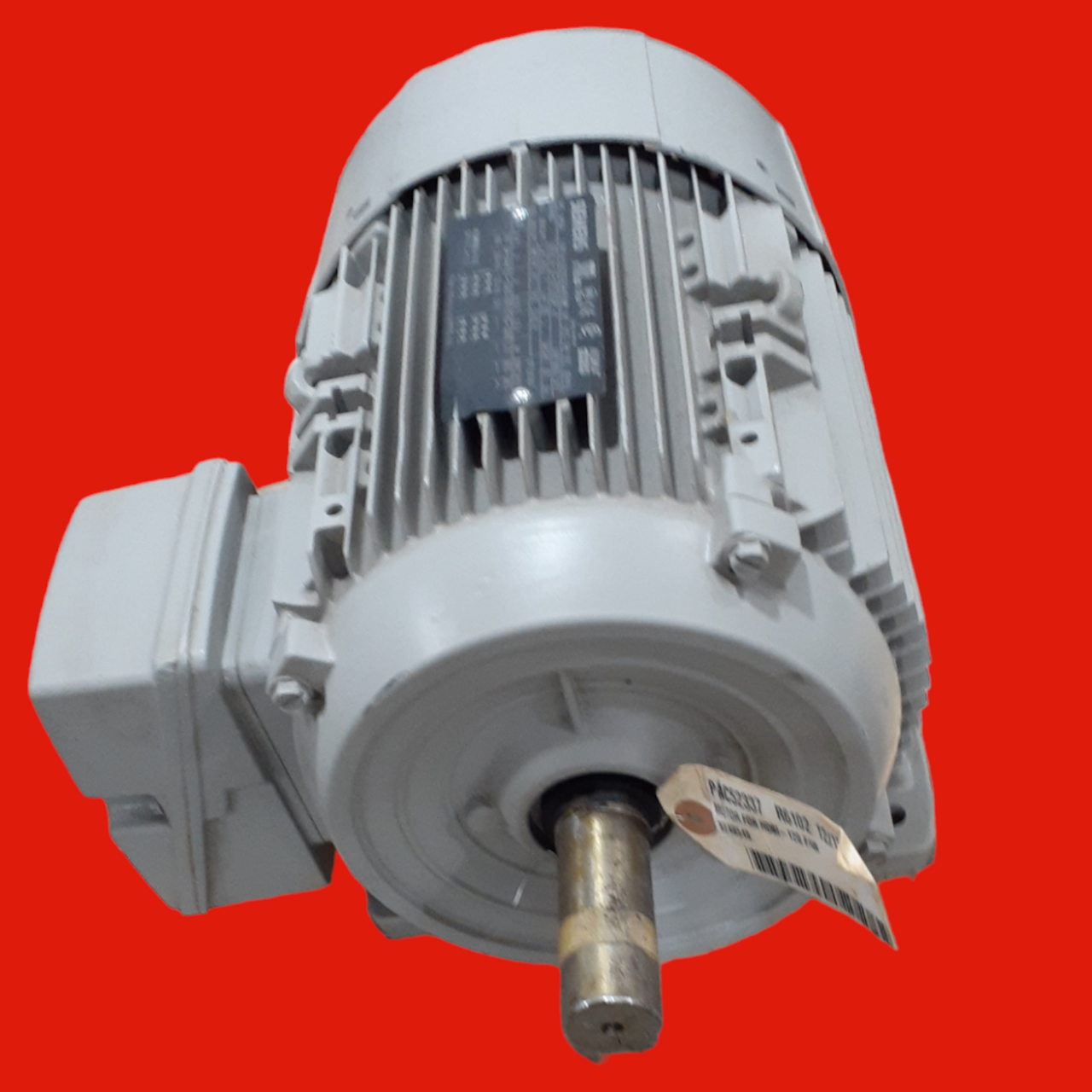

Siemens 1LE21211CA314AA3 General Purpose 5 HP Motor
PN: 1LE21211CA314AA3
- Enclosure: TEFC
- HP: 5
- Pole: 2
- RPM: 3600
- Frame: 184T
- Category: General Purpose
- KW: 3.73
- Motor Standards: NEMA
- Motor Type: AC Motor
- Phase: 3
- Hertz: 60
- Efficiency: Premium Efficient
- Enclosure: TEFC
- HP: 5
- Pole: 2
- RPM: 3600
- Frame: 184T
- Full Load Amps: 6
- Weight: 67
- Duty: S1
- Insulation Class: Class F
- Ambient Teperature: 40C
- Service Factor: 1.15
- Temperature Rise: Class B @ 1.0SF/Class F @ 1.15SF
- Ingress Protection: IP54
- Rotor: Die Cast Aluminum
- Frame Material: Aluminum
- Paint: Alkyd Modified - RAL7030
- Nameplate: Aluminum Engraved
- Nema Standards: NEMA MG1 Part 3
- KW: 3.73
