Product Description

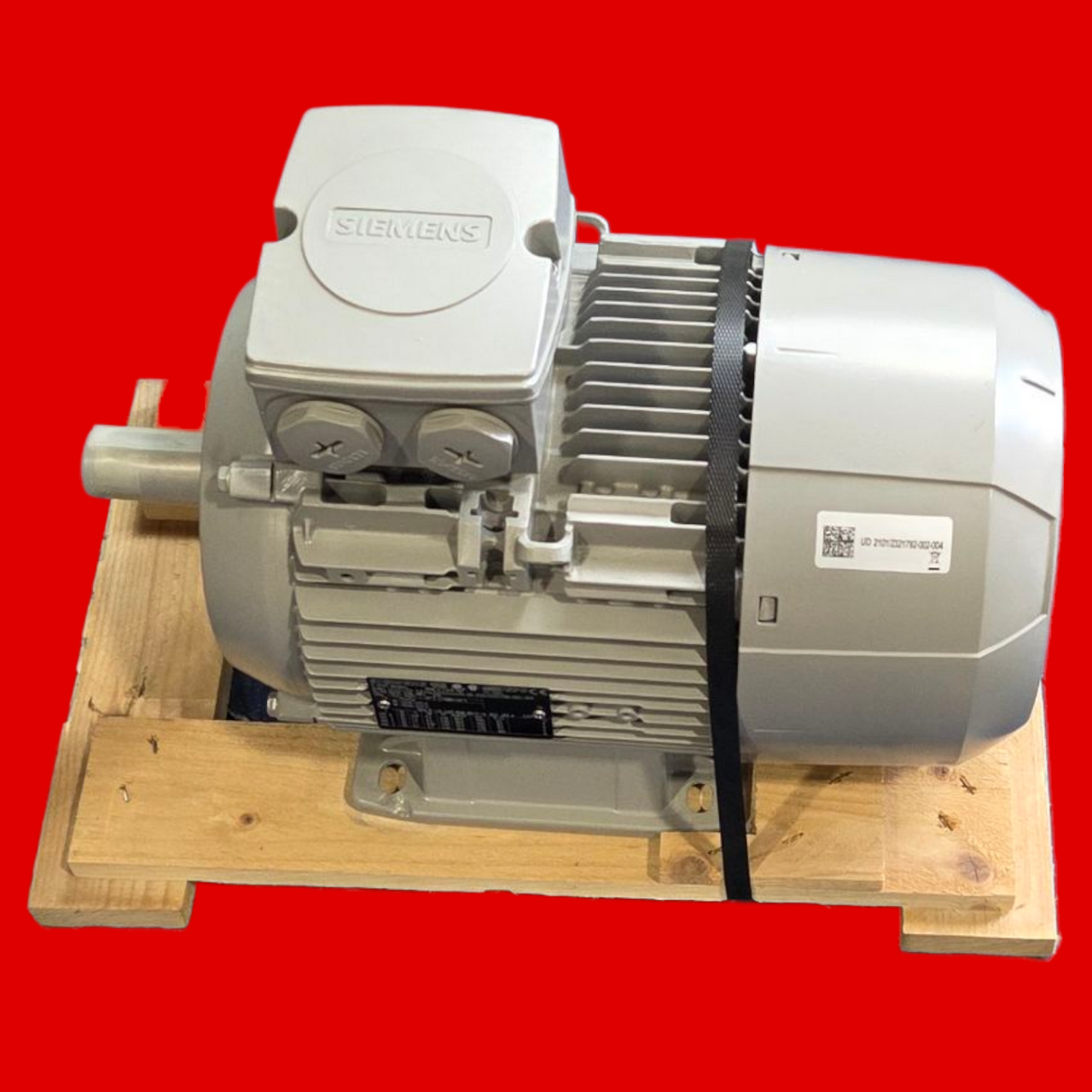

Siemens 1LE10231BB222FA4 SIMOTICS GP Low Voltage Motor, Type 1AV3112B, FR 112M, 4 Pole, 1770 RPM, 460V AC
PN: 1LE10231BB222FA4
- Product Type: SIMOTICS GP Motor, Type 1AV3112B
- Motor Type: Low-voltage, IEC Squirrel-cage rotor, Self-ventilated
- Power Output: 4 kW (50 Hz) or 5 HP / 4.55 kW (60 Hz)
- Voltage: 460 V AC (at 60 Hz)
- Frequency: 50/60 Hz
- Poles: 4-pole
- RPM: 1770 - 1800 RPM (at 60 Hz)
- Efficiency Class: IE3, NEMA Premium Efficient
- Frame Size: 112M
- Protection Rating: IP55
- Enclosure Material: Aluminum
- Mounting: B5 Flange (Flange FF215)
- Shaft Diameter: 28 mm
- Terminal Box Position: Top
