Product Description

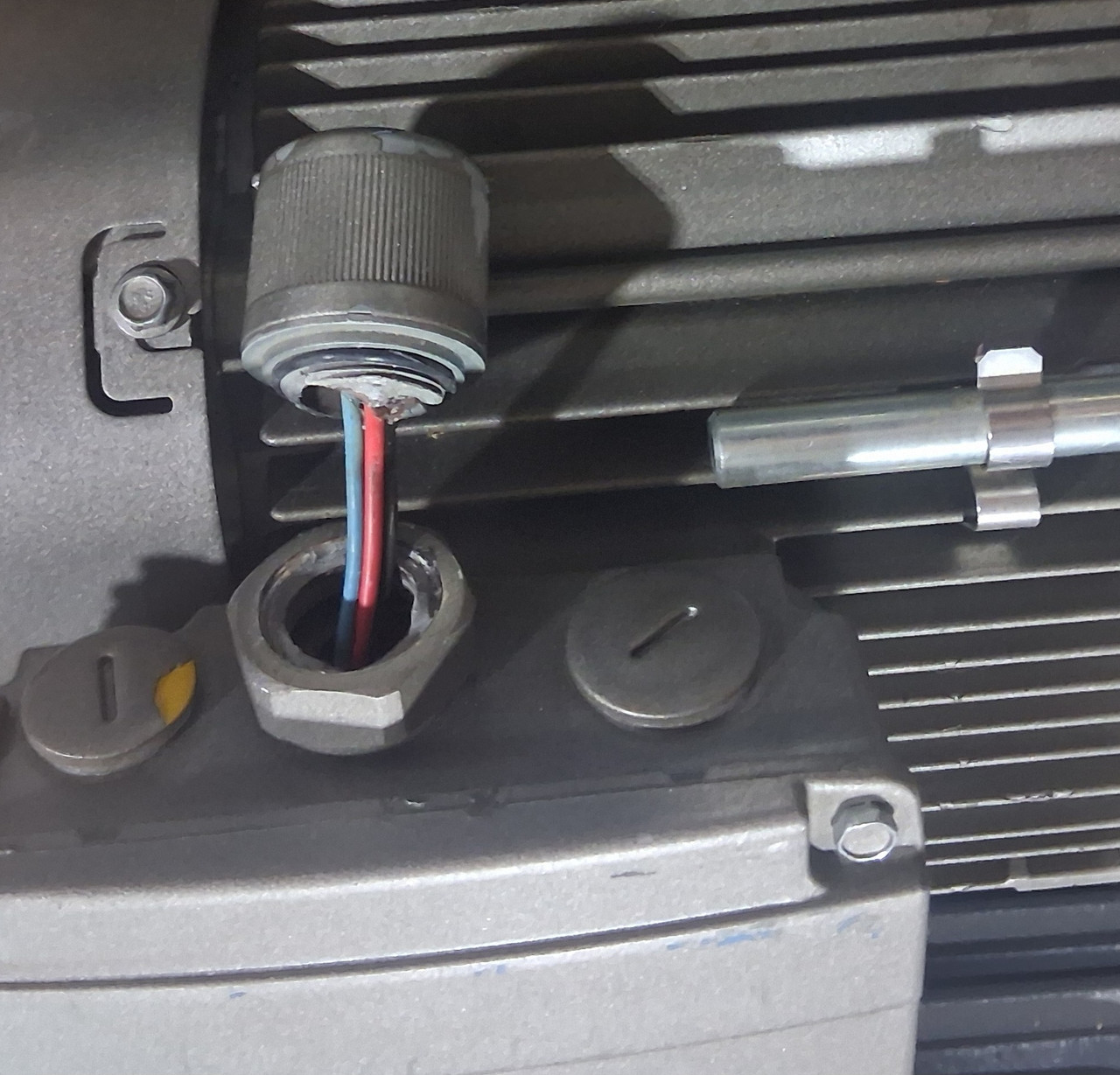

SEW- Eurodrive DRN132S4/BE11HR/FG Gear Motor
PN: DRN132S4/BE11HR/FG
- Rated motor speed: 1768 rpm
- Mounting position: M1
- Terminal box position: [°] 0 °
- Cable entry position: X
- Output shaft: Pinion Pin 22 mm
- Design type: Integral motor
- Flange diameter: 350 mm
- Flange: FG300 D350
- Motor power: 7.5 HP
- Duration factor: S1-100%
- Efficiency class: IE3
- Efficiency: (50/75/100% Pn) 90.9 / 91.8 / 91.7 %
- CE mark: No
- Motor voltage: 230/460 V
- Connection type: double star/star
- Wiring diagram: R76
- Frequency: 60 Hz
- Rated current: 19.2 / 9.6 A
- Cos Phi: 0.78
- Thermal class: 155(F)
- Motor protection type: IP54
- Design requirement: USA (UR) / Canada (CSA)
- Mass moments of inertia (referring to the input side): 0.5963 lb-ft2
- Selected gear head unit: FA107
- Selected gear unit ratio: 7.4
- Net weight: 155 Lb
- Braking torque: 708 lb-in
- Brake voltage: 230 V
- Brake control: BGE1.5
