Product Description

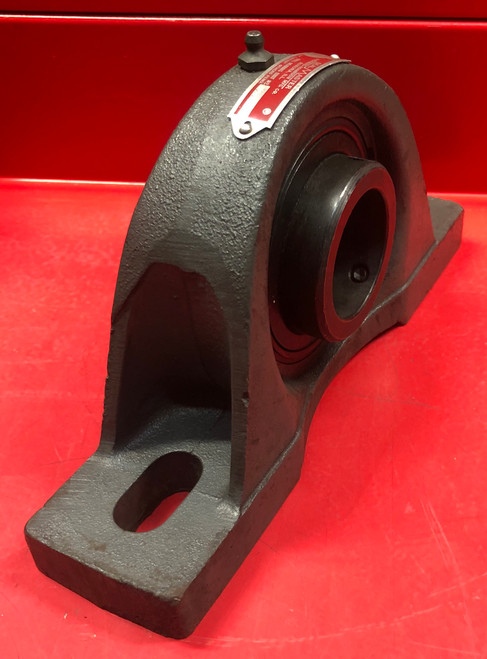

Sealmaster MP-31 Pillow Block Bearing, 1-15/16
PN: MP-31
- Base Width: 2.8750 in
- Base To Bore Centerline: 2.5000 in
- Bolt Center To Center Length: 5.9380 to 7.5630 in
- Bore Diameter: 1-15/16 in
- Bore Type: Round / Straight
- DUTY type: Medium Duty
- Expansion Type: Non-Expansion Bearing (Fixed)
- Finish Coating: Gray
- Height: 3.4
- Housing Material: Cast Iron
- Insert Material: 52100 Bearing Steel, Black Oxided
- Length: 10.8
- Locking Device: Set Screw
- Lubrication Type: Lithium Complex NLGI 2 Grease
- Max Operating Temperature: 220 °F
- Max Rpm: 3250 rpm
- Misalignment Angle: ±2.0° Misalignment - Static Only
- Mounting Type: 2-Bolt Base
- Overall Height: 5.0940 in
- Overall Length: 9.5000 in
- Overall Width: 1.2188 in
- Radial Dynamic Load Capacity: 9752 lbf
- Radial Static Load Capacity: 6601 lbf
- Seal Type: Felt Labyrinth Seal
- Type of Bearing: Ball Bearing
- Weight: 11.1, 11.6 lbs
- Width: 6.1
