Product Description

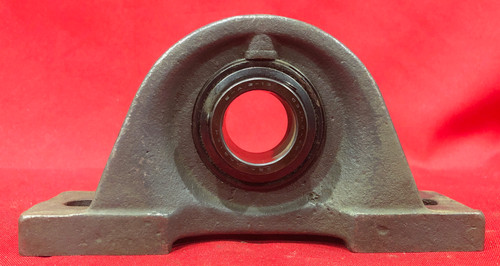

SealMaster MP-24 Pillow Block Ball Bearing Unit, 1-1/2" Bore
PN: MP-24
Overview
- Powder coated epoxy cast iron housing with extended inner ring bearings
- Zone hardened inner ring with 120° spacing setscrew locking with diamond faceted setscrews
- Unique land riding retainer design provides superior pocket clearance that allows for 360° grease circulation around the rolling elements resulting in better retained and utilized lubrication.
- Sealmaster® exclusive lock & pin dimple for direct lubrication and anti-rotation
Specifications
- Base Width: 2.6250 in
- Base To Bore Centerline: 2.9375 in
- Bolt Center To Center Length: 5.5000 to 6.7500 in
- Bolt Size: 0.6250 in
- Bore Diameter: 1-1/2 in
- Bore Type: Round / Straight
- Duty Type: Medium Duty
- Expansion Type: Non-Expansion Bearing (Fixed)
- Finish Coating: Gray
- Height: 3.1
- Housing Material: Cast Iron
- Insert Material: 52100 Bearing Steel, Black Oxided
- Length: 10.2
- Locking Device: Set Screw
- Lubrication Type: Lithium Complex NLGI 2 Grease
- Max Operating Temperature: 220 °F
- Max Rpm: 3800 rpm
- Misalignment Angle: ±2.0° Misalignment - Static Only
- Mounting Type: 2-Bolt Base
- Overall Height: 4.5630 in
- Overall Length: 8.7500 in
- Overall Width: 1.9375 in
- Radial Dynamic Load Capacity: 7901 lbf
- Radial Static Load Capacity: 5139 lbf
- Replacement Bearing: 3-18
- Seal Type: Felt Labyrinth Seal
- Series: Medium
- Product Type: Pillow Block Ball Bearing Units
- Type Of Bearing: Ball Bearing
- Weight: 8.4, 8.86 lbs
- Width: 5.5
