Product Description

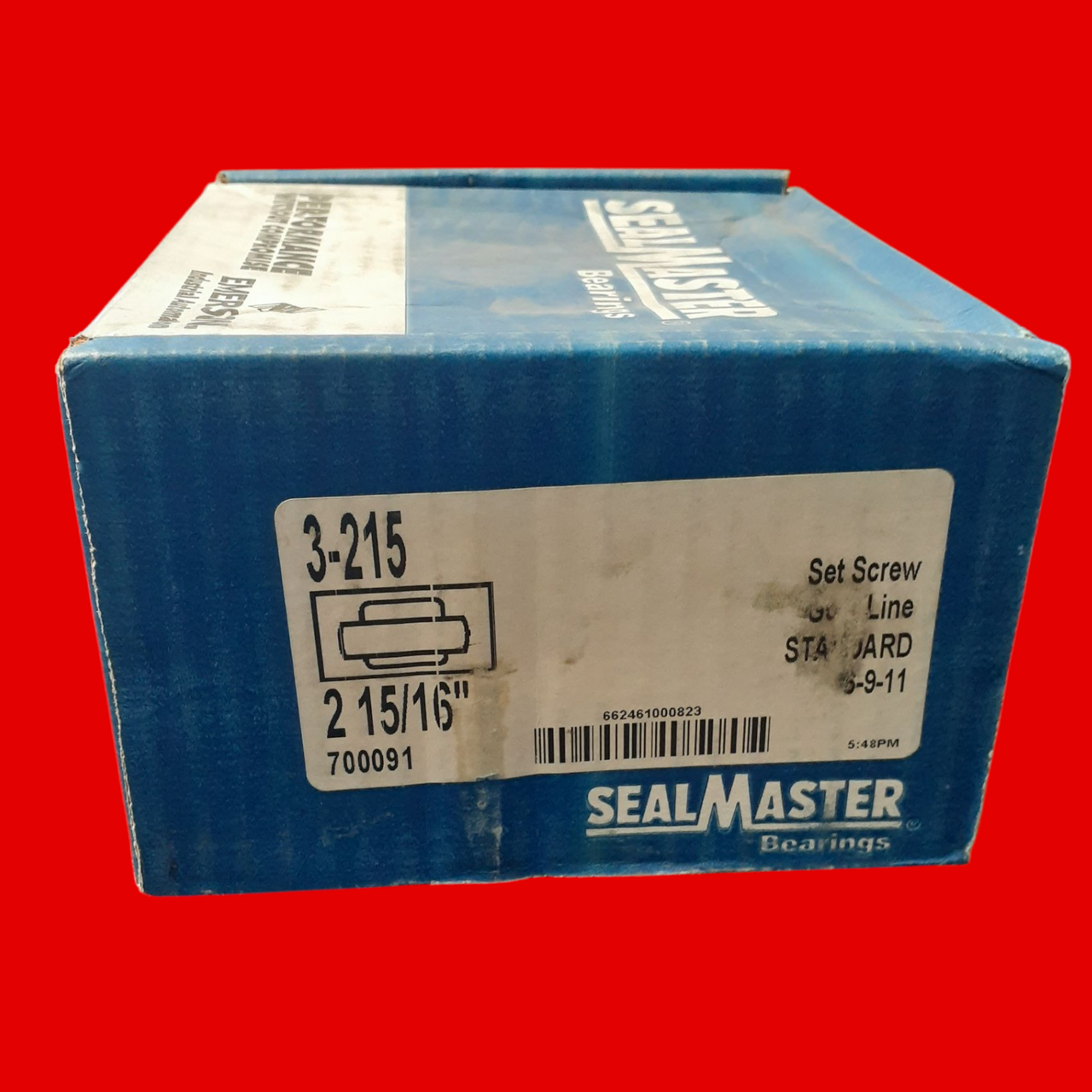

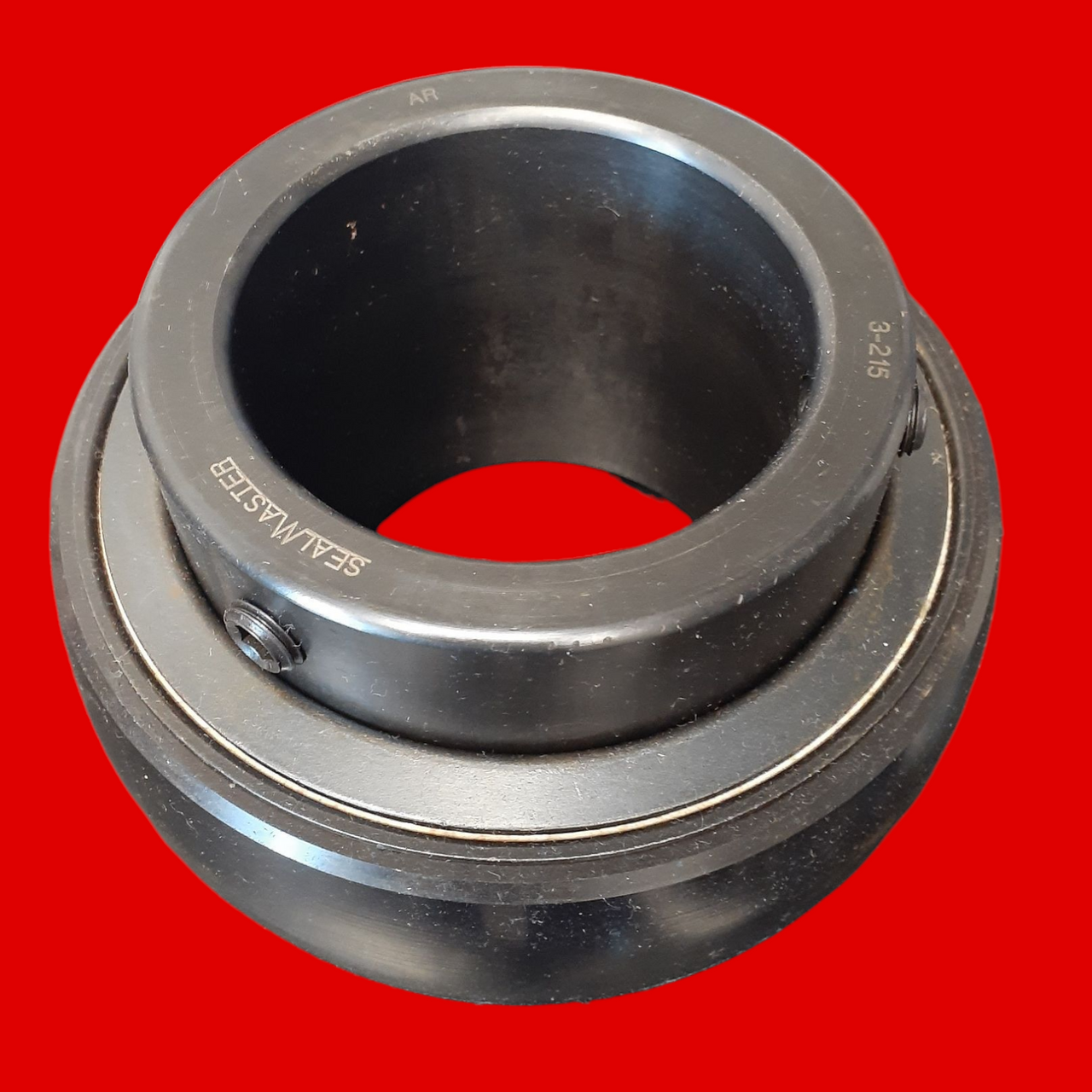

SealMaster Insert Bearing: 3-215, 2 15/16 in Bore
PN: 3-215
- Closure: Double Sealed
- Bearing Insert Type: Radial/Deep Groove Ball
- Shaft Locking Type: Set Screws
- Bore Diameter: 2-15/16 in
- Bore Diameter Tolerance: +0.0000/-0.0010 in
- Outside Diameter: 5-1/2 in
- Outer Ring Width: 1.688 in
- Inner Ring Outside Diameter: 3.641 in
- Inner Ring Width: 3.25 in
- Ring End to Center Width: 1.938 in
- Rolling Element Rows: 1
- Bearing Insert Shape: Spherical
- ABEC Rating: 1
- Seal Type: Contact
- Seal Material: Felt
- Load Direction: Radial
- Dynamic Radial Load Capacity: 17,412 lbf
- Static Radial Load Capacity: 13,174 lbf
- Lubrication Openings: Grease Fitting
- Lubricant Material: NLGI #2 Equivalent
- Finish: Black Oxide
- Ring Material: Alloy Steel
- Ring Material Grade: 52100
- Rolling Element Material: Alloy Steel
- Rolling Element Material Grade: 52100
- Cage Material: Brass
- Ball Material: Alloy Steel
- Ball Material Grade: 52100
- Maximum Temperature: 220 °F
- Minimum Temperature: -20 °F
