Product Description

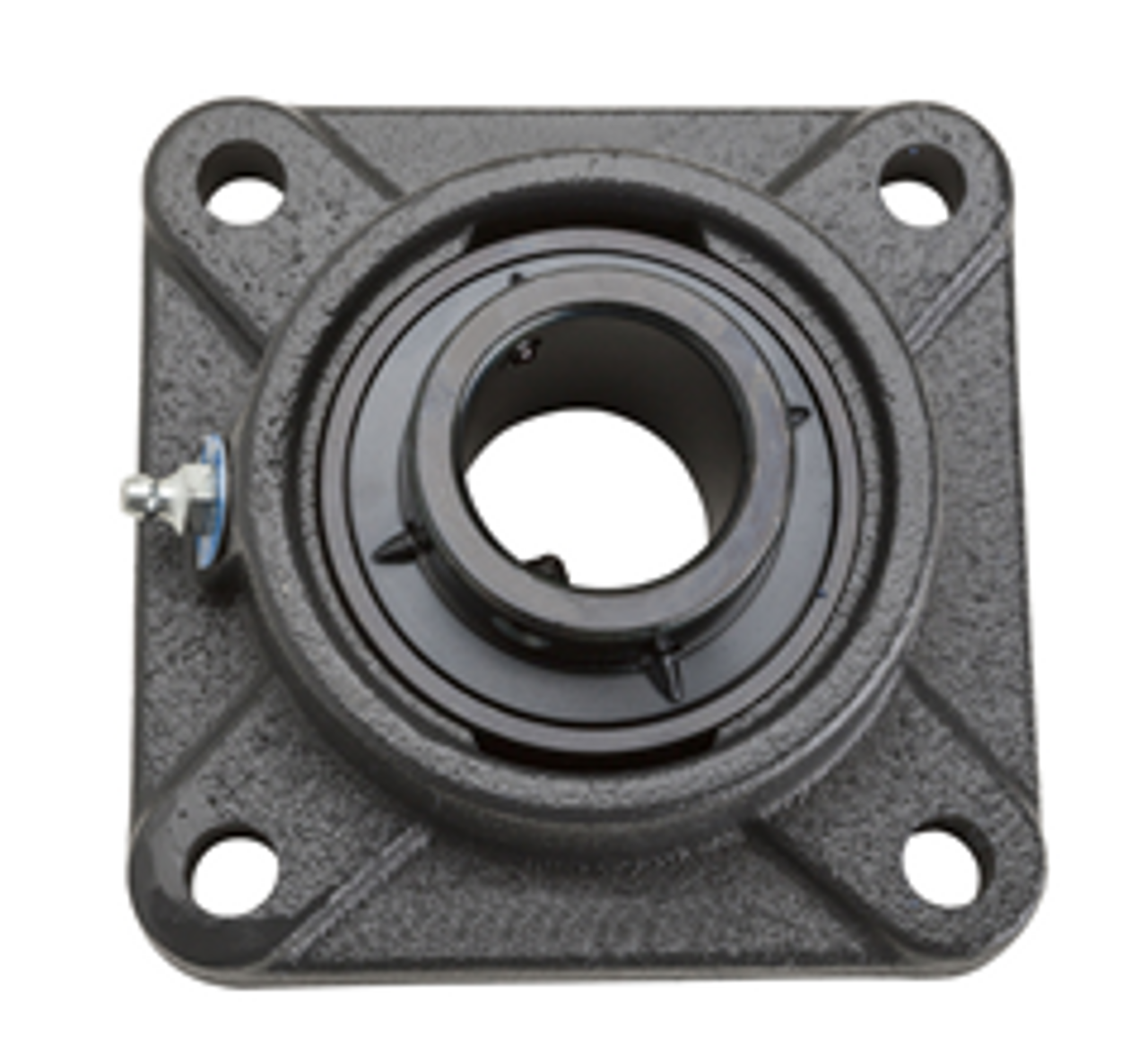

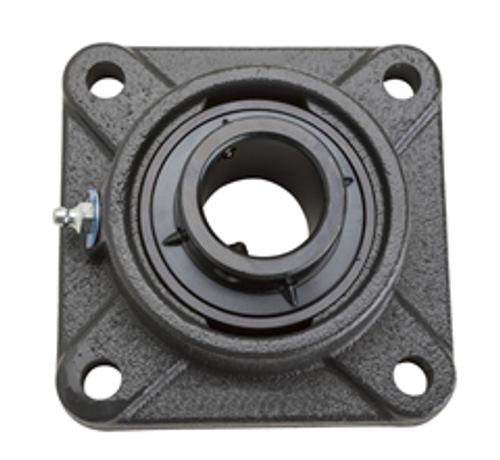

Rexnord F3S228E 1 3/4 Four Bolt Flange
- Housing Diameter: 4 5/16 in
- Distance Between Bolt Holes: 4 1/8 in
- Length Through Bore: 1 49/64 in
- Mounting Pad Width: 5 3/8 in
- Mounting Bolt Size: 9/16 in
- Bearing Standoff Distance: 1/8 in
- Mounting Flange Width: 9/16 in
- Distance from Mounting Surface to Inner Ring Long Hub Face: 1 29/32 in
- Housing Overall Circle Diameter: 7 3/32 in
- Distance from Housing Cast Face to Inner Ring Long Hub Face: 23/32 in
- Basic Dynamic Load Rating: 7370 lbf
- Basic Static Load Rating: 4590 lbf
- Grease Fitting Size: 1/8 in NPT
- Lubrication Type: Exxon Ronex MP
- Maximum Speed: 4000 rpm
- Maximum Temperature (°F (°C)): 225 (107)
- Replacement Insert: SG228ELPA
- Setscrew Torque (in-lbs): 165-185
- Shaft Diameter: 1 3/4 in
