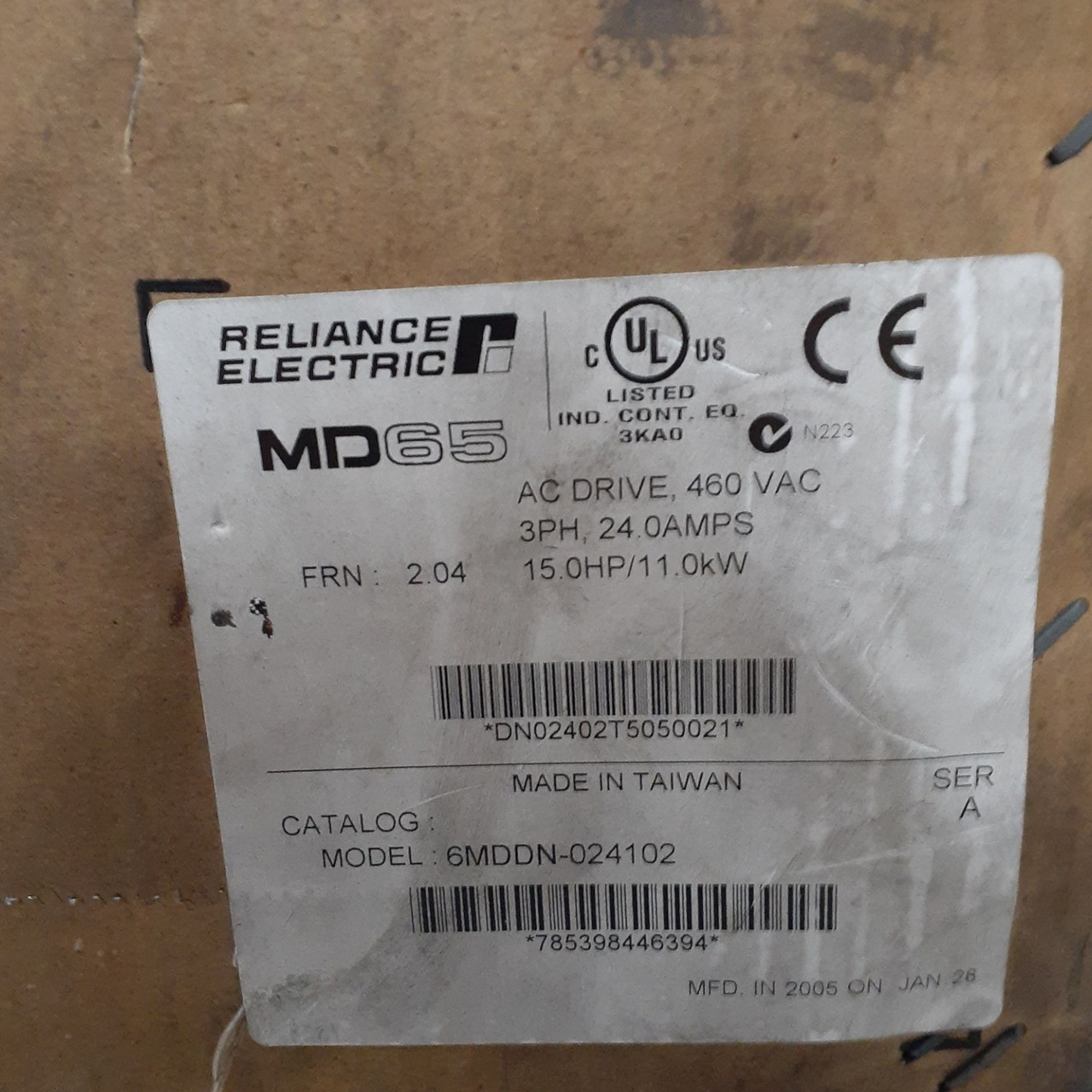

Reliance Electric 6MDDN-024102 MD65 AC Drive, 15HP, 3 PH, 460 VAC, 24 AMPS
PN: 6MDDN-024102

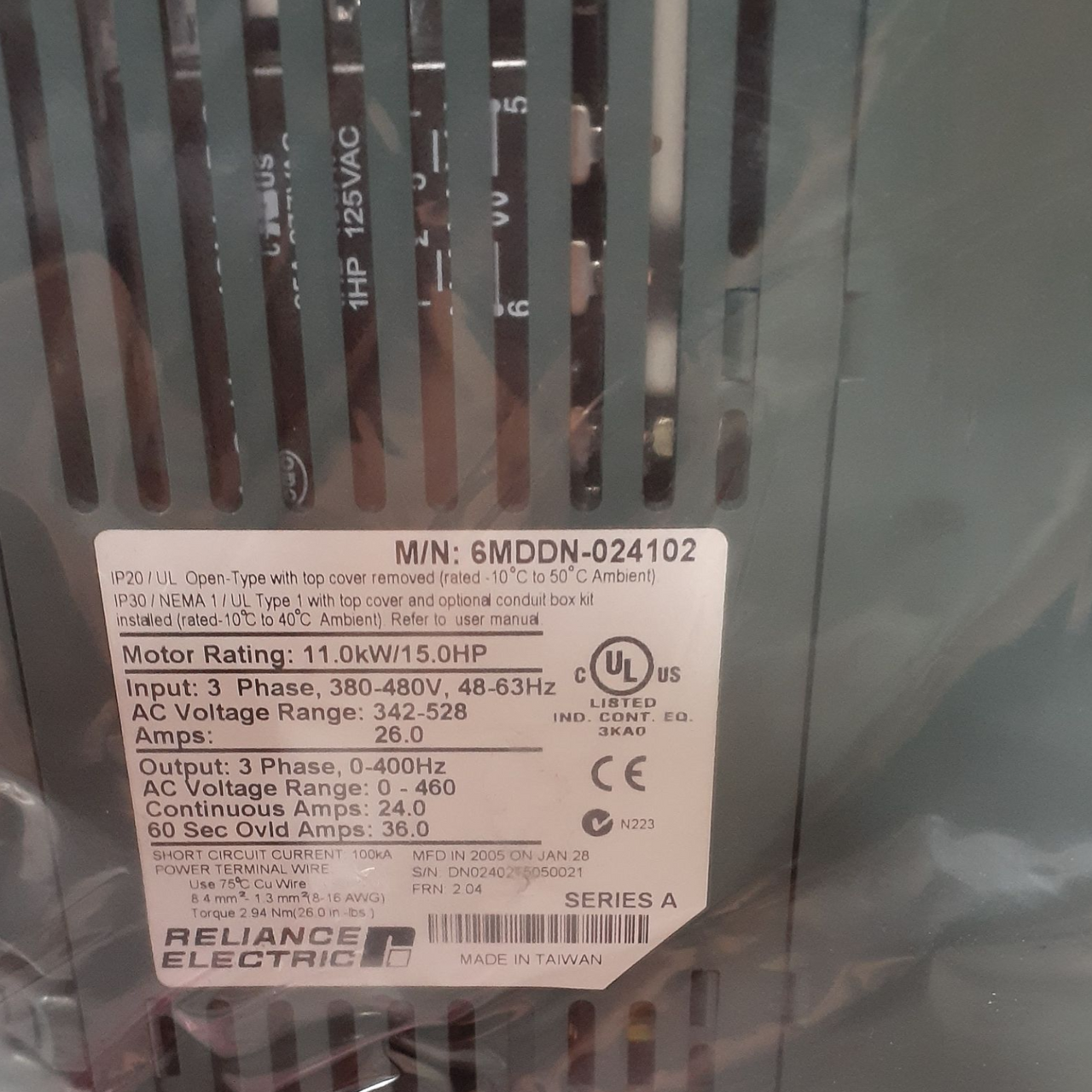

6MDDN-024102 is a 380-480 VAC 3-phase input, 0-460 V 3-phase output MD65 drive that is manufactured by Reliance Electric. This drive outputs 11.0 kW (15.0 HP) and 24.0 amps. The input voltage range is 340-528, the input kVA is 23.4, and the input amps are 26.0. The branch circuit protection is 50 for the fuses and 40 for the circuit breaker. The power dissipation is 285 watts. Protective features on the drive include over current protection, drive overload protection, output voltage on the DC bus, over temperature protection, output short circuit protection, ground fault protection, under voltage protection, and a 500 ms power loss ride through.
- HP 15HP
- Input Voltage 480 VAC
- Hz 50/60Hz
- kW 11.0kW
