Product Description

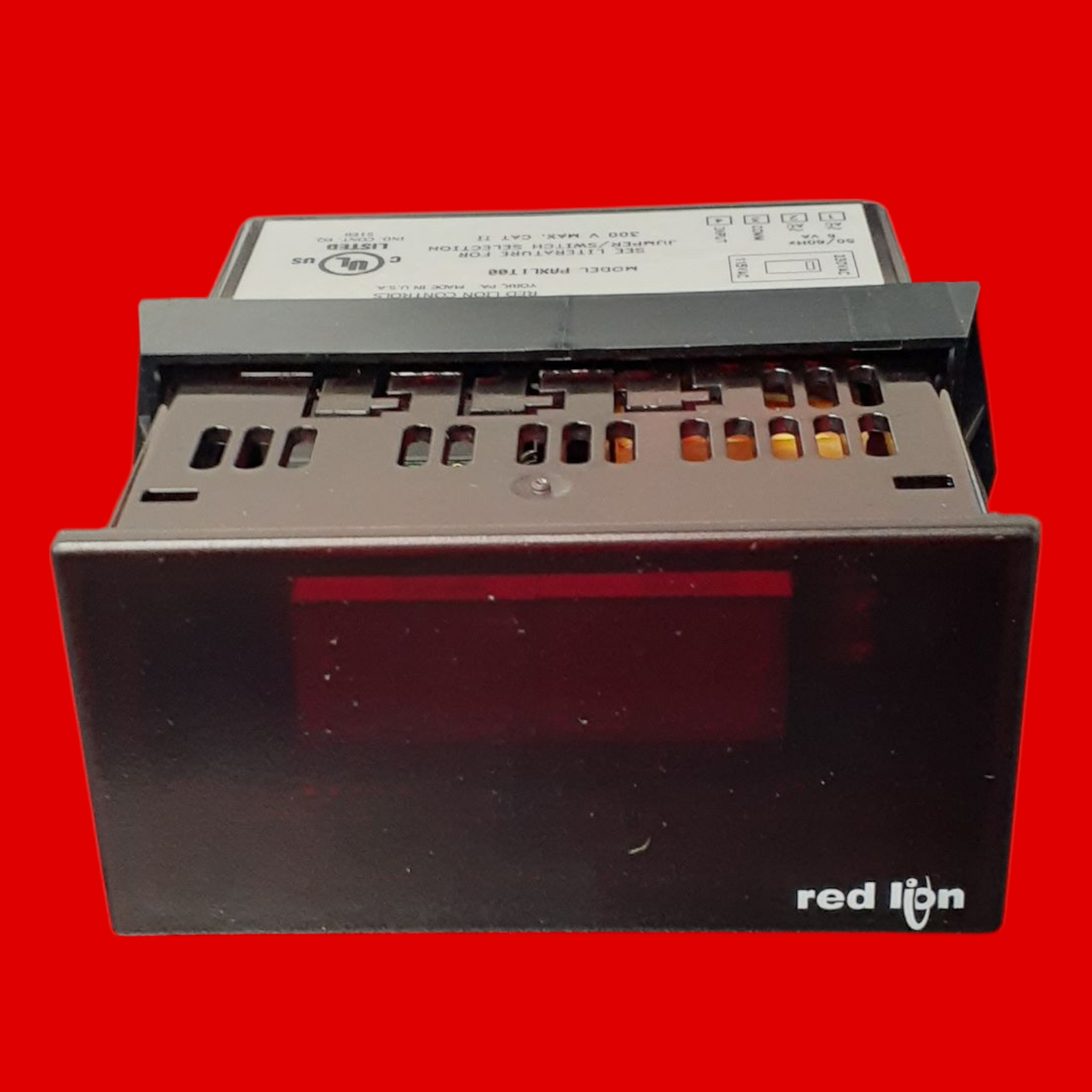

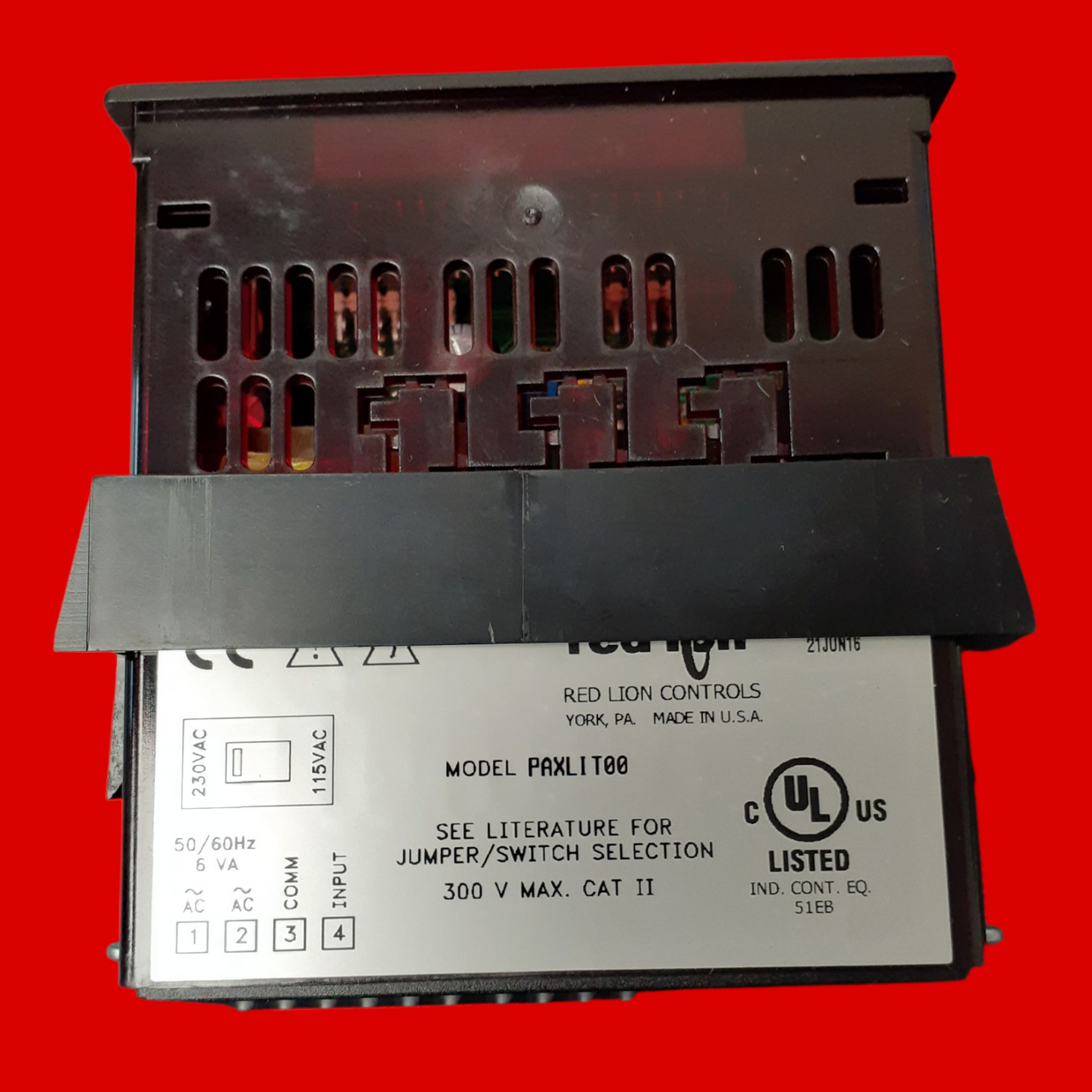

Red Lion Controls PAXLIT00 Panel Meter, Current, 1/8 DIN, 5-Digit, Red, LED, 0-5 Amp
PN: PAXLIT00
PAXLIT 5 Amp AC Current Meter provides the capability of measuring large AC currents. The internal current shunt in the PAXLIT can measure up to 5 Amps AC current directly. Using an external current transformer, AC currents of up to 1,999 Amps can be measured and displayed. The PAXLIT can be scaled, using the scaling potentiometer, to display between 200 and 1999 when measuring full scale current. Using the DIP switch selectable decimal points, the display can be customized for direct readout for practically any application. The 3 1/2-digit bi-polar display (minus sign displayed when current is negative) features a 0.56" high, 7-segment LEDs for easy reading. The meter is also available with custom units label capability. Using the PAX label kit (PAXLBK30), the selected label is installed behind the panel, keeping it safe from washdown or other environmental conditions. A DIP switch is used to control the backlight for the units label. The meters have a NEMA 4X/IP65 sealed bezel and extensive testing of noise effects to CE requirements, allowing the meter to provide a tough yet reliable application solution.
- Numeric ID: 4079255
- Number of Digits: 3.5
- Operating Temperature: 0 to 60 °C
- Measurement Range: 0 to 5 A
- Measuring Range: 0 to 5 A
- Meter Type: AC Current
- Maximum Opening Temperature: 60 °C
- Minimum Operating Temperature: 0 °C
- Supply Voltage: 115/230 VAC
- Special Features: Multi-Range Unit
- Temperature Range: 0 to 60 C
- Panel Cut Out: 3.62x1.77 "
- Primary Type: Electronic
- Weight: 0.65 lb
- Function: Ammeter
- Accuracy: +/-0.5% %
- Type: Electronic
- Dimensions: 0.20 in D
- Standards: cULus Listed, CE Marked
- Termination: Terminal Block
- Dimensions, Cutout, Inches: 91.4 W x 44.5 H mm
- Display Digit Height: 14.2 mm
- Display Resolution: 2.5 mA
- Display Type: LCD
- Connection Type: Cage-Clamp
