Product Description

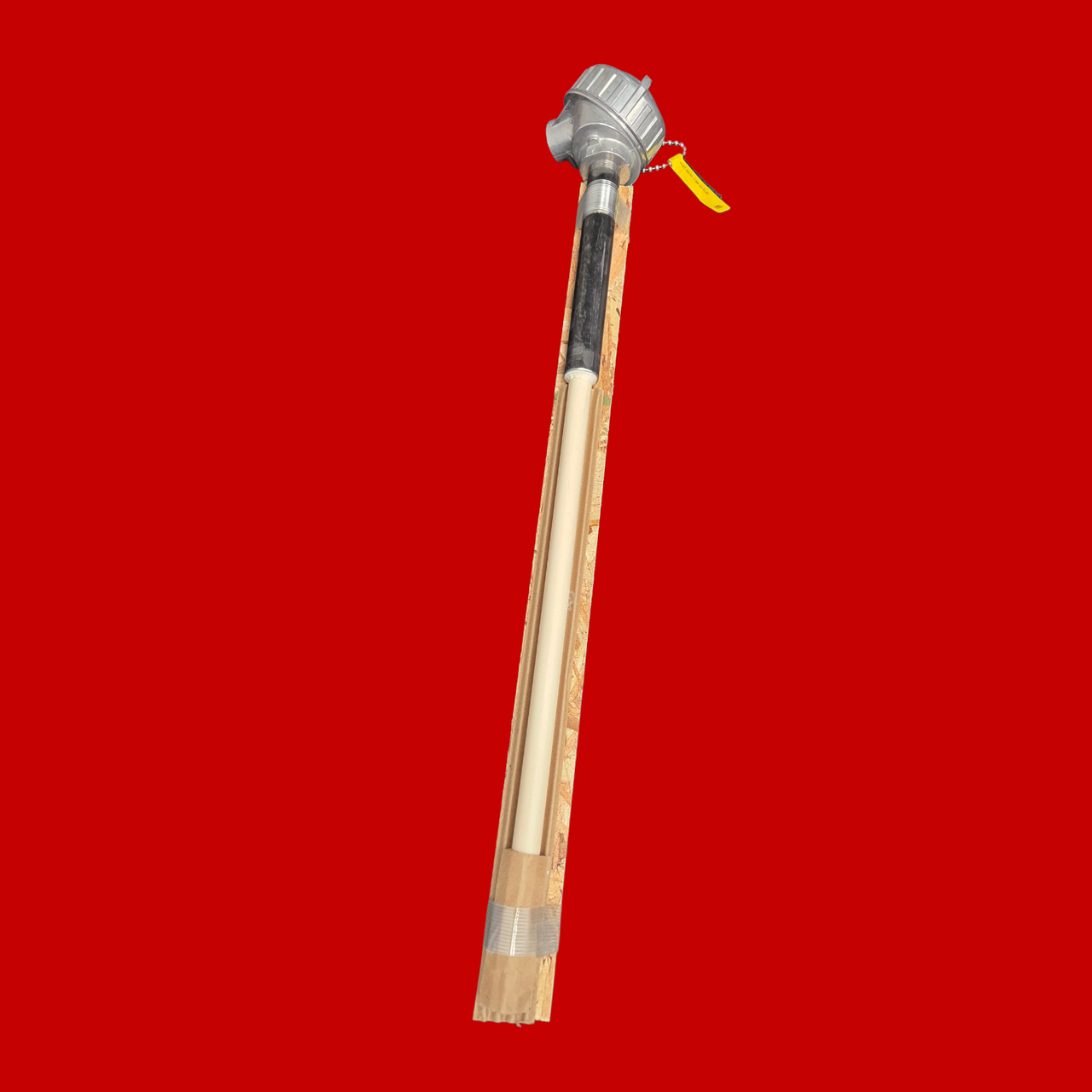

Pyromation SS2R-17B8-24-31,NT Type S Thermocouple Assembly with Ceramic Protection Tube, 24" Insertion Length
PN: SS2R-17B8-24-31,NT
Specifications
- SS2R: This indicates a Type S noble-metal thermocouple with a 24 gauge wire.
- 17B: This is likely a specific internal code related to the protection tube material/construction. Type S thermocouples generally require a non-metallic protection tube.
- 8: This code indicates a 316 Stainless Steel pipe nipple.
- 24: This specifies the "X" length or immersion length of the assembly as 24 inches.
- 31: This indicates an Aluminum screw-cover head for the termination point.
- ,NT: This is an option code that signifies "No process threads" on the pipe nipple.
Key Characteristics
- Sensor Type: Type S Thermocouple (Platinum/Platinum (10% Rhodium) alloy combination).
- Wire Gauge: 24 gauge.
- Protection: Designed with double protection tubes
- Operating Range: Type S thermocouples are recommended for high-temperature applications, typically from (538 to 1481) °C [1000 to 2700] °F.
- Mounting: Features a 316 Stainless Steel fitting with no process threads.

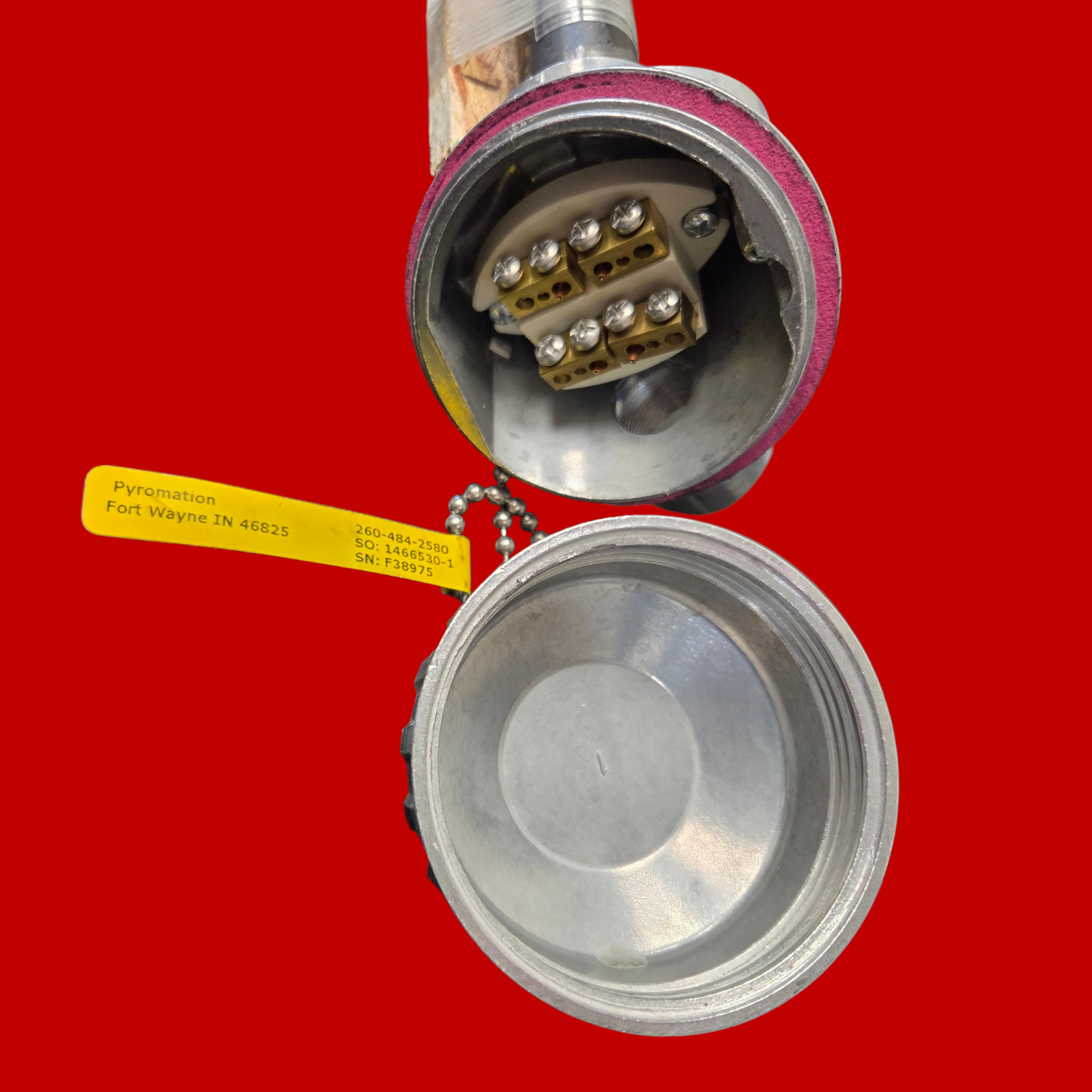

- Termination Head: An aluminum screw-cover head provides the wiring enclosure.
