Product Description
Pyromation S24R-17B4-24-49, NT Type S Thermocouple Assembly with Ceramic Protection Tube, 24" Insertion Length
PN: S24R-17B4-24-49
- Thermocouple Type: Type S (Platinum - Platinum 10% Rhodium), 24 AWG wire gauge.
- Protection Tube: Series 17 (99.7% alumina ceramic), offering excellent gas-tight properties and high-temperature resistance up to 1871 ºC (3400 ºF). The "B" indicates an 11/16" outer diameter tube.
- Length: 24 inches

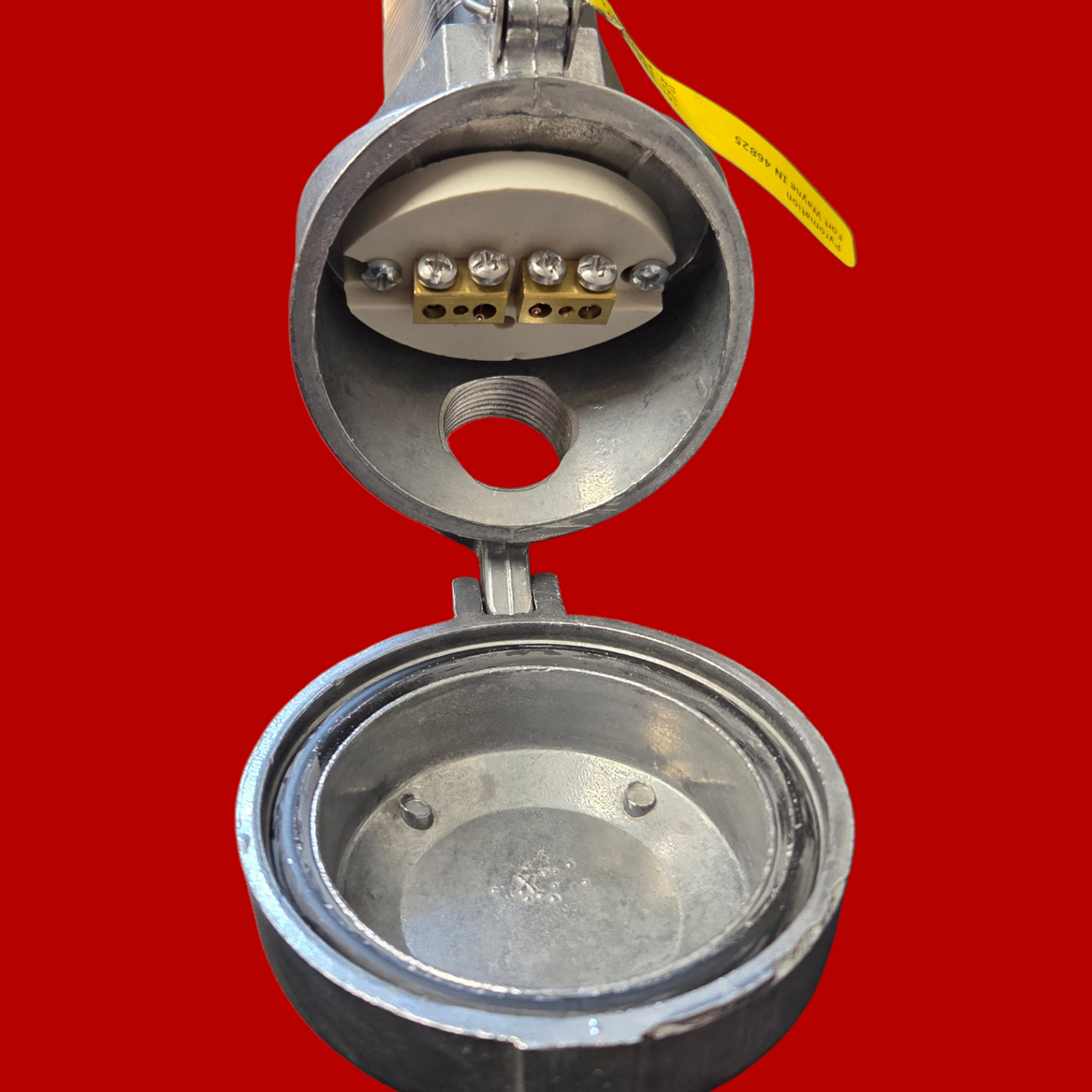

- Termination Head: Code 49 specifies a flip-top aluminum connection head.
- Mounting: The NT option means the assembly is supplied without threads for process mounting on the pipe nipple.
- Internal Construction: Features a ceramic inner tube, with the elements supplied with ungrounded, isolated hot junctions. The element uses round 99.7% alumina insulators.
- Application: Primarily used in high-temperature environments such as vacuum furnaces, incinerators, and general industrial process heating applications.
