Product Description

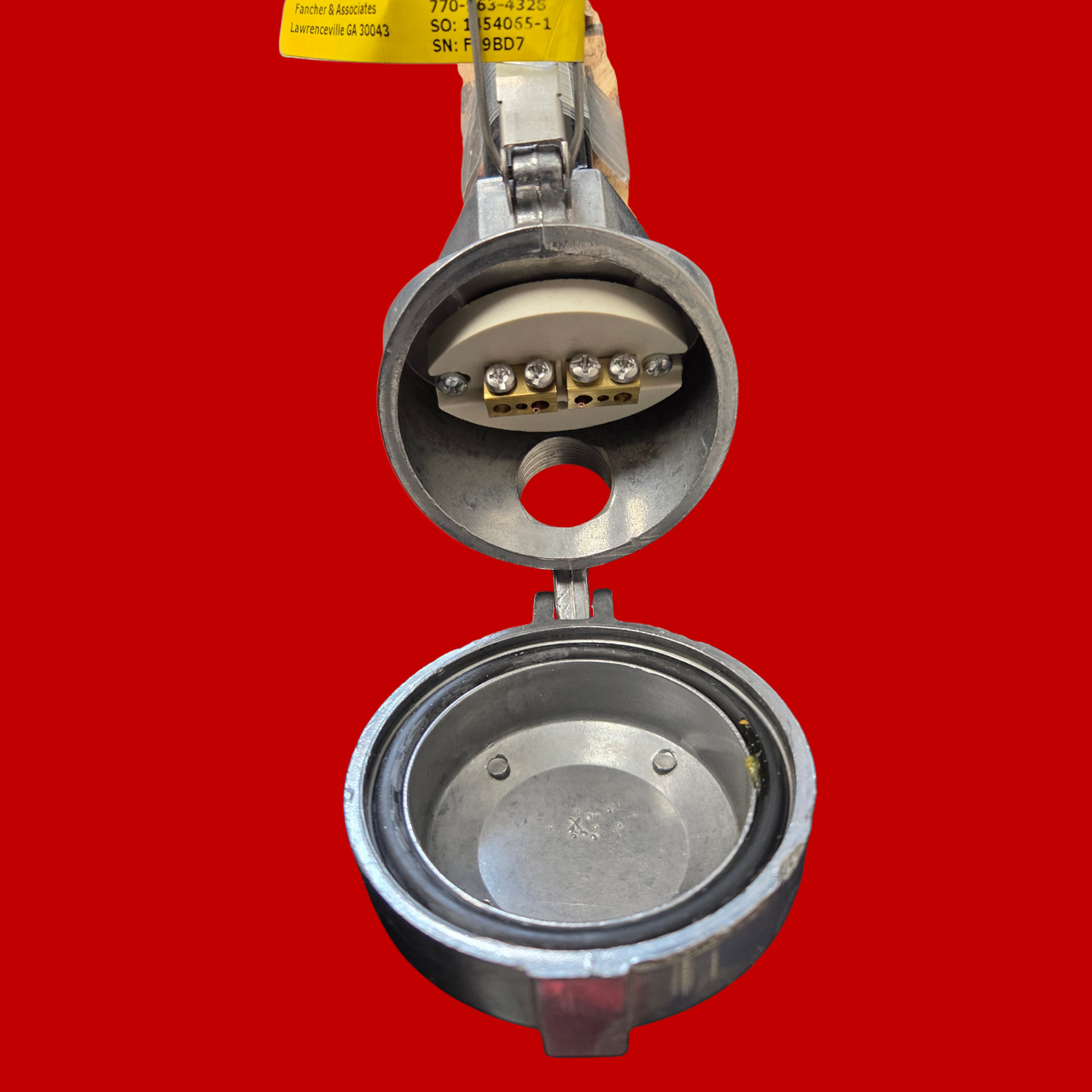

Pyromation B24R-17B4-24-49, NT Type B Thermocouple Assembly w/ Ceramic Protection Tube, 24" Insertion Length
PN: B24R-17B4-24-49, NT
Private Labeled by: Fancher & Associates
Type B Platinum/Rhodium thermocouple assembly with 24-gauge wire, 99.7% alumina insulated elements, housed in a Series 17 alumina ceramic tube, 24 inches long, with a process mounting connection. This is designed for high-temperature applications (up to 3000°F+ / 1700°C+).
- Type B Thermocouple (Platinum/30% Rhodium (+) vs. Platinum/6% Rhodium (-)).
- 24 Gauge wire
- Insulated element (Round 99.7% Alumina insulation).
- Series 17 Alumina (Ceramic) Protection Tube (high-temperature, high-purity alumina).
- 17-series ceramic tube, 11/16" OD
- 24" insertion length
- NT: "No process threads" on the pipe nipple.
