Product Description

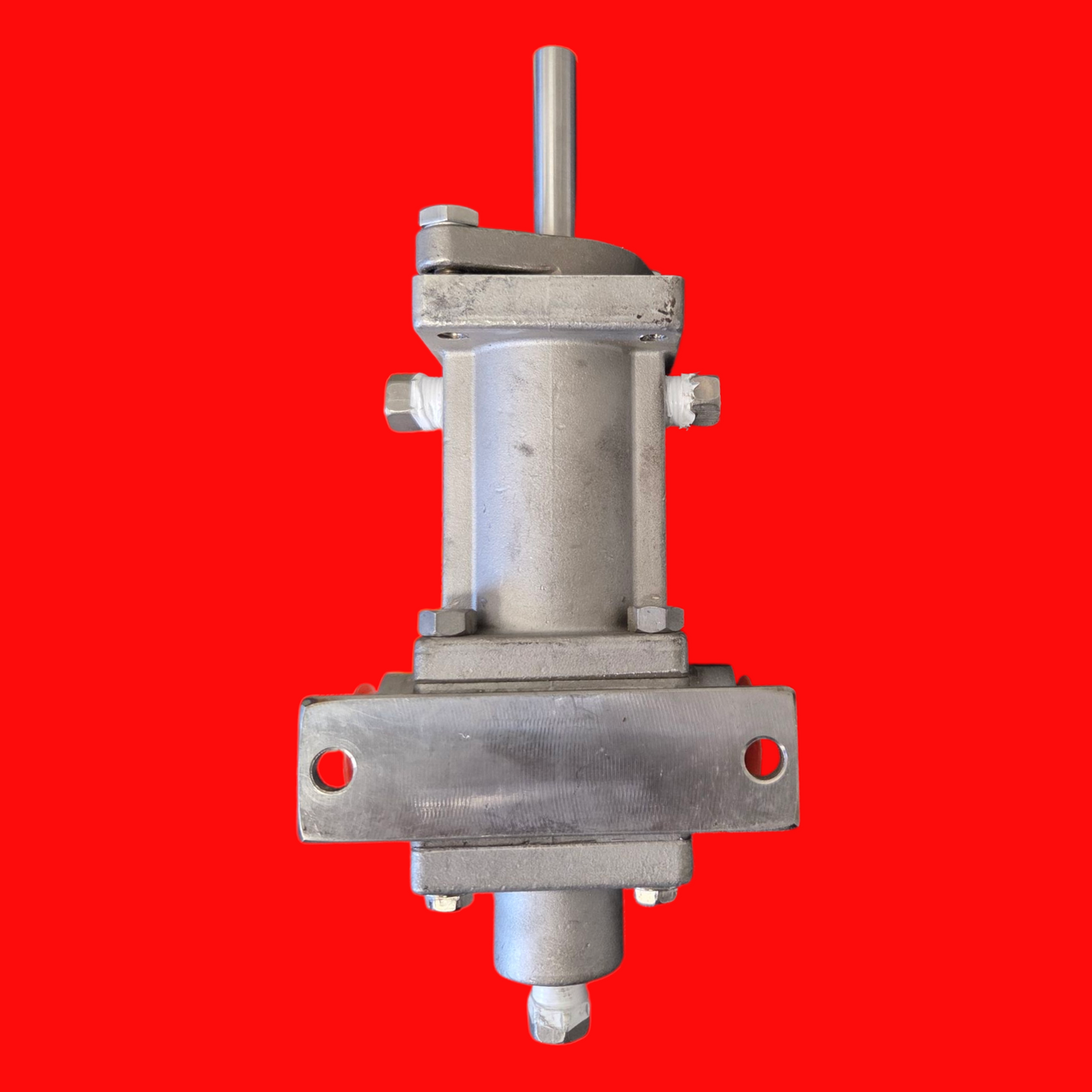

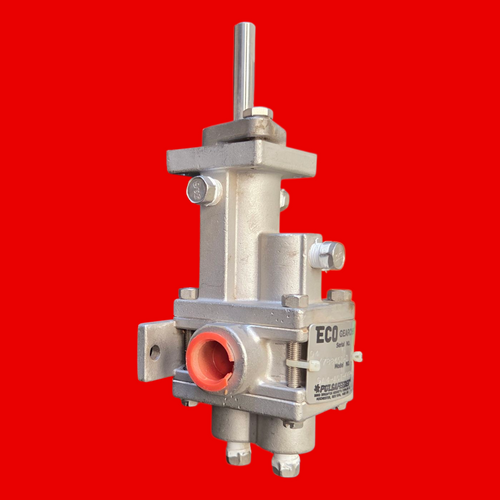

Pulsafeeder ECO Gearchem GA4-ACT-KKP-A Rotary Gear Pump
PN: GA4-ACT-KKP-A
The ECO Gearchem rotary gear pump is an economical alternative for chemical transfer, cyclic operation and continuous production systems, both open ended and closed-loop. ECO gear pumps are well suited for pilot plants, vacuum systems, and metering applications.
- Direction of Rotation: Bi-directional
- Mechanical Seals: Single internal or double seals to 140 psi. Single external seal to 50 psi
- Port Size and Type: 0.5” NPT or BSPT, 0.5” 150# ANSI Flange
- Minimum Fluid Temperature: -100°F (-73°C)
- Max Speed: 1,725 RPM
- Bearing Type: Internal Sleeve
- Packing Arrangement: Standard or lantern ring
- Theoretical Displacement: 0.189 US gal / 100 Rev (7.16 cc / Rev)
- Fluid Temperatures: Up to 450°F (233°C)
- Viscosity: Up to 100,000 cPs
- Wearplate: Carbon 72, Carbon 92, Glass-filled PTFE, Silicon Carbide
- Bearings: Carbon 72, Carbon 92, Glass-filled PTFE, Silicon Carbide
- Shafts: 316 SS, Alloy C, Alloy 20
- Drive and Idler Gear: 316 SS, Alloy C, Alloy 20
- Casing and Housing: 316 SS, Alloy C, Alloy 20
