Product Description

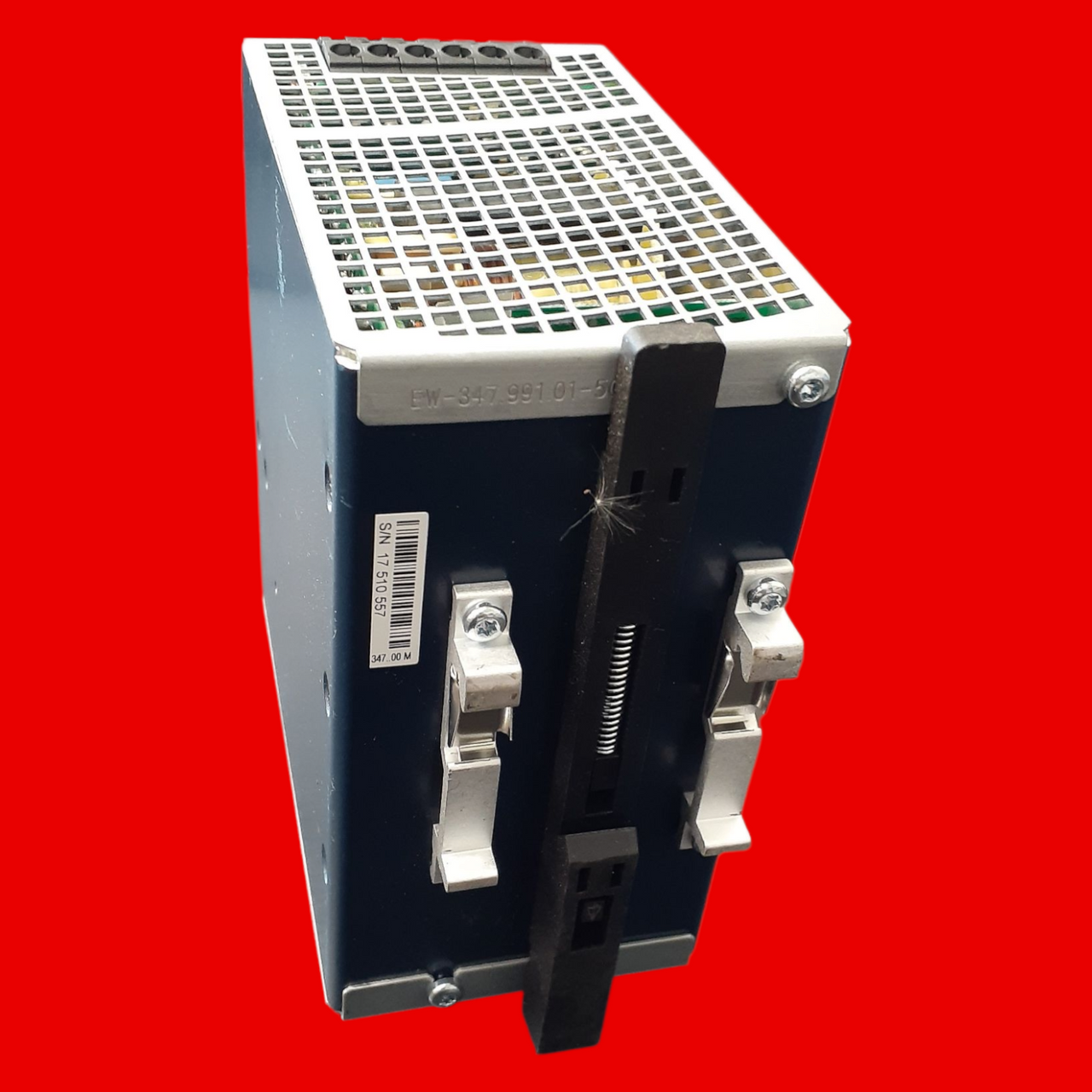

PULS DC Power Supply: DIN Rail, 480 W Output Power - Rated, 20 A Current - Output, Three Phase, QT20.241
PN: QT20.241
- Current - Inrush: 3 A
- Current - Output: 20 A
- Current - Peak: 10 A
- Hold Up Time - Minimum: 22 msec
- Housing Material: Plastic
- IP Rating: IP20
- Input Frequency - Maximuim: 60 Hz
- Input Frequency - Minimum: 50 Hz
- Input Frequency - Nominal: 50/60 Hz
- Input Voltage: 380 to 480V AC
- Mean Time Between Failures (MTBF): 690,000 hr
- Mounting: DIN Rail
- Operating Temperature - Maximum: 158 °F
- Operating Temperature - Minimum: -13 °F
- Output Power - Rated: 480 W
- Output Voltage - Maximum: 28 V DC
- Output Voltage - Minimum: 24 V DC
- Output Voltage - Nominal: 24 V DC; 28 V DC
- Overall Depth: 5 in
- Overall Height: 4.88 in
- Overall Width: 2.56 in
- Phase: Three
- Power Supply Style: Switching
- Start Up Time - Maximum: 350 msec
- Status Indicator: DC OK Signal
- Wire Connection Type: Spring Clamp Terminals
- Wire Size - Maximum: 10 AWG
- Special Features: Active Filtering of Input Transients
- Sub-brand: Switched-mode Din Rail DC Power Supply
- Series: Q
