Product Description

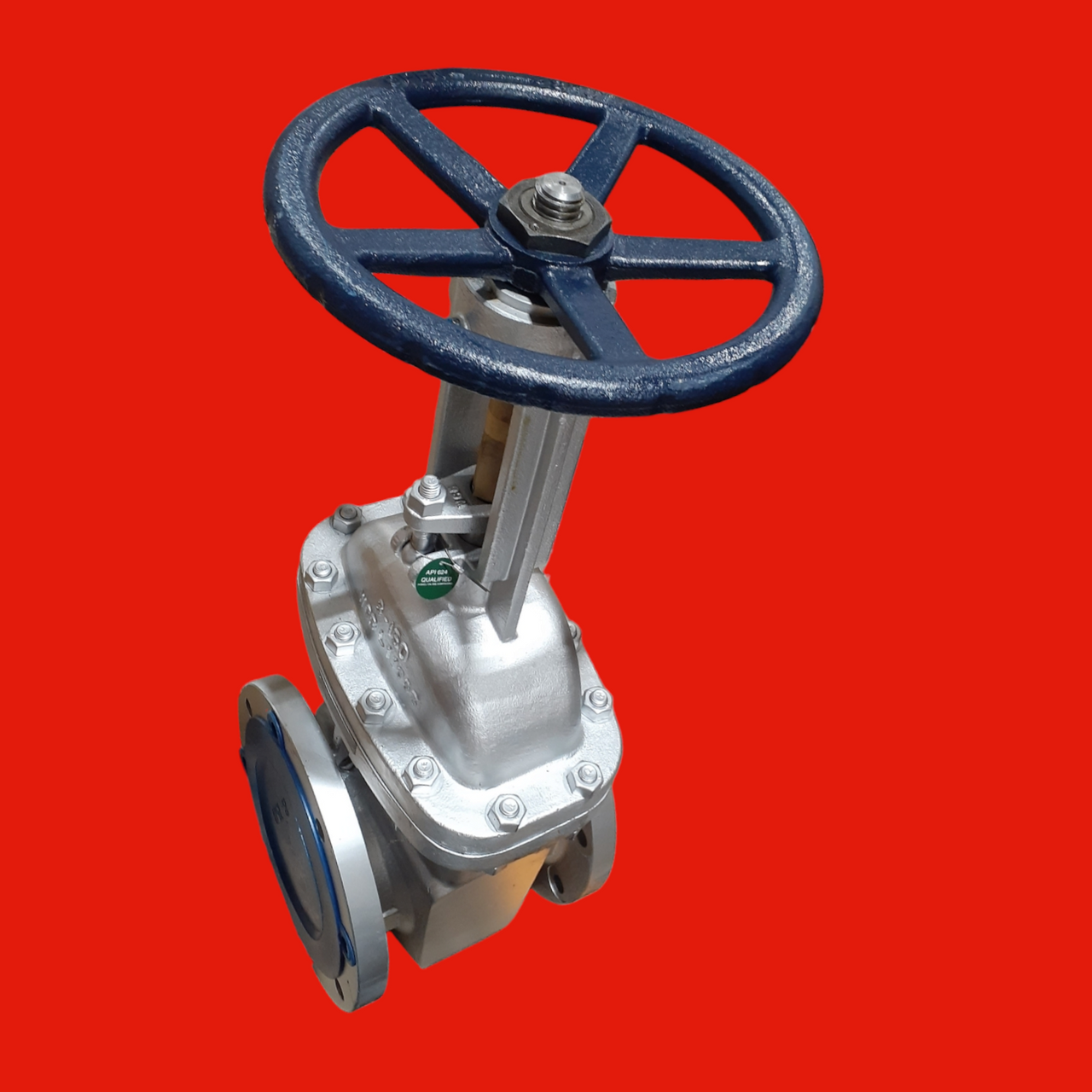

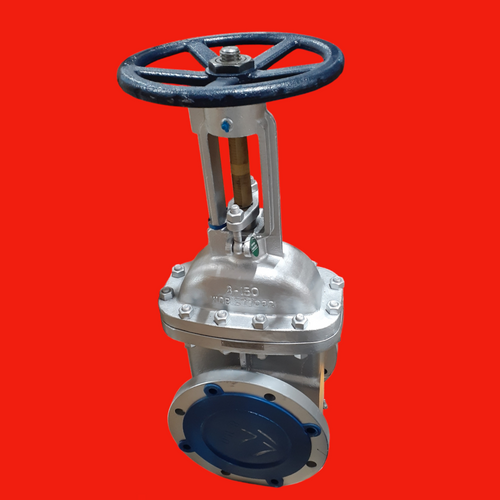

Powell Valves 8.0 1503FC8GXXX Smooth Cast Carbon Steel OSY Gate Valve - Raised Face Flanged - Class 150
PN: 8.0 1503FC8GXXX
- Actuator Type: Manual
- Additional Information: 7 in Dia Handwheel
- Body Material: Cast Carbon Steel, Steel
- Connection Type: Raised Face Flanged
- Flow Coefficient (Cv): 240
- Handle Material: Iron/Steel, Malleable Iron/Steel
- Inlet to Outlet Length: 7
- Manufacturer: Powell Valves
- Material Standard: ASTM A216, A217, A193, A194
- Operator Type: Handwheel
- Pressure Class: 150, Class 150
- Seat Material: Stainless Steel, Stellite
- Series: 1503 Series
- Stem Material: 410 Stainless Steel, Stainless Steel
- Top to Inlet Center: 14.6
- Trim Material: 410 Stainless Steel
- Finish/Color: Smooth
- Gland Material: 410 Stainless Steel
- Item Name: Gate Valve
- Lead Free: No
- Series/Model: Series 1503
- Type: Outside Stem and Yoke
Features
- Flexible wedge for improved seating and ease of operation, especially in high temperature service
- Seat faces lapped for smooth finish and superior sealing
- Stems are non-rotating with surface finish to maximize packing seal for low fugitive emissions
- Bonnet and yoke arms designed for ease of gear, motor or cylinder actuator adaptation
- 2-piece gland/gland flange design for optimal alignment and uniform packing compression
- Standards/Approvals: API 600, ASME B16.10, ASME B16.25, ASME B16.34, ASME B16.50
