Product Description

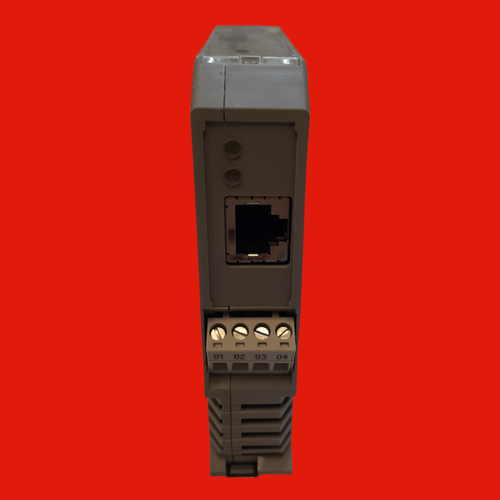

Phoenix Contact EM-ETH-GATEWAY-IFS Data Interface
PN: EM-ETH-GATEWAY-IFS
The Phoenix Contact EM-ETH-GATEWAY-IFS is a data interface gateway that connects up to 32 INTERFACE system devices to a higher-level controller using EtherNet/IP. It is a converter that converts RS-232/422/485 to Ethernet.
Gateway for the connection of up to 32 INTERFACE system devices to a higher-level controller via EtherNet/IP™. The INTERFACE system devices are connected to the Gateway via DIN rail connectors, the DIN rail connectors are provided.
Product Properties
- Product type: Gateways/Proxies
- Operating mode: 100% operating factor
Insulation characteristics
- Overvoltage category: III
- Pollution degree: 2
Supply
- Rated control circuit supply voltage: US 24 V DC -20 % ... +25 %
- Rated control supply current IS: 85 mA (plus load current of the outputs)
- Protective circuit: Reverse polarity protection / Surge protection
