Product Description

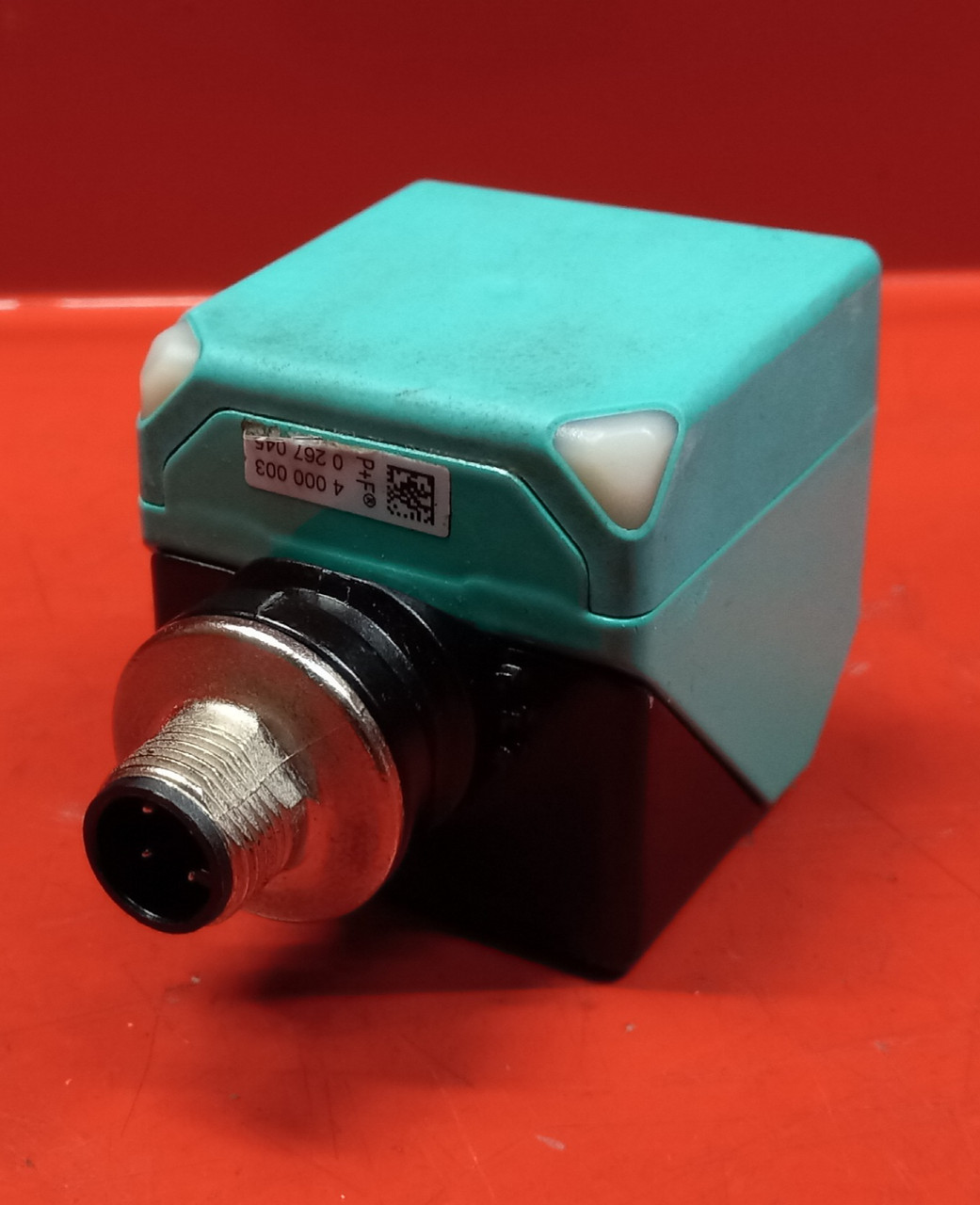

Pepperl+Fuchs NRN40-L3K-A2-V1 Inductive Sensor
- Switching Function: complementary
- Output Type: PNP
- Rated Operating Distance: 40 mm
- Installation: non-flush
- Output Polarity: DC
- Assured Operating Distance: 0 ... 32.4 mm
- Actual Operating Distance: 36 ... 44 mm
- Reduction Factor rAl: 1
- Reduction Factor rCu: 1
- Reduction Factor r304: 1
- Reduction Factor rSt37: 1
- Output Type: 4-wire
- Operating Voltage: 10 ... 30 V DC
- Switching Frequency: 0 ... 180 Hz
- Hysteresis: 2 ... 15 %
- Reverse Polarity Protection: Reverse Polarity Protected
- Short-Circuit Protection: Pulsing
- Voltage Drop: ≤ 2.5 V
- Operating Current: 0 ... 200 mA
- Off-state Current: 0 ... 0.5 mA typ. 0.01 mA
- No-Load Supply Current: ≤ 25 mA
- Time delay Before Availability: 15 ms
- Constant Magnetic Field: 200 mT
- Alternating Magnetic Field: 200 mT
- Operating Voltage Indicator: LED, green
- Switching State Indicator: LED, yellow
