Product Description

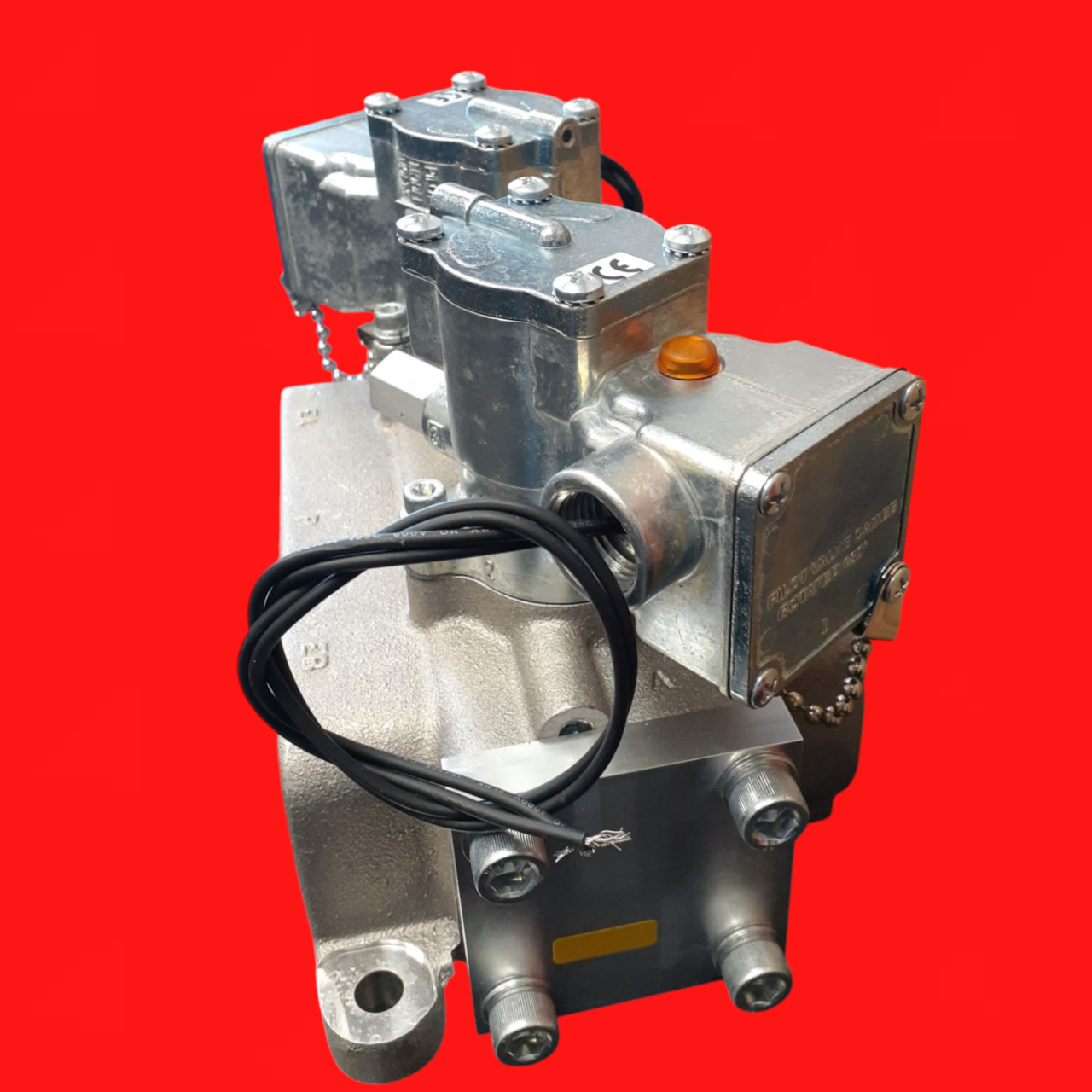

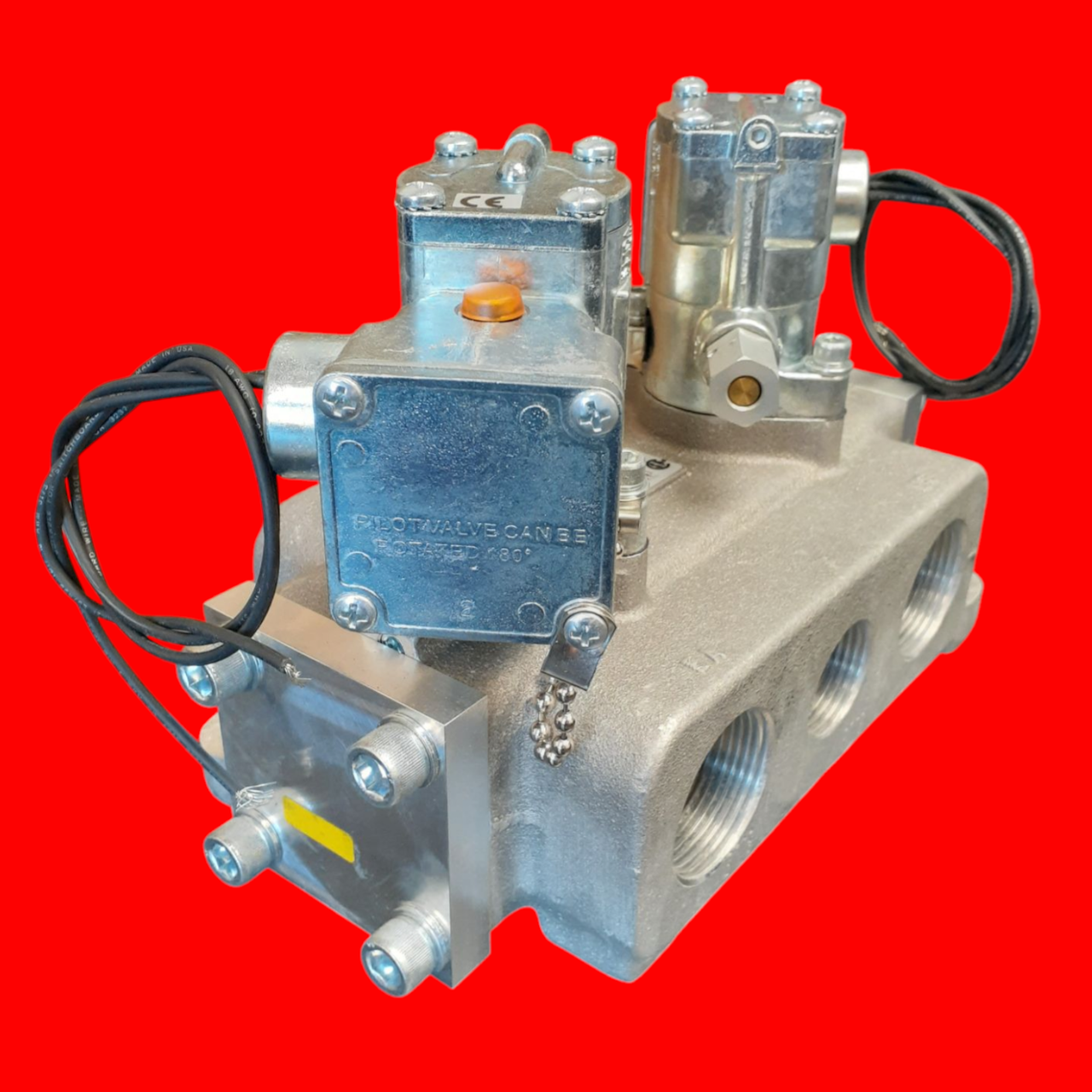

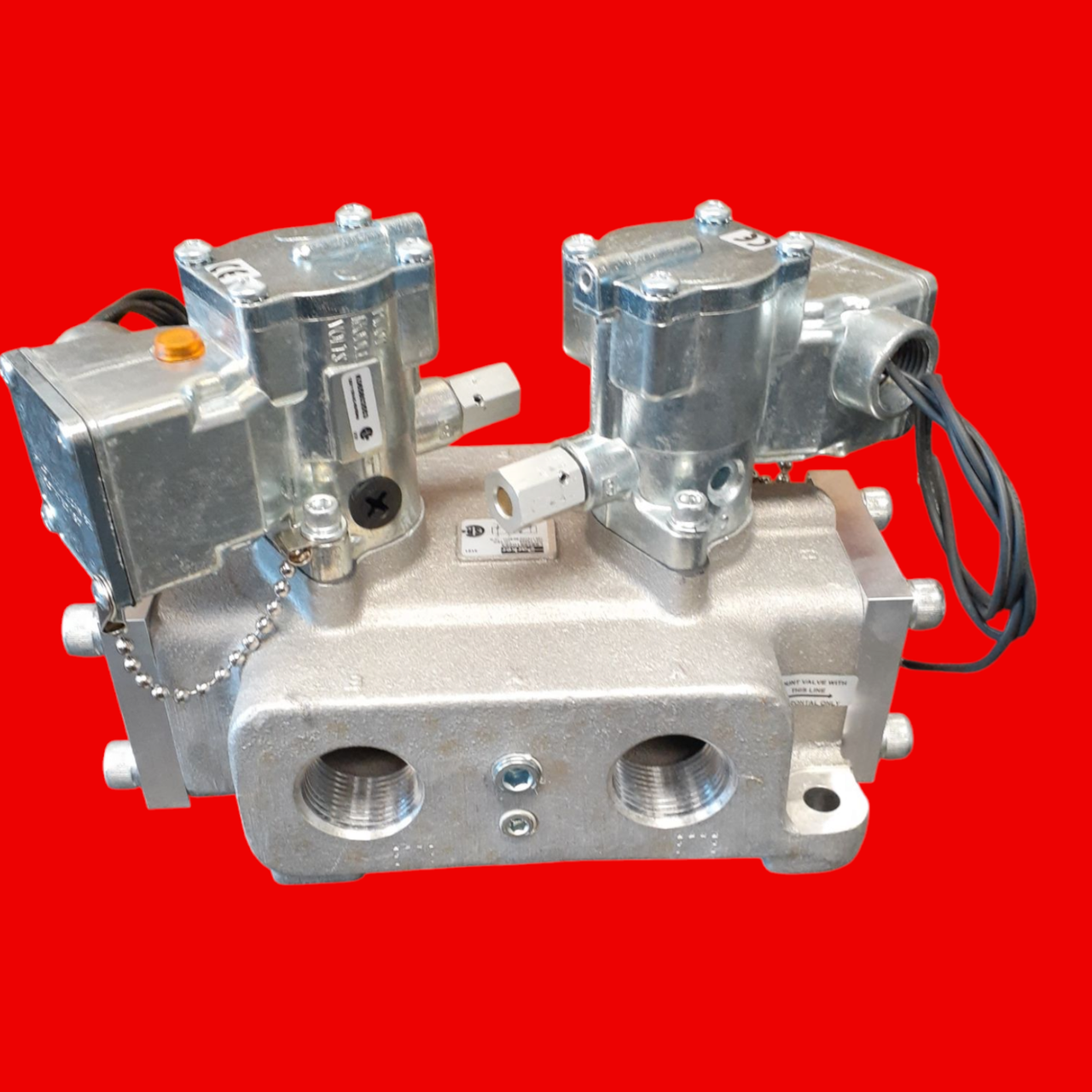

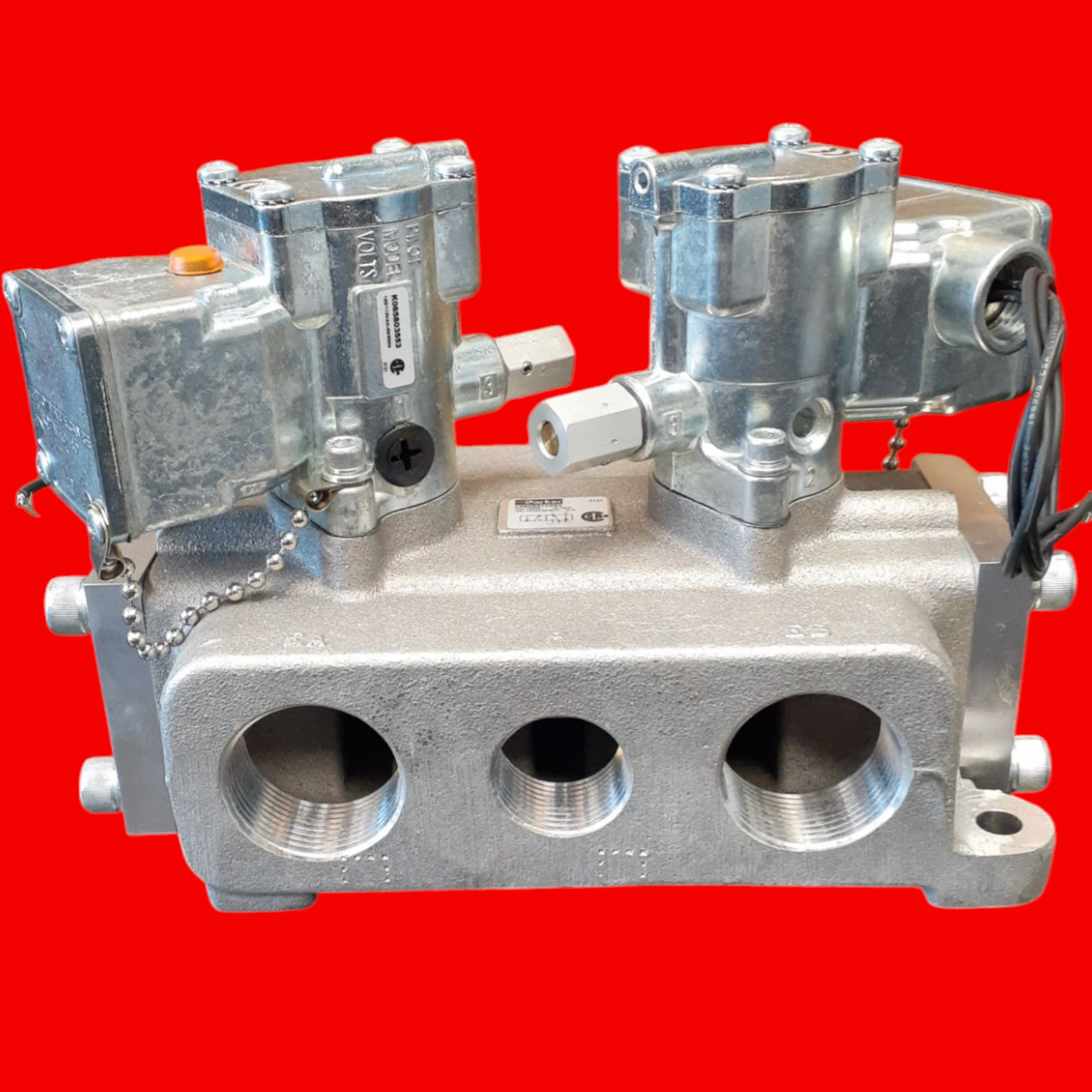

Parker L6858810253 Valvair II Double Solenoid Single Subbase Plug-in Valve
PN: L6858810253
The Valvair II Single Subbase Plug-in Valve is mounted on a single subbase suited for harsh industrial environments such as concrete aggregate plants & steel mills. Flow ranges up to Cv of 11.3 with either air piloted or solenoid air piloted operators with continuous duty options. Sandwich regulators can be added to the valve stack to control application pressure. The valves are field converted from standard internal to external pilot operated service and are suitable for non-lube operation. Dynamic urethane O-rings with an off-center parting line, coupled with Nituf coated and hardened aluminum spools, create a valve with improved lubrication retention and low friction operation.
Markets:
- Heavy Industries
- Factory Automation
- Automotive
Features/Benefits:
- Dual O-ring packed bore design offers longer life in dirty MRO applications.
- Floating urethane O-Rings under minimum compression and friction, provide superior wear and abrasion resistance providing longer life
- Withstands tough environment conditions to provide less downtime
- CSA approved
Applications:
- Concrete Aggregate
- Steel Mills
- General Industry
- Conveyance
Specifications:
- Valve Function: Double Solenoid, 2-Position
- Size: 1" Inlet Cylinder, 1-1/4 Inch NPT Exhaust
- Operator Options: Solenoid with Junction Box and Light (120VAC, 24VDC), Non-locking Override
- Enclosure (Class): Standard, NEMA 1 & 12
- Duty Cycle: Standard Service, 2-Position
- Voltage & Frequency: 120VAC, 60Hz / 110VAC, 50Hz
