Product Description

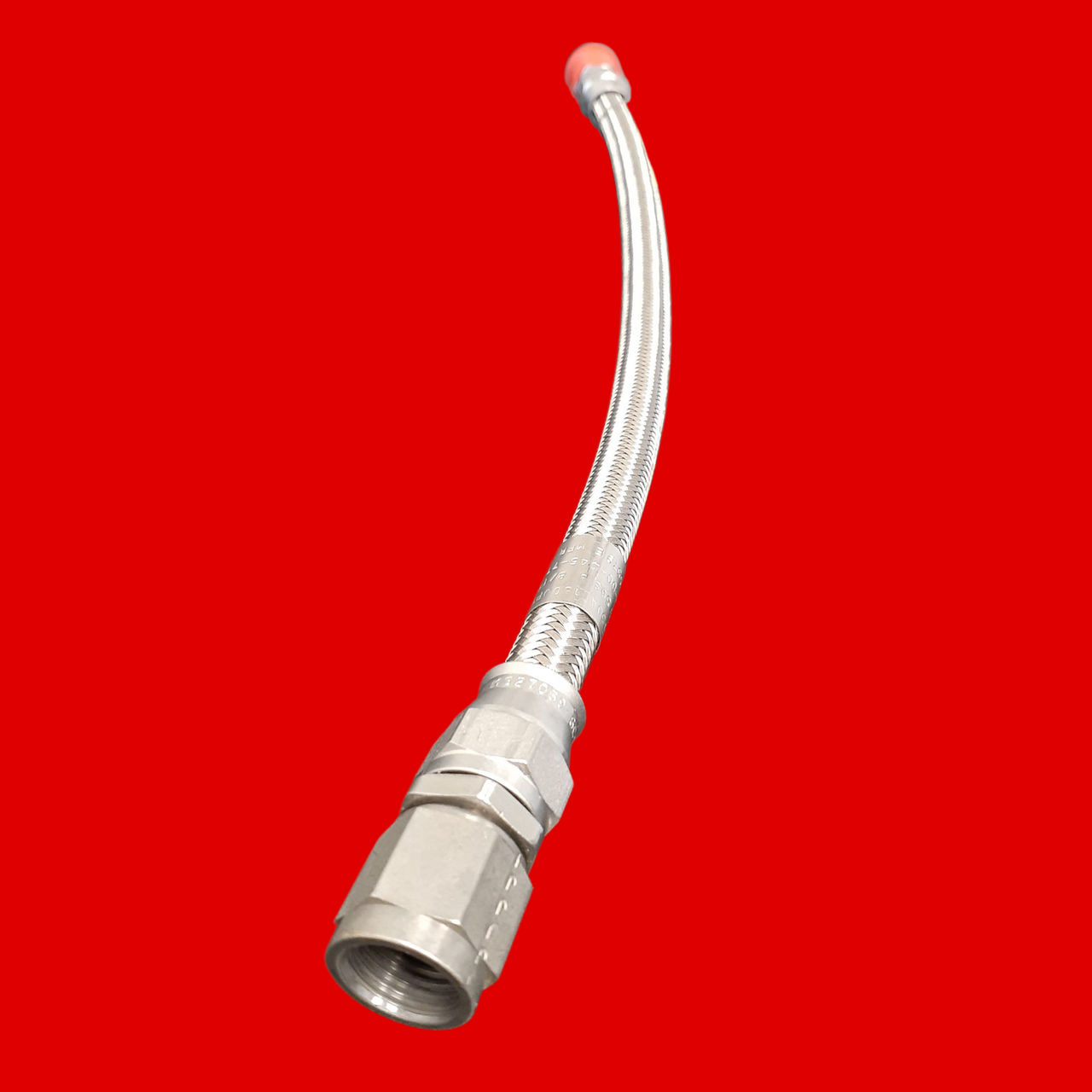

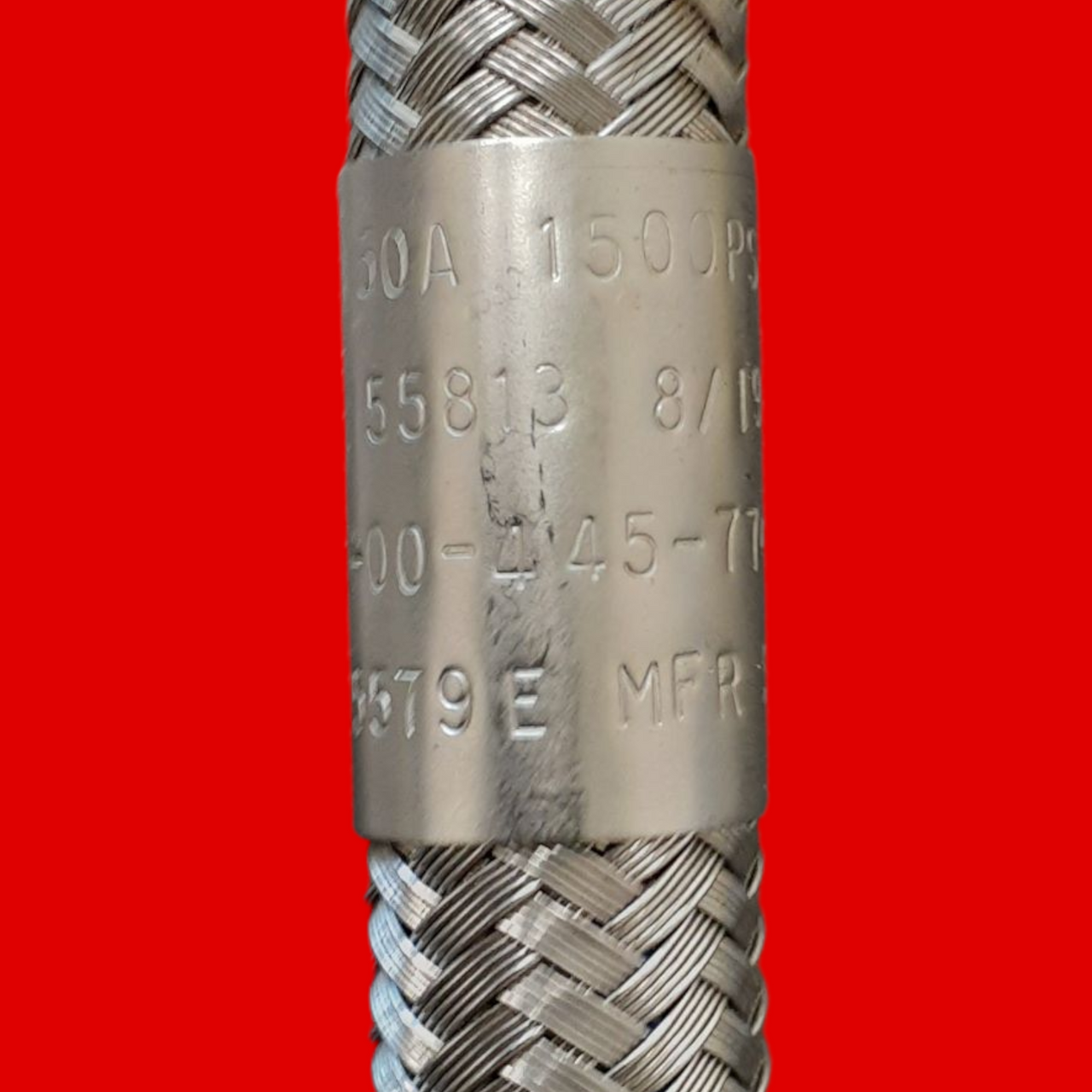

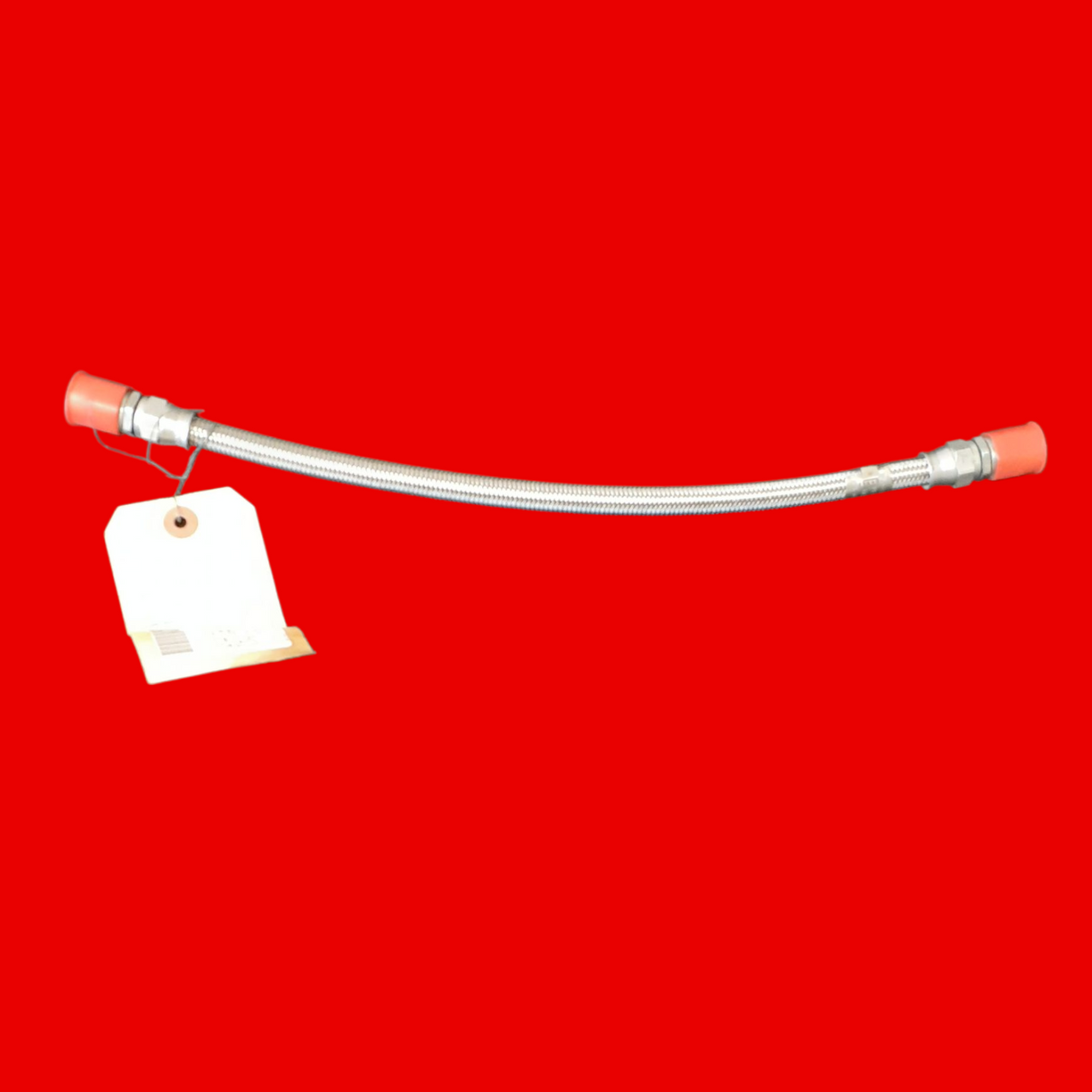

Parker Hannifin 125001-6CR-0150 Nonmetallic Flexible Hose Assembly, NSN 4720-00-445-7748
PN: 125001-6CR-0150
NSN: 4720-00-445-7748
MIL-H-25579
- INNER CONVEYING TUBE MATERIAL: PLASTIC, POLYTETRAFLUOROETHYLENE
- INSIDE SURFACE CONDITION: SMOOTH
- LAYER COMPOSITION AND LOCATION: OUTER LAYER BRAIDED CORROSION RESISTANT STEEL WIRE
- OUTSIDE SURFACE TREATMENT: PASSIVATED
- OUTER COVERING ENVIRONMENTAL PROTECTION: CORROSION RESISTANT AND FUEL RESISTANT AND OIL RESISTANT
- CROSS-SECTIONAL SHAPE: STYLE 1 ROUND
- INSIDE DIAMETER: 0.313 INCHES NOMINAL
- OUTSIDE DIAMETER: 0.460 INCHES NOMINAL
- MEASURING METHOD AND LENGTH: 15.625 INCHES NOMINAL OVERALL
- MINIMUM INSIDE BENDING RADIUS: 4.000 INCHES
- FIRST END CONNECTION TYPE: THREADED INTERNAL TUBE
- FIRST END STYLE DESIGNATOR: C3 SWIVEL NUT FLARE
- FIRST END SEAT ANGLE IN DEG: 37.0
- FIRST END CONNECTION DESIGN: STRAIGHT
- FIRST END SWIVEL ACTION CAPABILITY: NOT INCLUDED
- FIRST END FITTING/COMPONENT AND MATERIAL: NIPPLE STEEL, QQ-S-763, CLASS 304, COND A NUT ALUMINUM ALLOY, QQ-A-225/6, ALLOY 2024, T4 SOCKET STEEL, QQ-S-763, CLASS 304, COND A
- FIRST END FITTING/COMPONENT AND SURFACE TREATMENT: NIPPLE PASSIVATED NUT ANODIZED SOCKET PASSIVATED
- FIRST END THREAD SERIES DESIGNATOR: UNF
- FIRST END NOMINAL THREAD SIZE: 0.562 INCHES
- FIRST END THREAD CLASS: 3B
- FIRST END THREAD DIRECTION: RIGHT-HAND
- SECOND END RELATIONSHIP WITH FIRST END: IDENTICAL
- TEMP RATING -65.0 DEG FAHRENHEIT AND 275.0 DEG FAHRENHEIT
- MAXIMUM OPERATING PRESSURE: 1500.0 POUNDS PER SQUARE INCH
- HYDROSTATIC TEST PRESSURE: 3000.0 POUNDS PER SQUARE INCH
- BURST TEST PRESSURE: 9000.0 POUNDS PER SQUARE INCH
- VACUUM IN TORR: 50.8
- FEATURES PROVIDED: ELECTROSTATIC DISCHARGE CAPABILITY
- SPECIAL FEATURES: PERMANENTLY ATTACHED FITTINGS
