Product Description

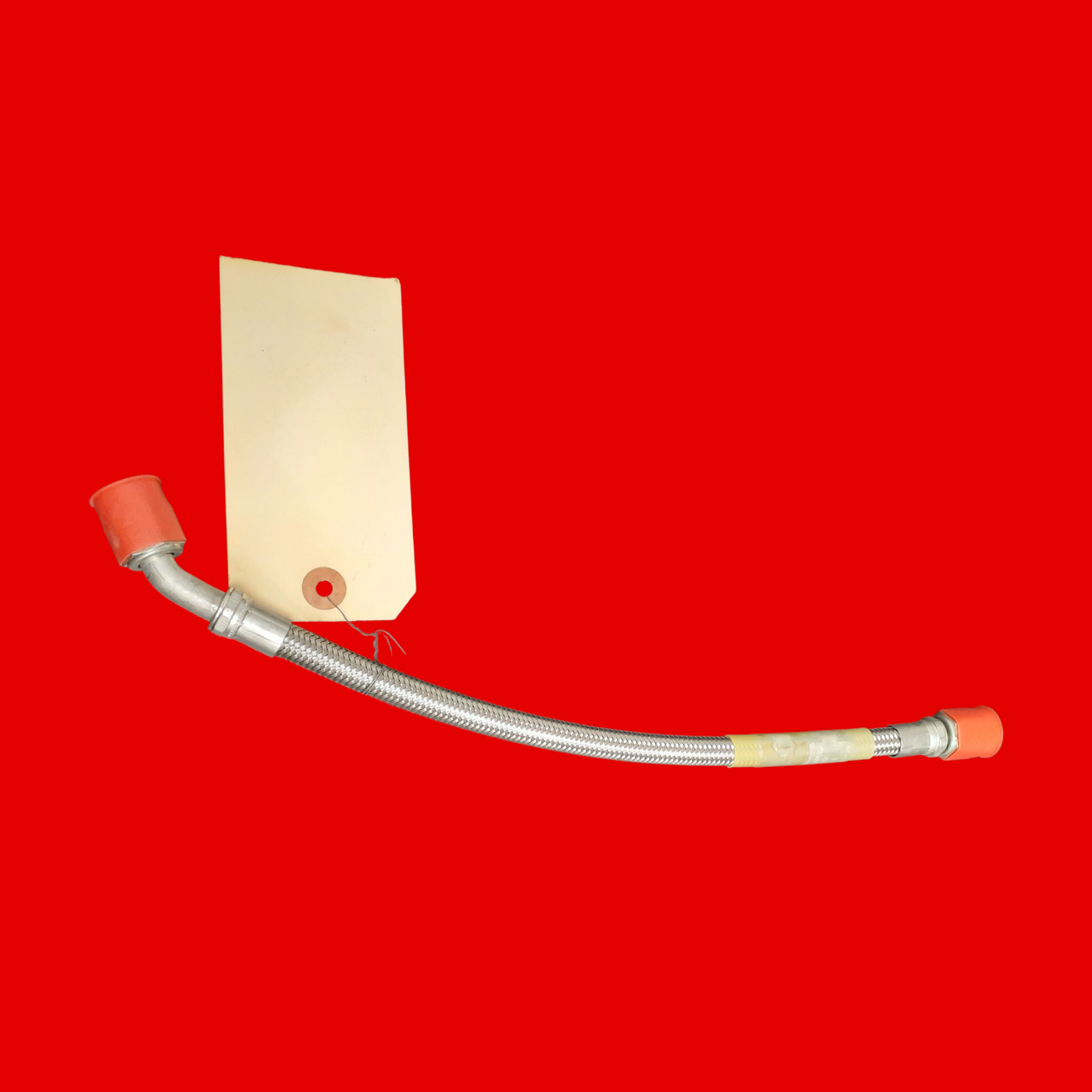

Parker Hanifin B028G0127C Nonmetallic Flexible Hose with Elbow NSN 4720-01-323-3243
PN: B028G0127C
NSN: 4720-01-323-3243
MIL-H-25579E
- CROSS-SECTIONAL SHAPE STYLE: ROUND
- THREAD CLASS: 3B 1ST END
- THREAD CLASS: 3B 2ND END
- INSIDE DIAMETER: 0.313 INCHES NOMINAL
- TEMP RATING: -65.0 DEG FAHRENHEIT SINGLE RESPONSE AND 450.0 DEG FAHRENHEIT SINGLE RESPONSE
- END ITEM IDENTIFICATION: GMC,ALLISON DIV T56-A427 ENGINE

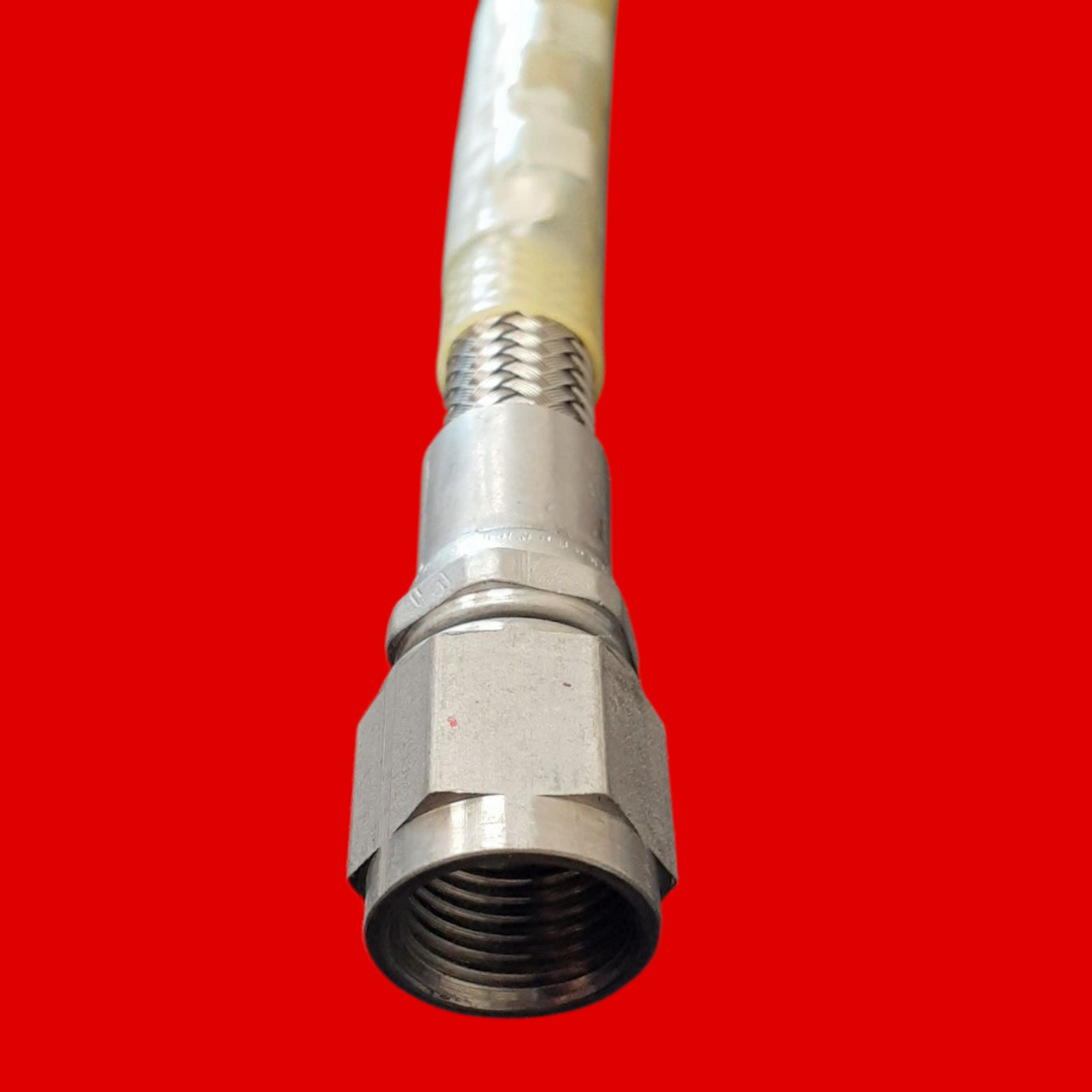

- CONNECTION STYLE: SWIVEL NUT FLARE 1ST END
- END CONNECTION DESIGN: ELBOW 2ND END
- END CONNECTION DESIGN: STRAIGHT 1ST END
- CONNECTION TYPE: THREADED INTERNAL TUBE 1ST END
- LAYER COMPOSITION AND LOCATION: OUTER LAYER BRAIDED CORROSION RESISTANT STEEL WIRE
- MAXIMUM OPERATING PRESSURE: 1500.0 POUNDS PER SQUARE INCH
- NOMINAL THREAD SIZE: 0.562 INCHES 2ND END
- SEAT ANGLE: 37.0 DEGREES 1ST END
- SEAT ANGLE: 37.0 DEGREES 2ND END
- HYDROSTATIC TEST PRESSURE: 3000.0 POUNDS PER SQUARE INCH
- FLOW ANGLE: 45.0 DEGREES 2ND END
- INSIDE SURFACE CONDITION: SMOOTH
- THREAD SERIES DESIGNATOR: UNJF 2ND END
- CONNECTION TYPE: THREADED INTERNAL TUBE 2ND END
- NOMINAL THREAD SIZE: 0.562 INCHES 1ST END
- THREAD DIRECTION: RIGHT-HAND 1ST END
- OUTSIDE DIAMETER: 0.375 INCHES NOMINAL
- MINIMUM INSIDE BENDING RADIUS: 4.000 INCHES
- CONNECTION STYLE: SWIVEL NUT FLARE 2ND END
- THREAD DIRECTION: RIGHT-HAND 2ND END
- BURST TEST PRESSURE: 9000.0 POUNDS PER SQUARE INCH
- VACUUM IN TORR: 50.8
- MEASURING METHOD AND LENGTH: 12.875 INCHES NOMINAL WORKING
- THREAD SERIES DESIGNATOR: UNJF 1ST END
