Product Description

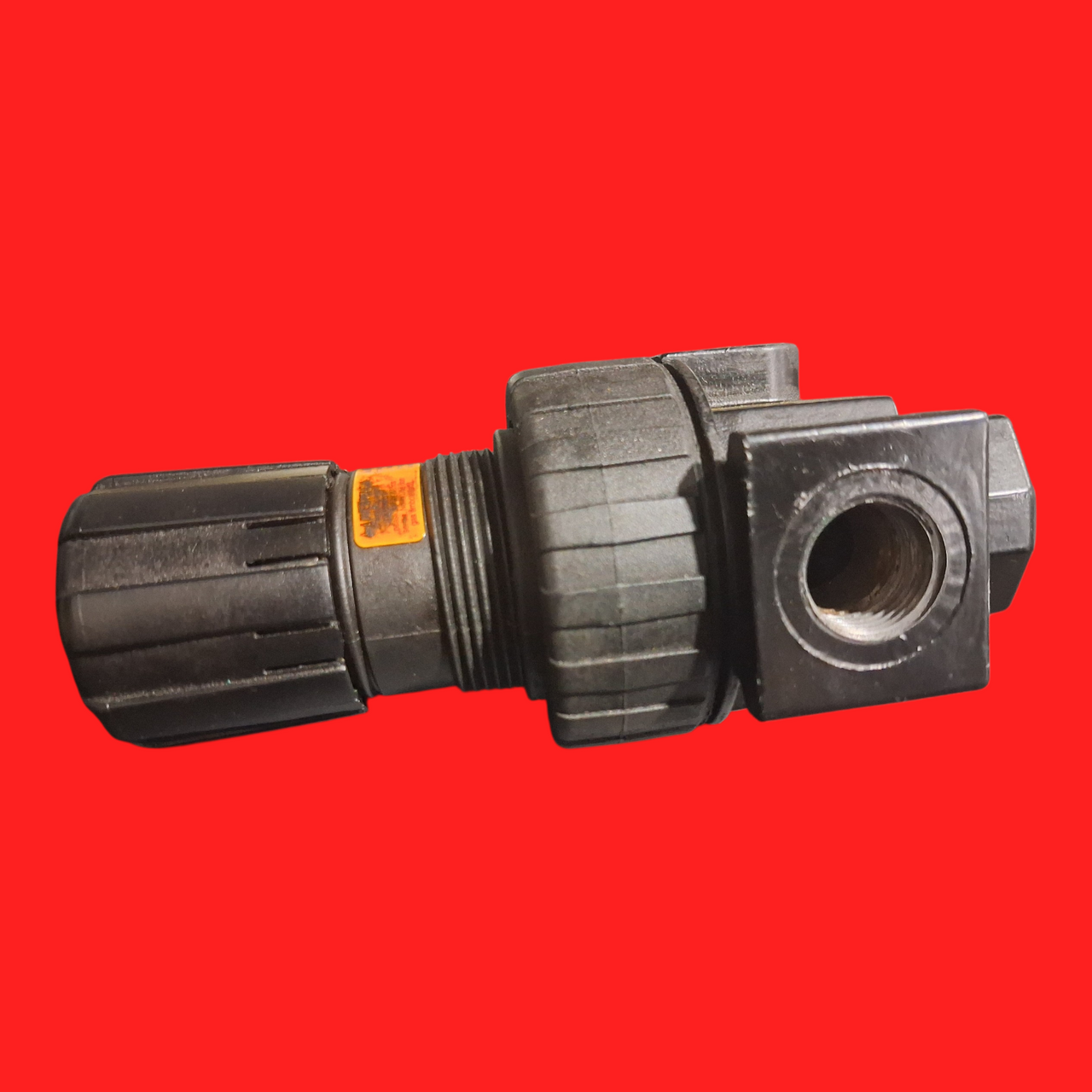

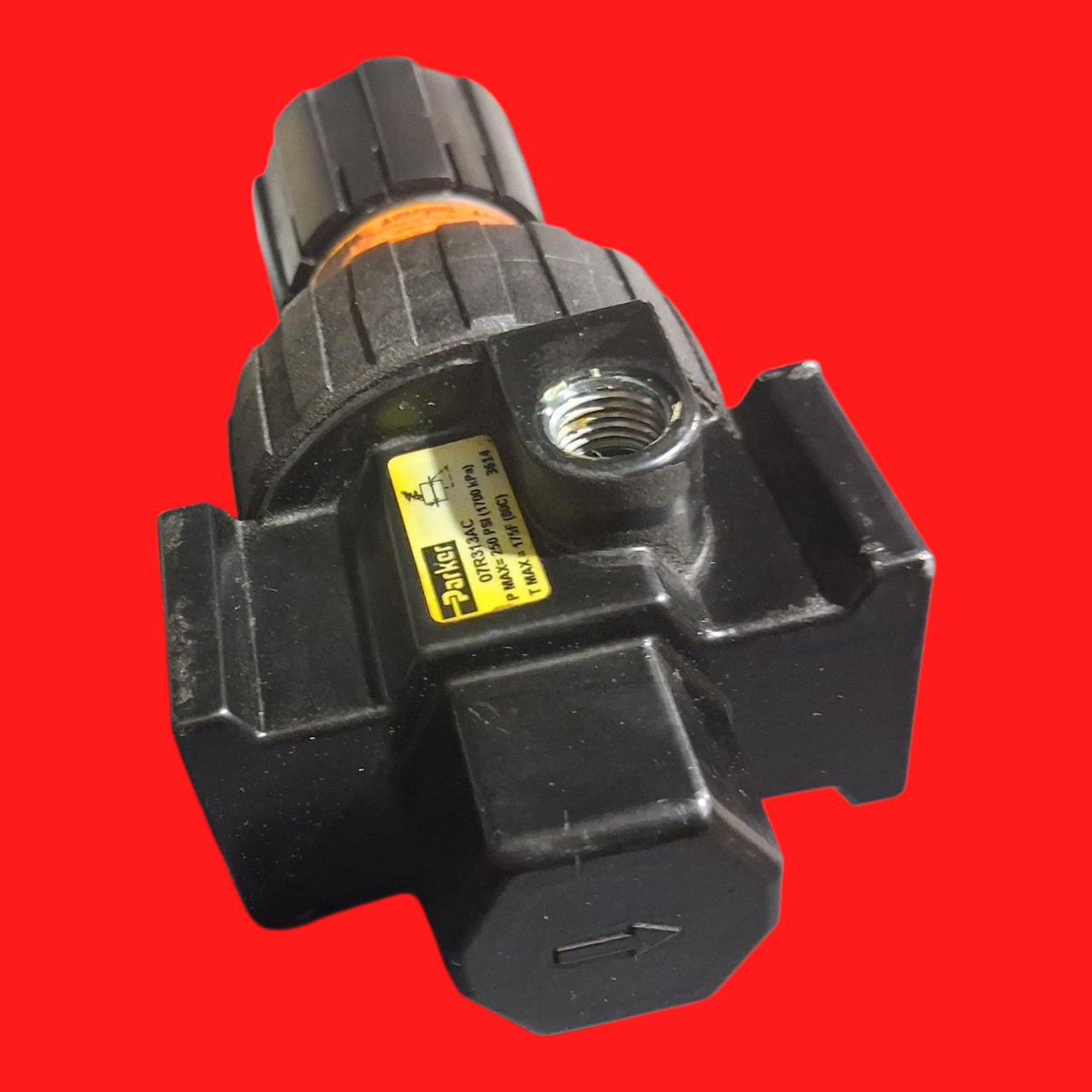

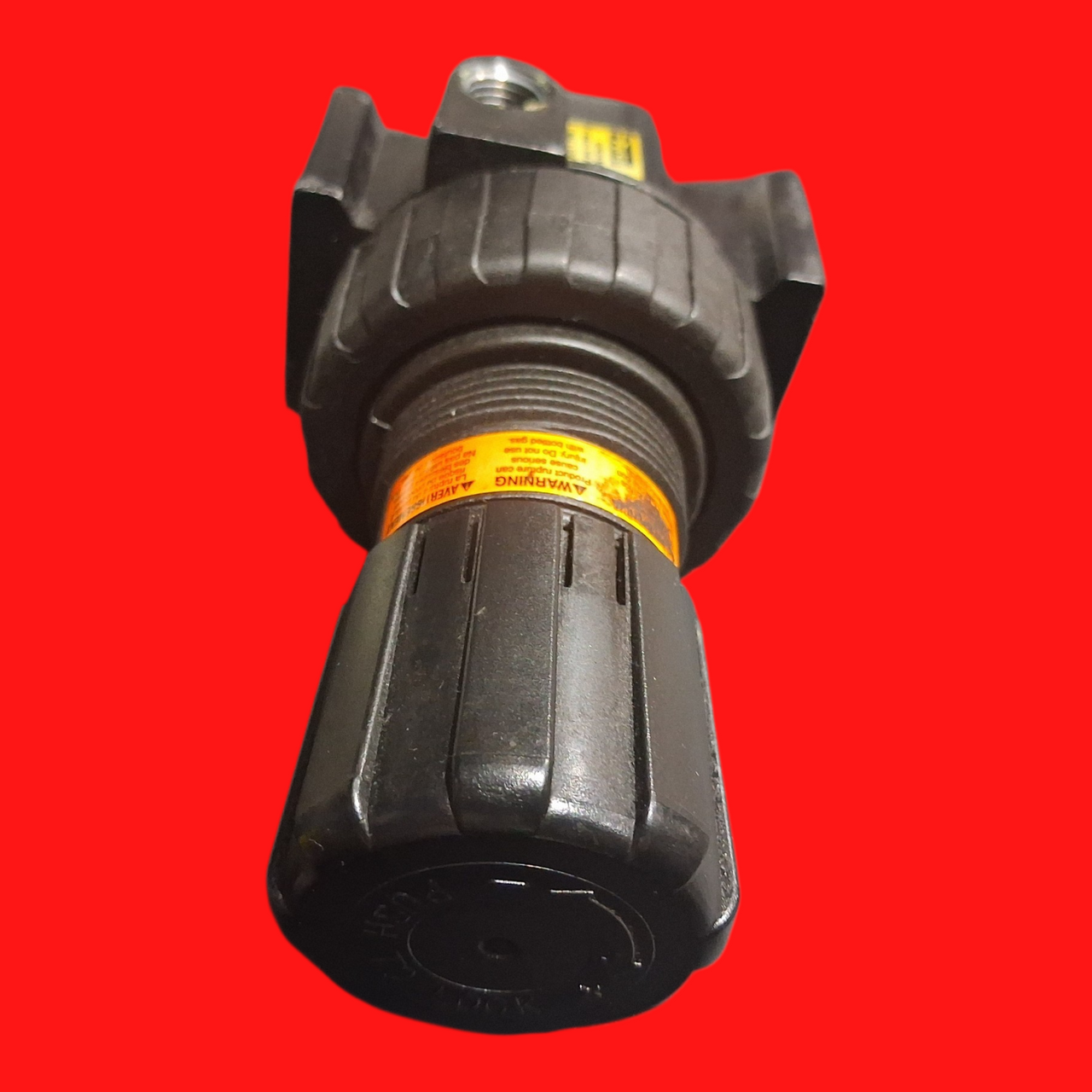

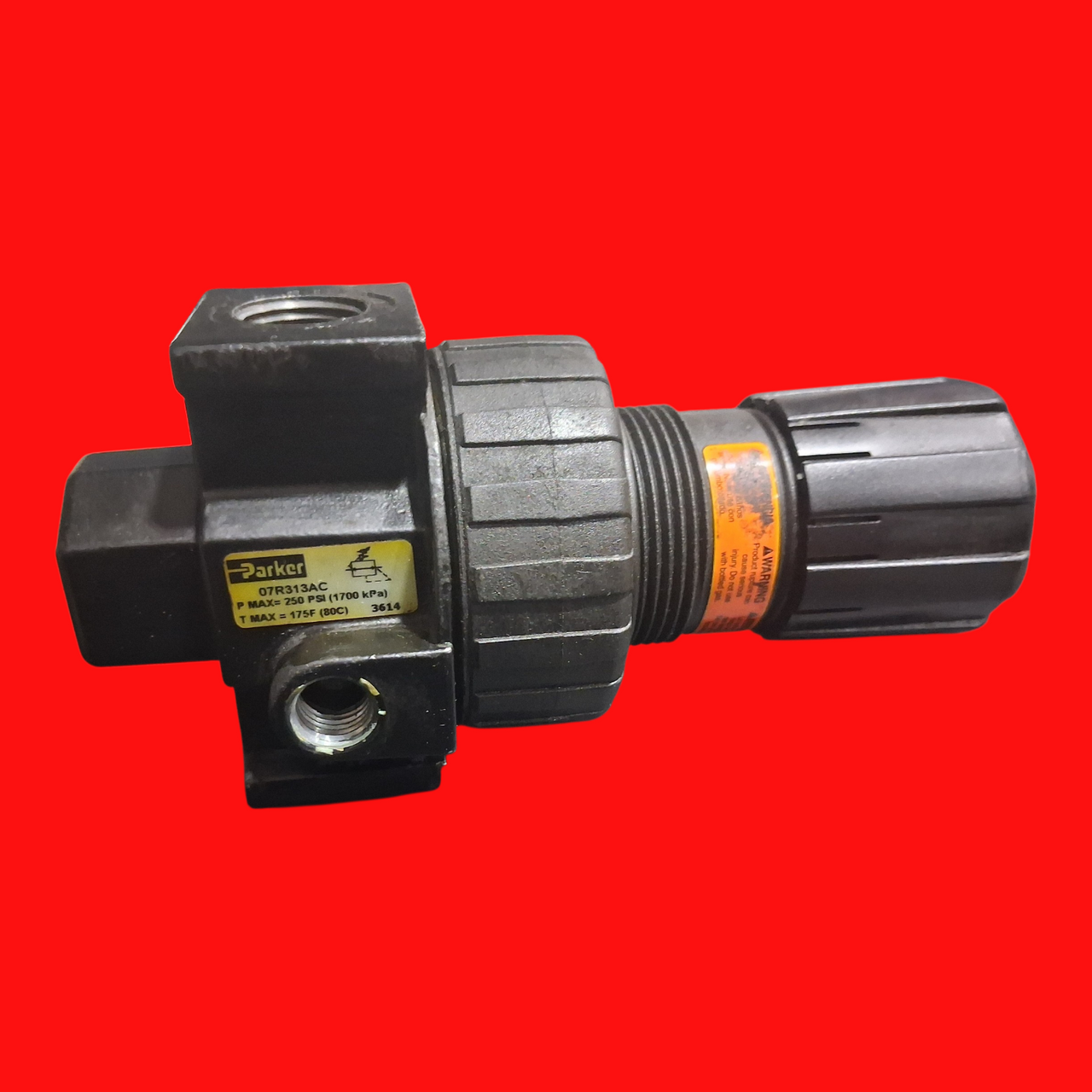

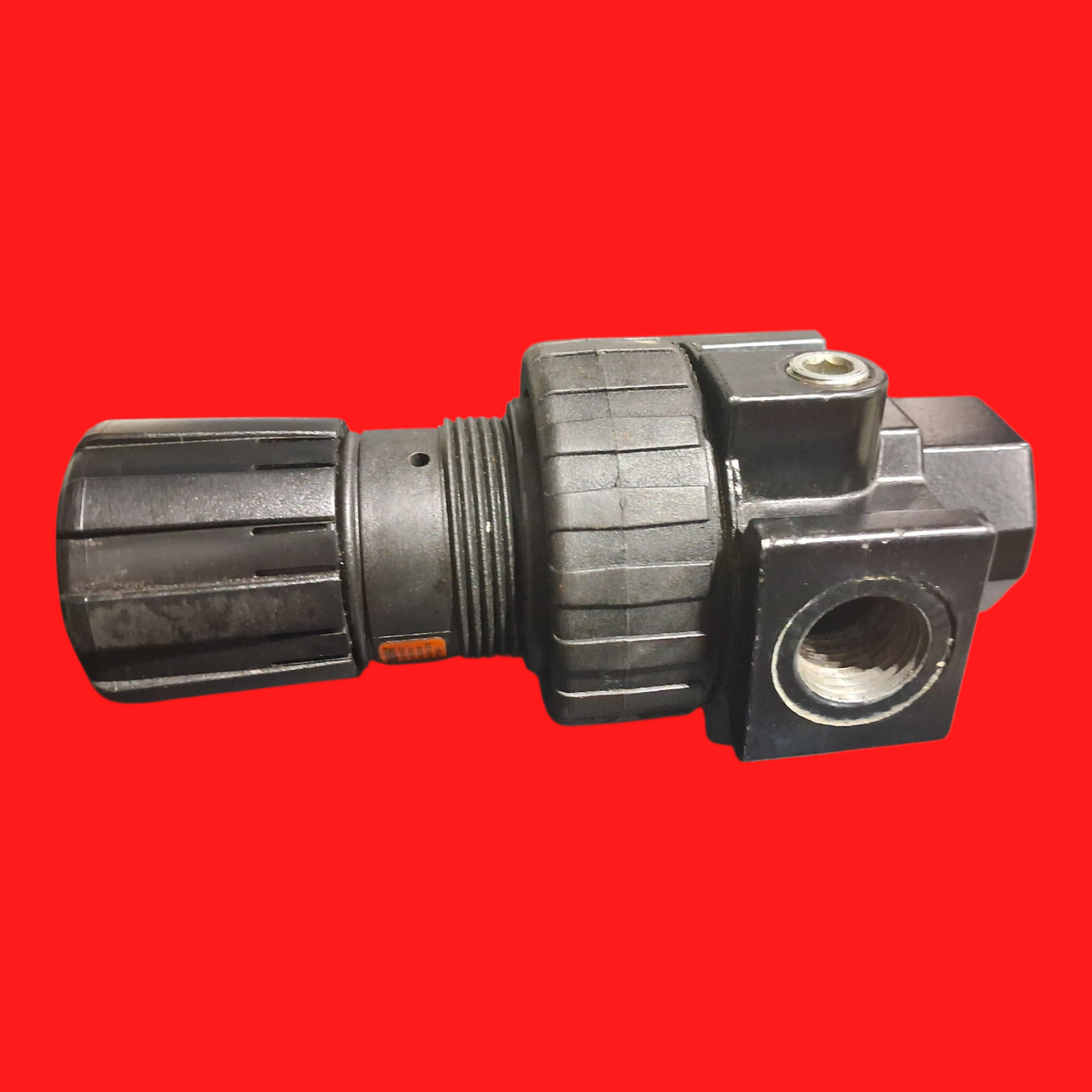

Parker 07R313AC Air Pressure Regulator
- Air Inlet Size: 1/2 in
- Air Inlet Type: NPT
- Maximum Flow Rate: 90 cfm
- Maximum Operating Pressure: 125 psi
- Maximum Operating Temperature: 175 Degrees F
- Pressure Gauge Included: No
- Adjustment Mechanism: Knob
- Overall Width: 2 3/4 in
- Adjustment Location: Top
- System Location: Air Line
- Series: 07R
- Adjustment Mechanism Material: Steel
- Air Flow Direction: Left to Right
- Air Inlet Gender: Female
- Air Outlet Gender: Female
- Air Outlet Size: 1/2 in
- Air Outlet Type: NPT
- Body Material: Zinc
- For Substance Type: Air
- Maximum Regulated Pressure: 125 psi
- Minimum Operating Pressure: 13 psi
- Minimum Operating Temperature: 32 Degrees F
- Minimum Regulated Pressure: 2 psi
- Number of Air Inlets: 1
- Number of Air Outlets: 1
- Overall Depth: 3 1/4 in
- Overall, Height: 6 in
- Pressure Gauge Port Size: 1/4 in
- Pressure Gauge Port Type: NPT
- Regulator Type: Relieving
