Product Description

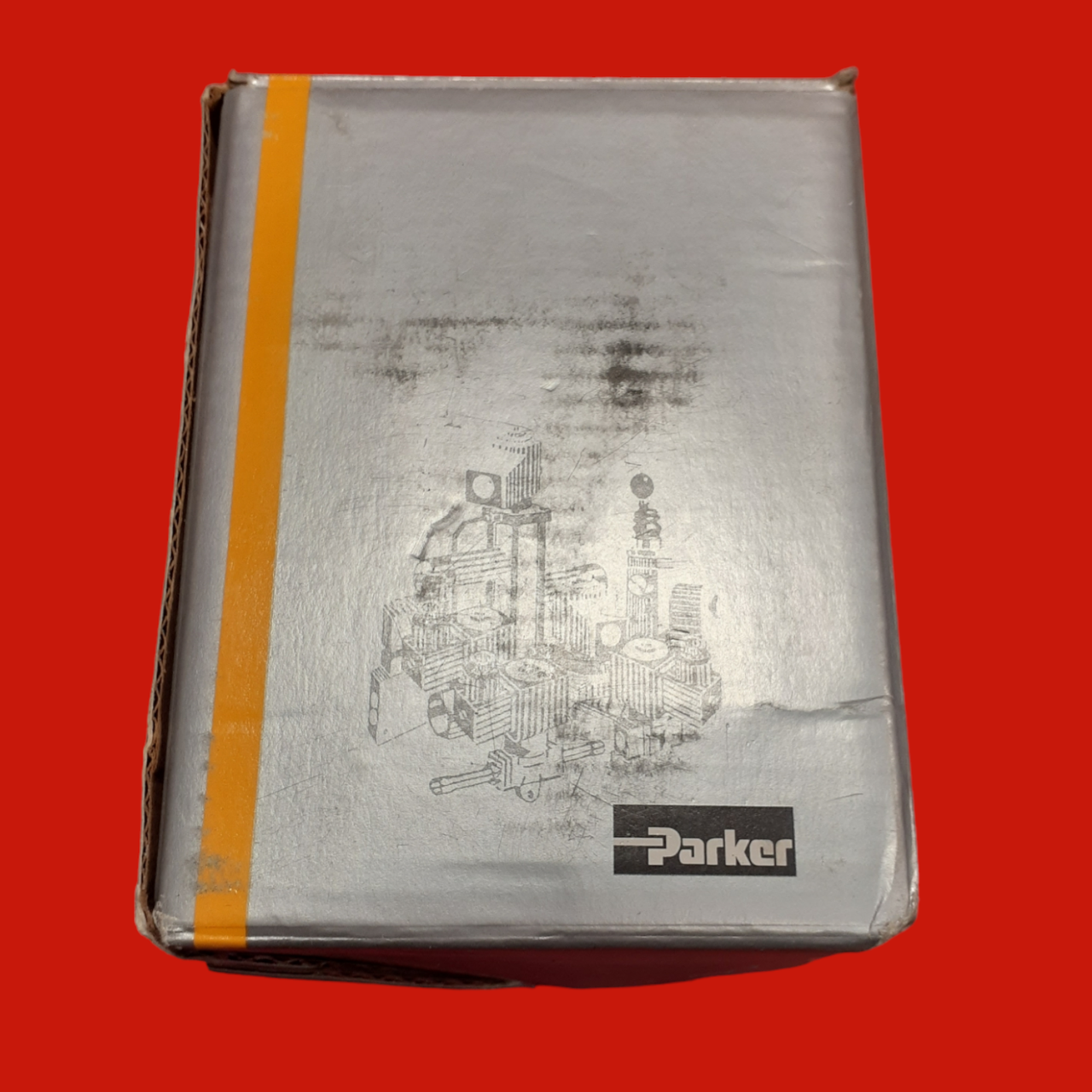

Parker 06F23C2140ACF4C05 2-Way Normally Closed, 3/8" NPT General Purpose Solenoid Valve
PN: 06F23C2140ACF4C05
Parker 2-Way Normally Closed, 3/8" NPT Solenoid Valves provide operating pressures up to 600 PSI and flow factors up to 5.5 CV's. They offer multiple body materials, mounting positions and coil options for all general purpose flow control applications.
- Body Material: Brass
- Product Series: Gold Ring Series
- Valve Type: 2-Way
- Flow Factor 1 (Cv): 3
- Function: Normally Closed
- Port Size: 3/8 inch
- Coil Type: 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X
- Input Voltage: 110/50-120/60
- Body Material: Brass
- Seal Material: NBR
- Voltage (V): 110/50-120/60
- Orifice 1 Size: 5/8 inch
- Flow Coefficient 1: 3 Cv
- Power Consumption: 11 Watt (AC) W
- Coil Type: 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X
- Maximum Pressure Differential: 150 psi (AC) psi
- Number of Ports: 2
- Actuation Type: Hung Diaphragm
- Media: General Purpose for Air, Liquids and Gases
- Port Type: NPT
- Orifice 2 Size: n/a
- Flow Coefficient 2: n/a
- Minimum Pressure Differential: 0 psi
- Minimum Fluid Temperature: 0 °F
- Maximum Fluid Temperature: 180 °F
- Coil Specifications Met: Class F
- Maximum Pressure Differential (psi): 150 psi (AC)
- Power (Watts): 11 Watt (AC)
- Orifice 1 Size (inch): 5/8
- Seal Material: NBR
