Product Description

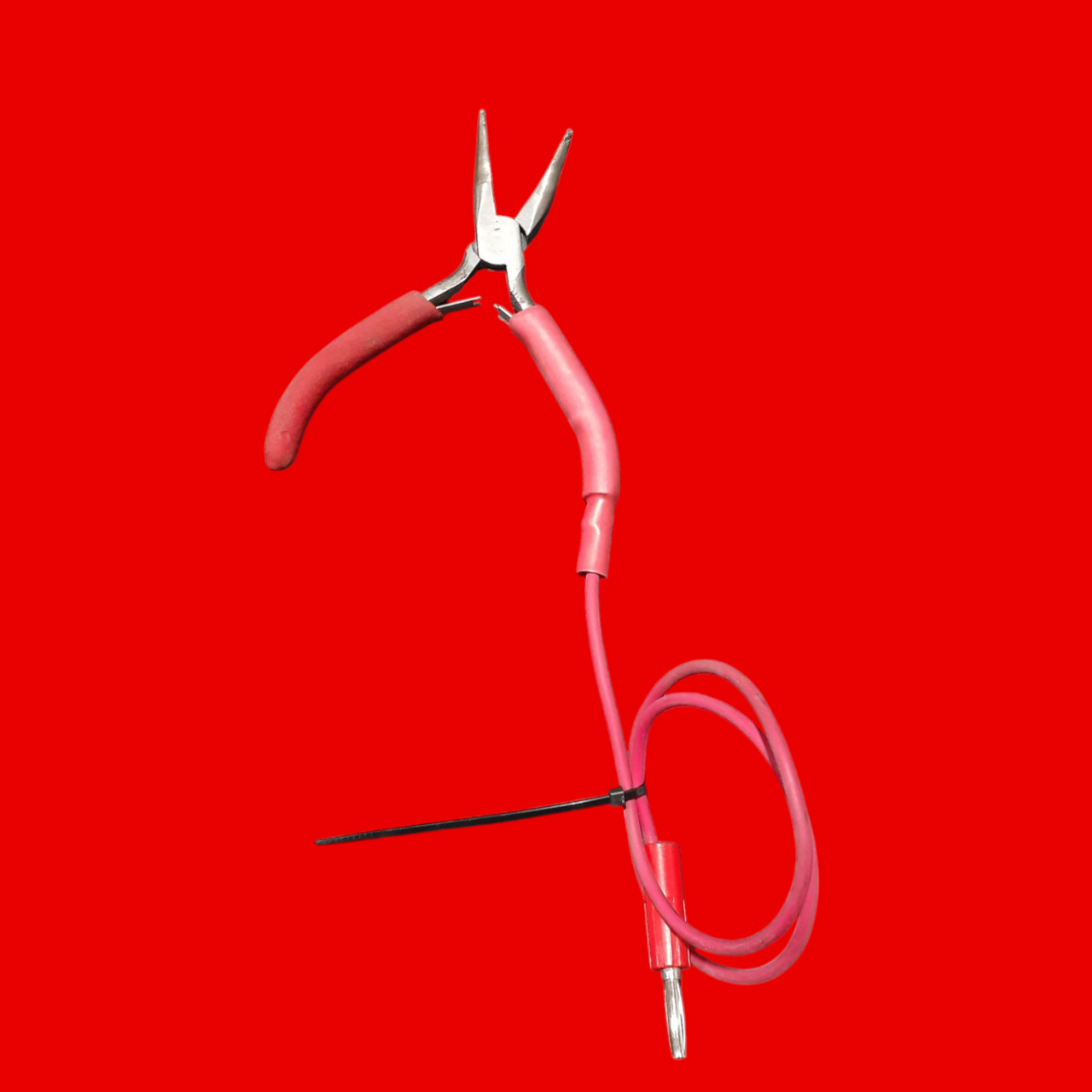

Omega TL-Weld Fine Wire and Thermocouple Welder with Included Accessories
The Thermocouple welder TL-WELD is designed for sensor manufacturers for the production of commercial grade thermocouple junctions, and for users of large numbers of exposed junction thermocouples such as test and development laboratories where multipoint temperature sensing of test pieces is required. No special skills are needed and most people will be capable of producing quality work with minimal practice.
The instrument can be operated via the front panel or by using the foot-switch provided. In addition to thermocouple work, the TL-WELD welder is used in many other applications involving the joining of wires to each other and to metal surfaces. This model is suitable for welding wires up to 1.1 mm diameter and has an argon gas shield facility. A satisfactory thermocouple junction is produced without using argon, but where argon is available a momentary purge is automatically triggered immediately prior to the weld to give optimum weld integrity.
Specifications:
- Diameter: 9.9 in
- Energy Output, Max: 60 J
- Energy Output, Min: 0 J
- Height: 4.7 in
- Power Consumption: max 170 VA
- Ratchet Action: false
- Supply Power Note: Standard: 110 to 120/ 220 to 250 Vac selectable, 50 to 60 Hz
- Supply Voltage: 110 to 120 Vac
- Weight: 4 kg
- Welding Capacity: Wires up to 1.1 mm (0.043") in diameter
- Width: 8.7 in
