Product Description

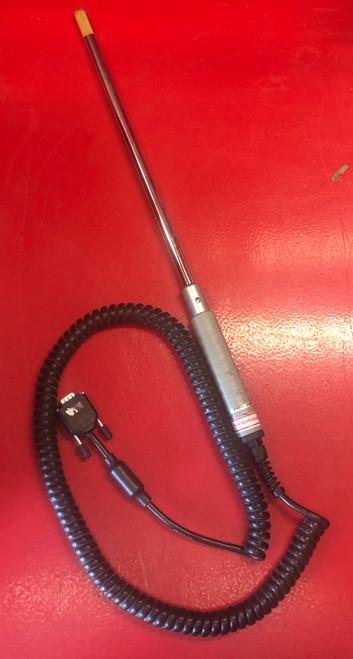

Omega HX93C Humidity and Temperature Transmitter
The OMEGA Model HX93 is a relative humidity and temperature transmitter that provides temperature compensated RH output and linearized RH and temperature outputs. A thin film polymer capacitor senses relative humidity, and the temperature sensor is a thin film permalloy RTD. The sensors are protected by a stainless filter that is easily removable for cleaning. The case and entry connectors provide watertight protection. An unusually low compliance voltage (6 volts) allows the use of large impedances for longer wire runs.
Relative Humidity:
- Input Voltage Range: 6 to 30VDC (polarity protected)
- RH Range: 3% RH to 95% RH
- RH Accuracy: ±2% RH
- RH Temperature Compensation Range: -4°F to +167°F (-20°C to +75°C)
- RH Output: 4 to 20 mA for 0 to 100% RH
- Repeatability: ±1% RH
Temperature:
- Input Voltage Range: 6 to 30 VDC (polarity protected)
- Temperature Range: -4°F to +167°F (-20°C to +75°C)
- Accuracy: ±1F (±0.6°C)
- Temperature Output: 4 to 20 mA for -20°C to +75°C
- Temperature Time Constant: (for 63.2% response) Less than 9 seconds in moving air (1M/sec); Less than 30 seconds in still air.
- Repeatability: ±.5°F (±0.3°C)
