Product Description

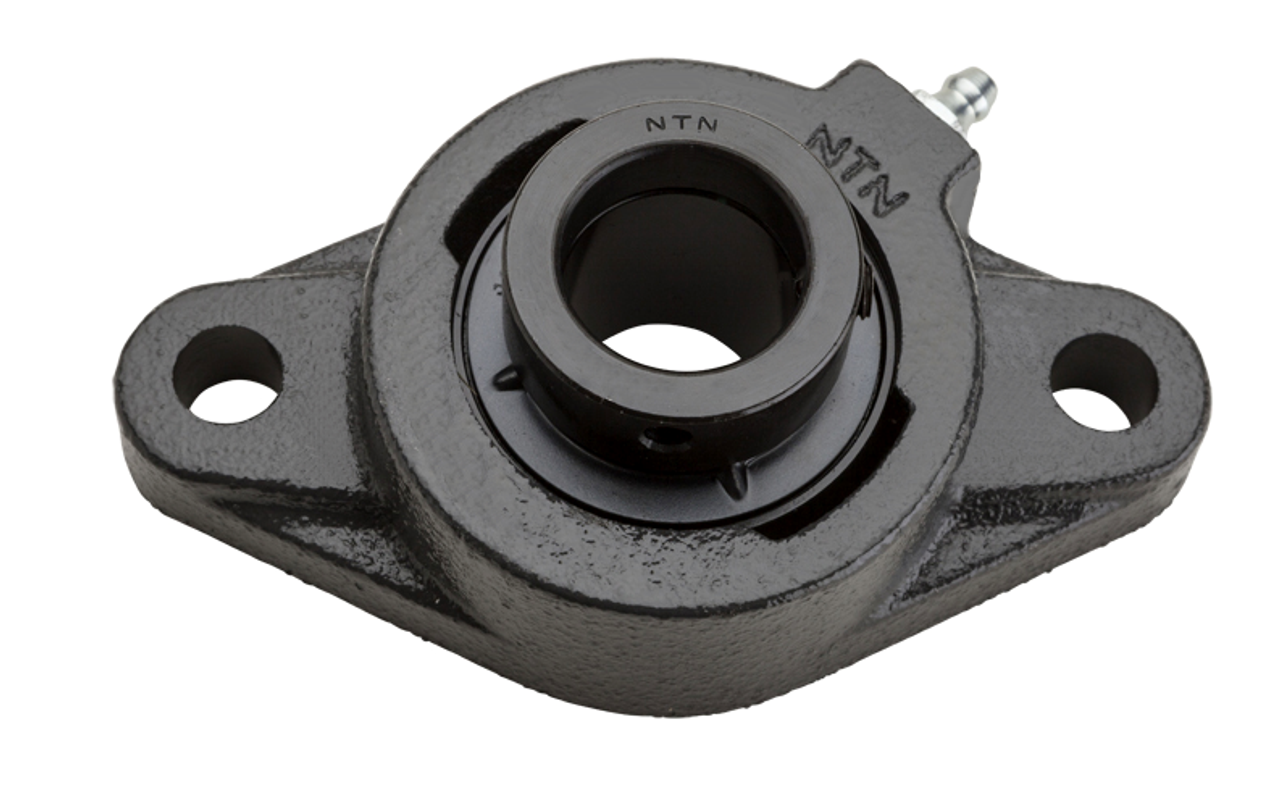

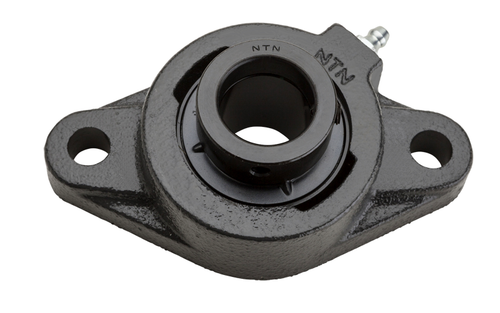

NTN UELFLU-1 2-Bolt Flange
- HOUSING MATERIAL: Cast Iron
- BOLT HOLE SPACING: 3.891 in
- TEMPERATURE RANGE [MIN]: -40 °F
- HOUSING HEIGHT: 2 3/4 in
- TEMPERATURE RANGE [MAX]: 250 °F
- MOUNTED UNIT DUTY: Light-Duty
- LOCKING DEVICE: Eccentric Locking Collar
- SEAL TYPE: Contact Seals
- DYNAMIC LOAD RATING: 3150 lbf
- FLANGE TYPE: 2-Bolt Flange
- SHAFT DIAMETER: 1 in
- HOUSING LENGTH: 4 29/32 in
- FLANGE THICKNESS: 19/32 in
- BEARING INSERT: A-UEL205-100D1
- SEAL MATERIAL: Nitrile Rubber
- CENTER OF BEARING TO BACK OF INNER RING: 0.689 in
- STATIC LOAD RATING [MAX]: 1760 lbf
- BEARING TYPE: Ball Bearing
- END TYPE: Open End
- SERIES: UELFLU
- BEARING DESIGN: Non-Expansion
- HOUSING CONSTRUCTION: 1 Piece
- LENGTH THROUGH BORE: 1.748 in
- CENTER OF BEARING FROM END: 0.75
- BOLT CIRCLE DIAMETER: 3 57/64 in
- LIMITING SPEED: 5900 rpm
- TIGHTENING TORQUE [MAX]: 69 in lb
- OVERALL WIDTH: 1 13/16 in
- LUBRICATION: Relubricatable
- BOLT HOLE SIZE: 15/32 in
