Product Description

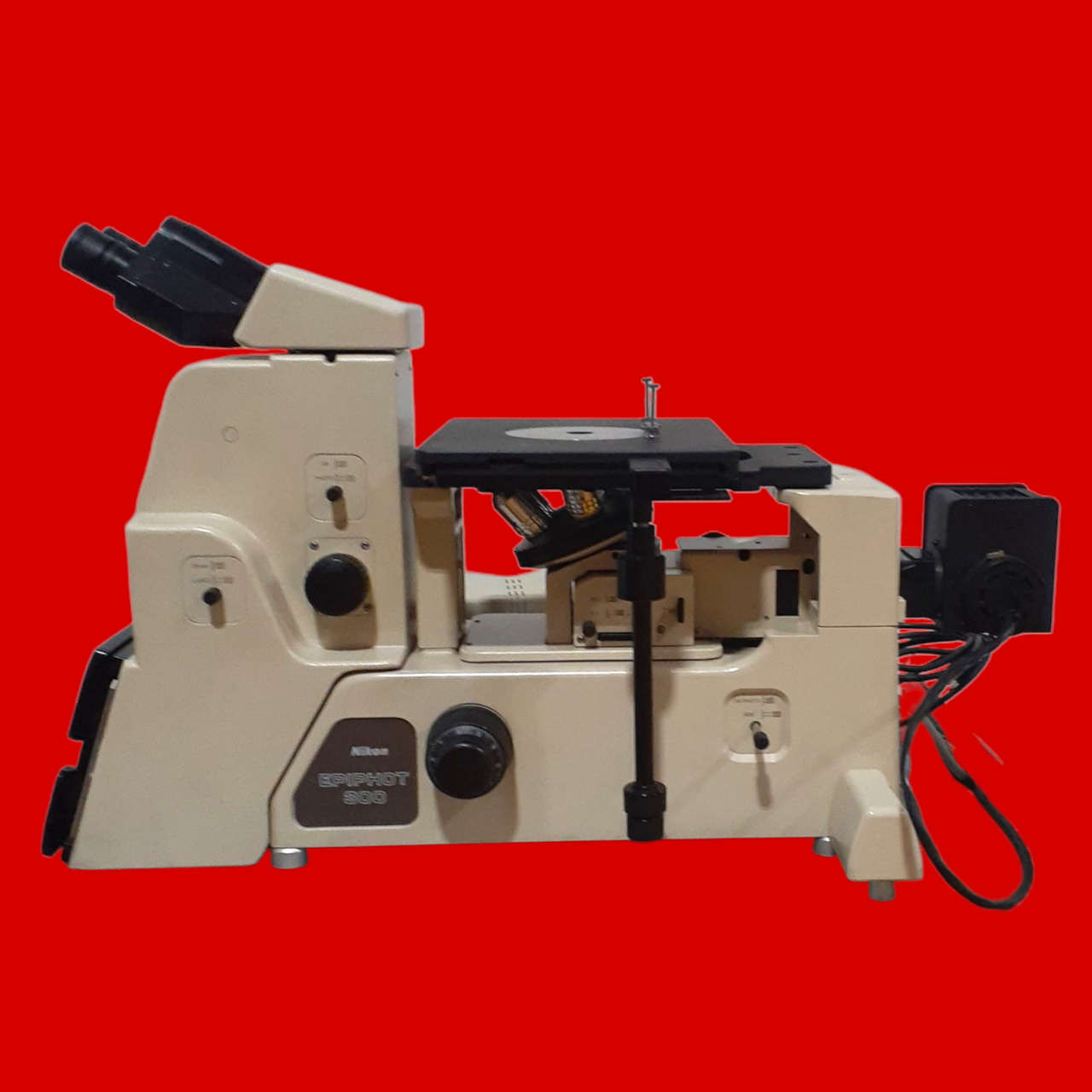

Nikon Epiphot 300 Inverted Metallurgical Microscope with Multi-Pointer Sensor System Controller, EBBSC-3420 and PixeLINK Camera, PL-D672CU

Model: Epiphot 300

A model of technological integration, Nikon's EPІРНОТ 300 combines the superb CF Infinity Corrected Optical System, with a matchless degree of operator comfort, and rock solid stability. Add to this a full range of photomicrographic capabilities, as well as scale imprinting, and you have a cutting edge instrument providing the highest possible optical performance.

CF Infinity Corrected Optical System An ideal optical system which combines Nikon's renowned CF Optics with Infinity Corrected design for even greater system flexibility. The result is sharp and clear images you can depend on.

2.5X Zoom from 0.8 to 2X Changes in magnification are simultaneously applied to both observation and photomicrography. The zoom dial click-stops at 1.0, 1.25, 1.5 magnifications, allowing you to change magnifications without removing your eye from the sample.

Built-in Photomicrographic System Permits photomicrography in both the 35mm and 4x5 in. large film formats. 60% integrated average auto exposure photomicrography is possible.

Reticle Imprinting Because the reticle is inserted at the primary image plane position, the micrometer maintains fine focus without being affected by the state of the specimen surface being observed. Austenite reticles and grids can also be imprinted.

Operator-friendly Design Comfort and ease of operation were prime design considerations. The lowered stage (71mm/2.8 in. lower than the previous model) and the universal joint stage handle which allows the stage to be moved by hand at a fixed position both contribute to smooth operation. The built in interlocking aperture diaphragm which automatically adjusts during brightfield/ darkfield changeover, and ergonomically located major controls within easy reach also combine to create a comfortable operating environment.

Stable and Reliable Front and rear support of the stage, a low profile design, and a nosepiece focusing system, all make for a super stable, extremely rugged instrument.

Specifications:

• Appearance: Box Type
• Eyepiece tube: Fixed binocular eyepiece tube Rotation of eyepiece reticle is compensated
• Eyepieces: CFWN 10x/20EPM
• Light distribution: 4-way (observation/side port/ 35mm/large format) Obs. 100, Obs./side port 20/80, Obs./35mm 20/80, Obs./large format 20/80
• Intermediate magnification: 0.8~2X 20oming (stops with a click at 1.0X, 1.25X, 1.5Х)
• Scale imprinting Position Type: Inserting at primary Image plane Micrometer scale, Grain reticle (Austenite reticles No.1-8 and Grid)
• Epi-illuminator Light source: Built-in centerable field and aperture diaphragms, 12V-50W halogen
• Focusing system: Nosepiece focusing
• Stroke: 4mm (3mm upward, 1mm downward)
• Coarse: 4mm/rotation
• Fine: 0.1mm/rotation
• Minimum Reading: 1um coarse motion torque adjustable
• Objectives: CF PLAN 2.5X/0.75, 10X/0.30, 20X/0.4, 50X/0.80, 100X/0.95

PixeLINK PL-D672 Camera

• Camera Category: Area Scan
• Camera Series: Microscopy
• FPS: 170
• Interface: USB3 Vision
• Manufacturer: PixeLINK
• Resolutions: 2 MP
• Scanning Mode: -
• Signal System: Monochrome
• Technology: USB3 Vision Cameras

Multi-Pointer Sensor System Controller, EBBSC-3420

• Control Interface: Operates via ISO, EXP, ADJ, MODE, MENU, and SELECT buttons
• Display: LCD Screen for displaying system information and measurements
• Application: Designed for precise measurement control in conjunction with microscopes

*POLAROID PACK FILM HOLDER SCREEN CRACKED. PLEASE SEE PICTURES.
