Product Description

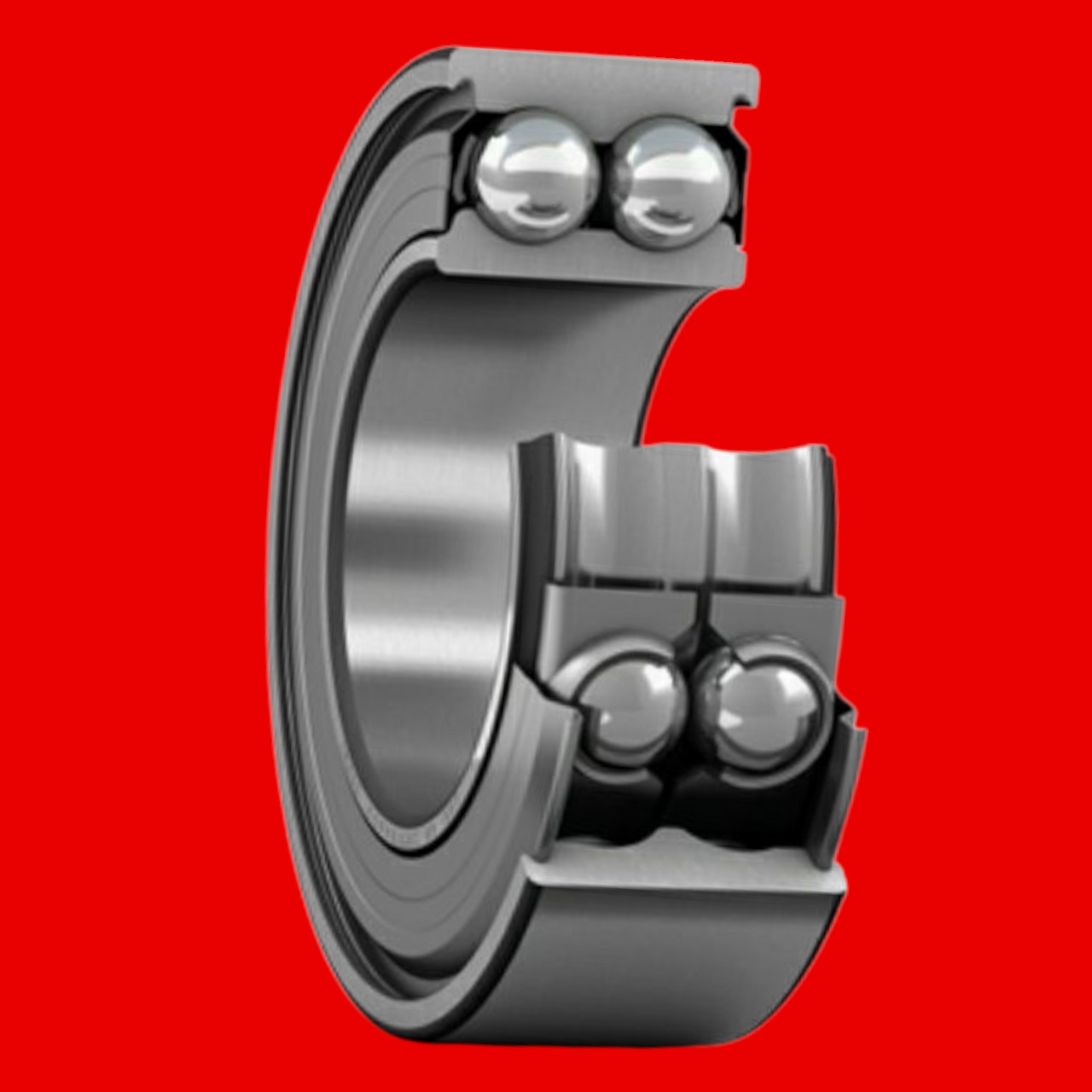

MRC 5305CFF Double Row Cylindrical Bore Angular Contact Ball Bearing, 0.98" ID
PN: 5305CFF
- Cage: Sheet Metal
- Duplex Type: Single
- Bearing Type: Unmounted, Angular Contact
- Precision Rating: ABEC 3
- Limiting Speed - Sealed: 7500 rpm
- Static Load Rating: 20.4 kN
- Ball Material: Steel
- Material Bearing: Steel
- Element Material: Bearing Steel
- Seal Type: Non-Contacting Seal
- Inch/Metric: Metric
- Temperature Range [Max]: 250 °F
- Cage Material: Bearing Steel
- Cage Type: Metal
- O.D. Type: Cylindrical
- Snap Ring: No Snap Ring
- Radial Internal Clearance: C3
- Temperature Range [Min]: -22 °F
- Rolling Element: Ball
- Flush Ground: No
- Rows of Balls: Double
- Limiting Speed - Oil: 10000 rpm
- O.D.: 2.44 in, 62 mm
- Static Load Rating [Max]: 4,590.00 lbf
- Precision: Standard
- Row Type: 2
- Ring Type: Solid Inner Ring and Solid Outer Ring
- No. of Rows: Double
- Preload Level: C3 Axial Clearance
- Seal Material: Tinplate
- Lubricant: Grease
- Enclosure: Shield on Both Sides
- Capacity: Standard Capacity
- I.D.: 0.98 in, 25 mm
- Dynamic Load Rating: 30.7 kN
- Width: 1 in, 25.4 mm
- Radial Internal Clearance Specification: Normal Clearance
- Precision Level: Standard (ABEC 1)
- Locking Device: No Locking Device
- Series: 5300C
- Bearing Class: Class 6 / P6
- Fillet Radius: 1 mm
- Limiting Speed - Grease: 7500 rpm
- Bore Type: Cylindrical
- Contact Angle: 30 Degree
