Product Description

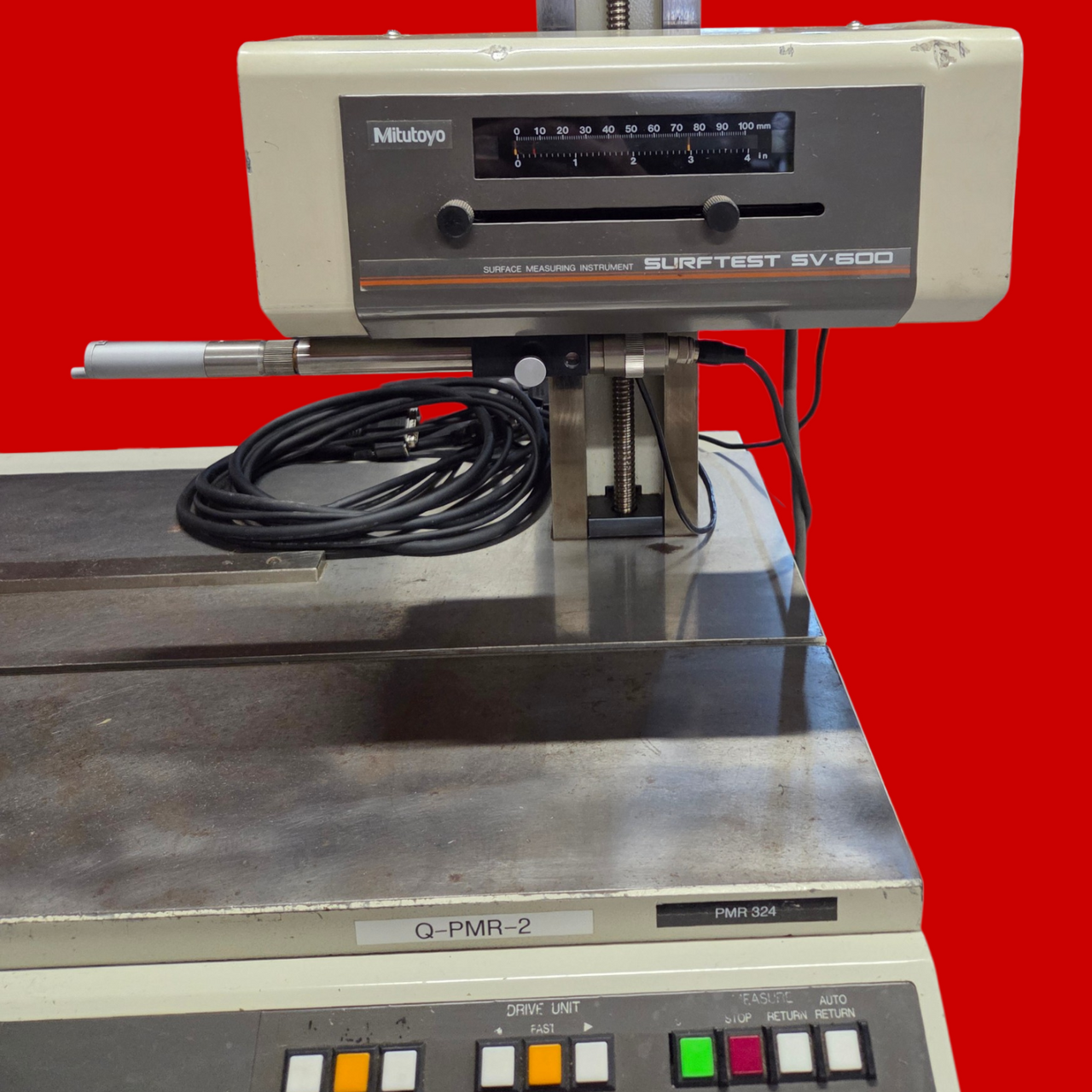

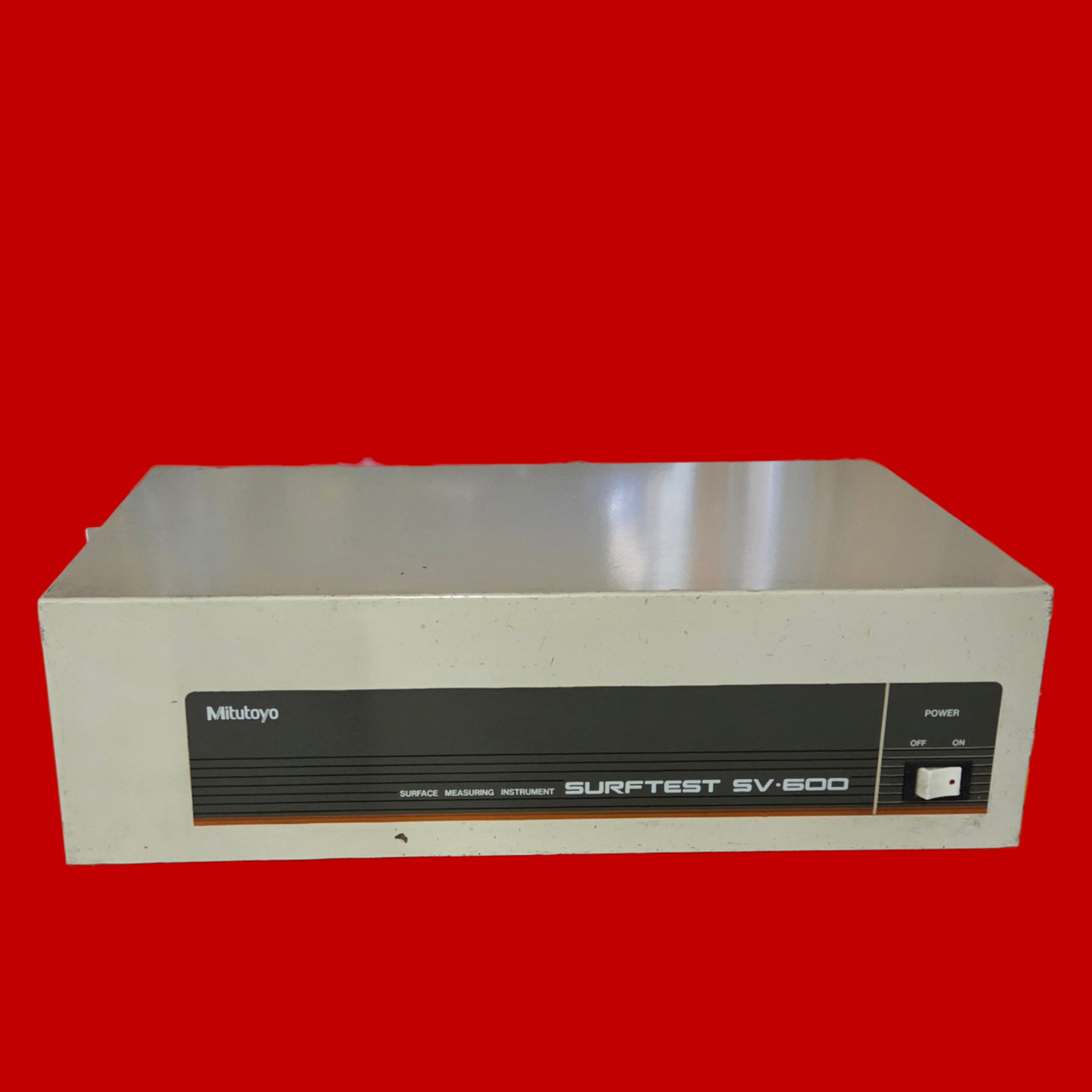

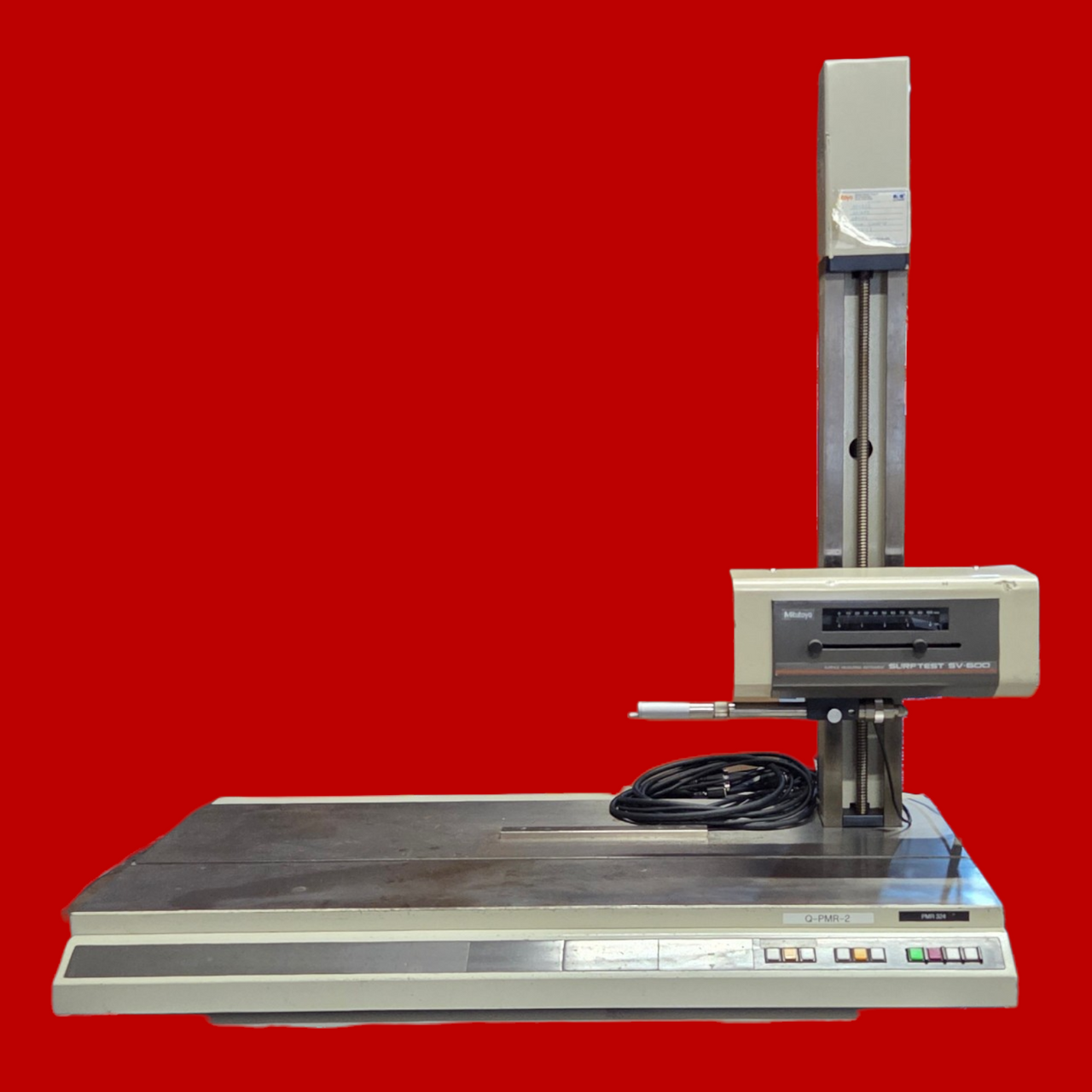

Mitutoyo Surftest Surface Roughness Testing System, SV-600
PN: SV-600
The Mitutoyo Surftest SV-600 is a high-accuracy, column-moving type surface roughness testing system used for advanced 2D and 3D surface analysis of workpieces. It is a sophisticated instrument designed for demanding measurement applications in a laboratory or quality control setting.
Key Features and Capabilities:
- High Accuracy: The system incorporates high-accuracy glass scales on its X and Z2 axes to ensure precise positioning and reliable results, particularly for horizontal roughness parameters.
- Versatile Measurement: It is capable of both conventional surface roughness measurement and detailed fine contour analysis. With optional software and accessories, it can also perform 3D surface analysis.
- Advanced Software: The Surftest SV-600 uses dedicated data analysis software (SURFPAK or FORMTRACEPAK) for data management, various analysis programs, and report generation.
- Flexible Configuration: The column-moving type design accommodates a wide range of workpiece sizes, including large or heavy items like engine blocks.
- User-Friendly Operation: An easy-to-operate control box with a joystick and manual fine-adjustment knobs allows for convenient remote positioning and measurement control.
- Durable Construction: A ceramic X-axis drive unit guide provides superb anti-abrasive properties and requires no lubrication.
Technical Specifications (General):
- Detector Method: Differential inductance
- Measuring Force: 0.75mN
- Stylus Tip: Diamond, 60° cone, 2µm tip radius
- X-axis Resolution: 0.05µm (1.97µin)
- Z2-axis (column) Resolution: 1µm (39.4µin) (ABS scale)
- Traverse Range (X-axis): 100mm (4")
- Vertical Travel (Z2-axis): 500mm (20")
