Product Description

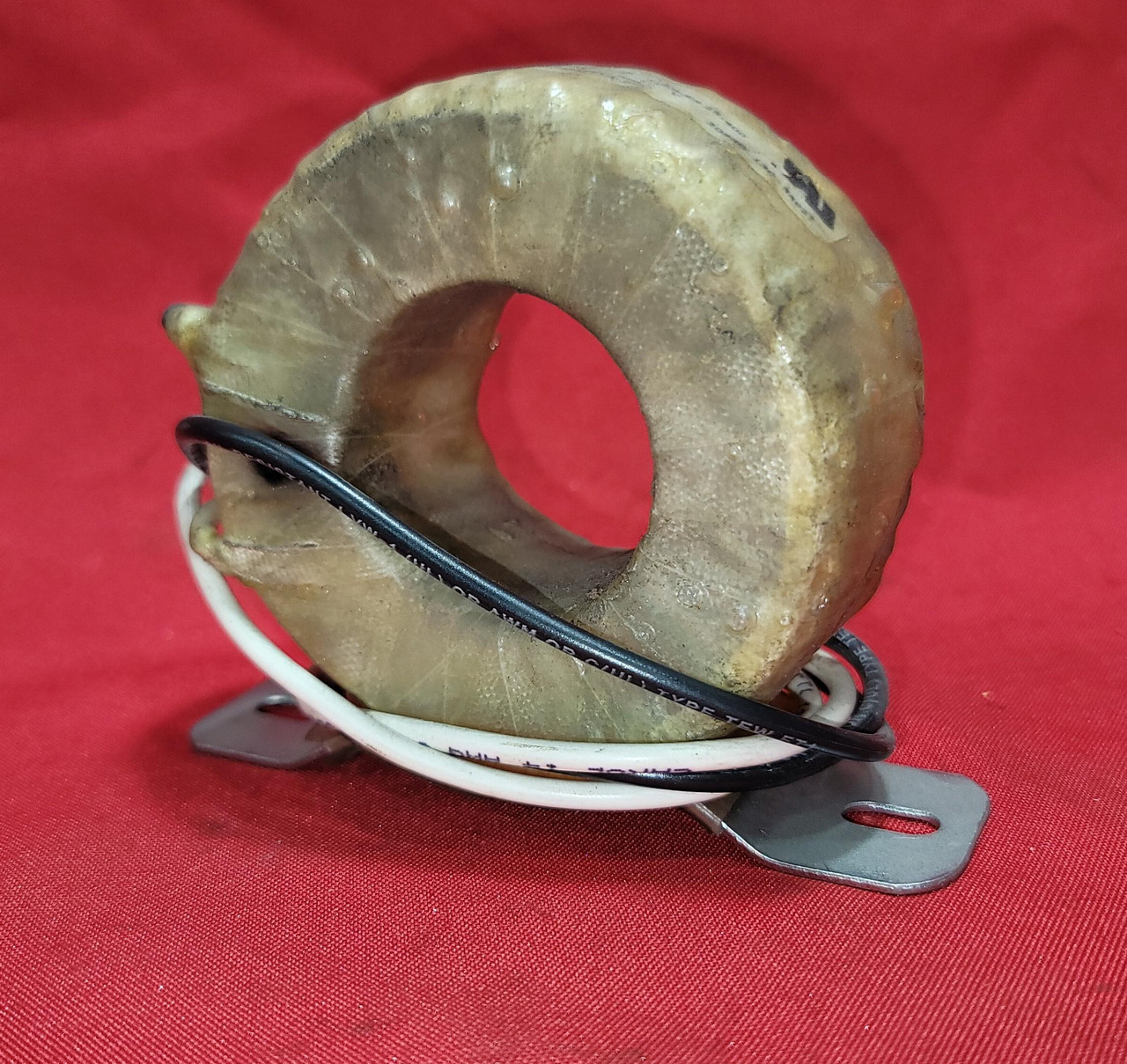

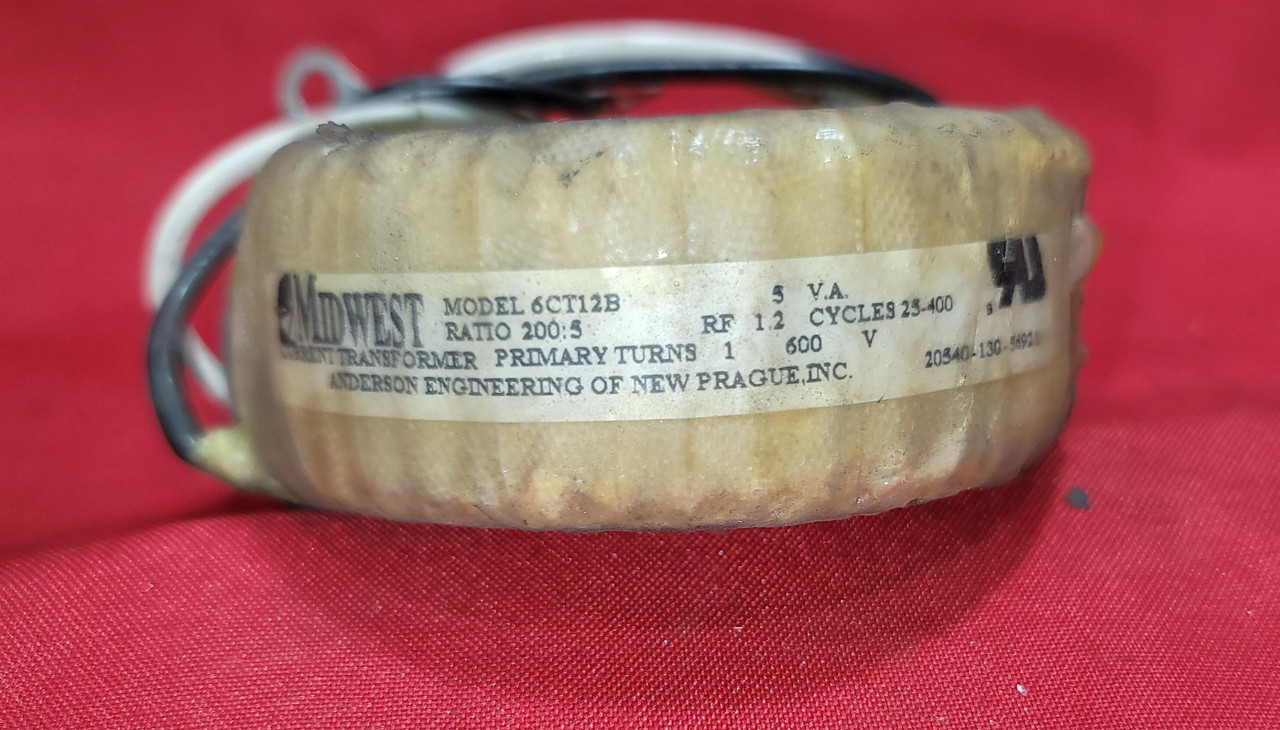

Midwest Current Transformer 6CT12B
The CT Series is used extensively in current monitoring, metering and/or protection applications. The CT Series are built with a M4 electrical grade steel core, wound with copper magnetic wire, wrapped with fiberglass insulating tape and dipped in a poly resin for protection. The CT series are manufactured with 2 foot long lead wires or screw terminals. The standard CT series current transformer is UL recognized, CSA approved, meets the requirements of IEEE/ANSI C57.13 and Rohs. Foot Mount Bracket .
| Ratio | 200:5 |
| Window Size | 1.25" |
| Outside Dimensions | 3.75" |
| Width | 1.625" |
| Volt Amps | 5 VA |
| Accuracy | 0.50 |
| Leads | Yes |
| Terminal | N/A |
| Foot Mount | Yes |
Standard Features:
-
The VA output capacity is from 2VA to 15VA
-
Ratio to 5 amps
-
Leads are 24" in length
-
Toroid form (donut type)
-
600 Volt insulation is standard
-
Poly resin protective coating
