Product Description

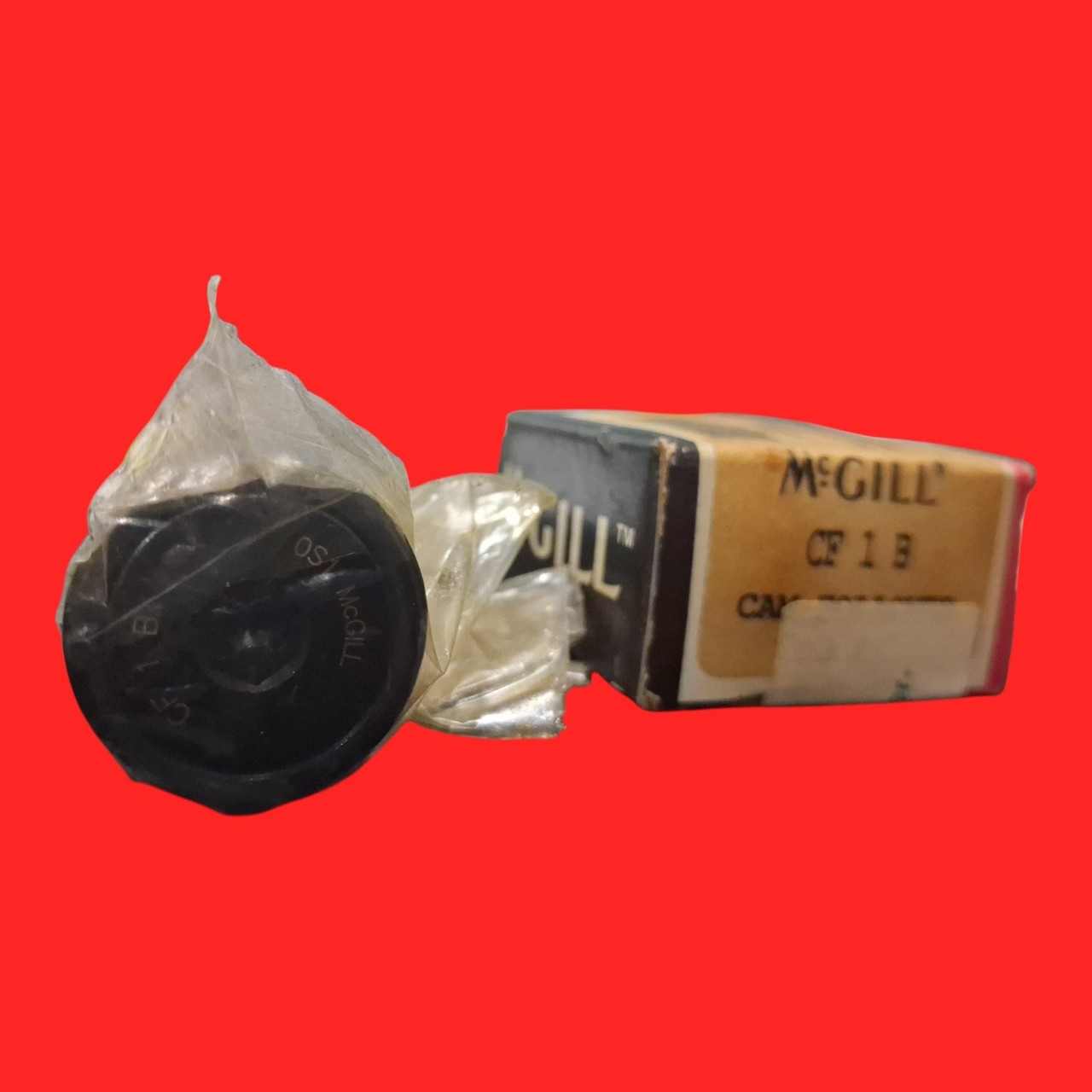

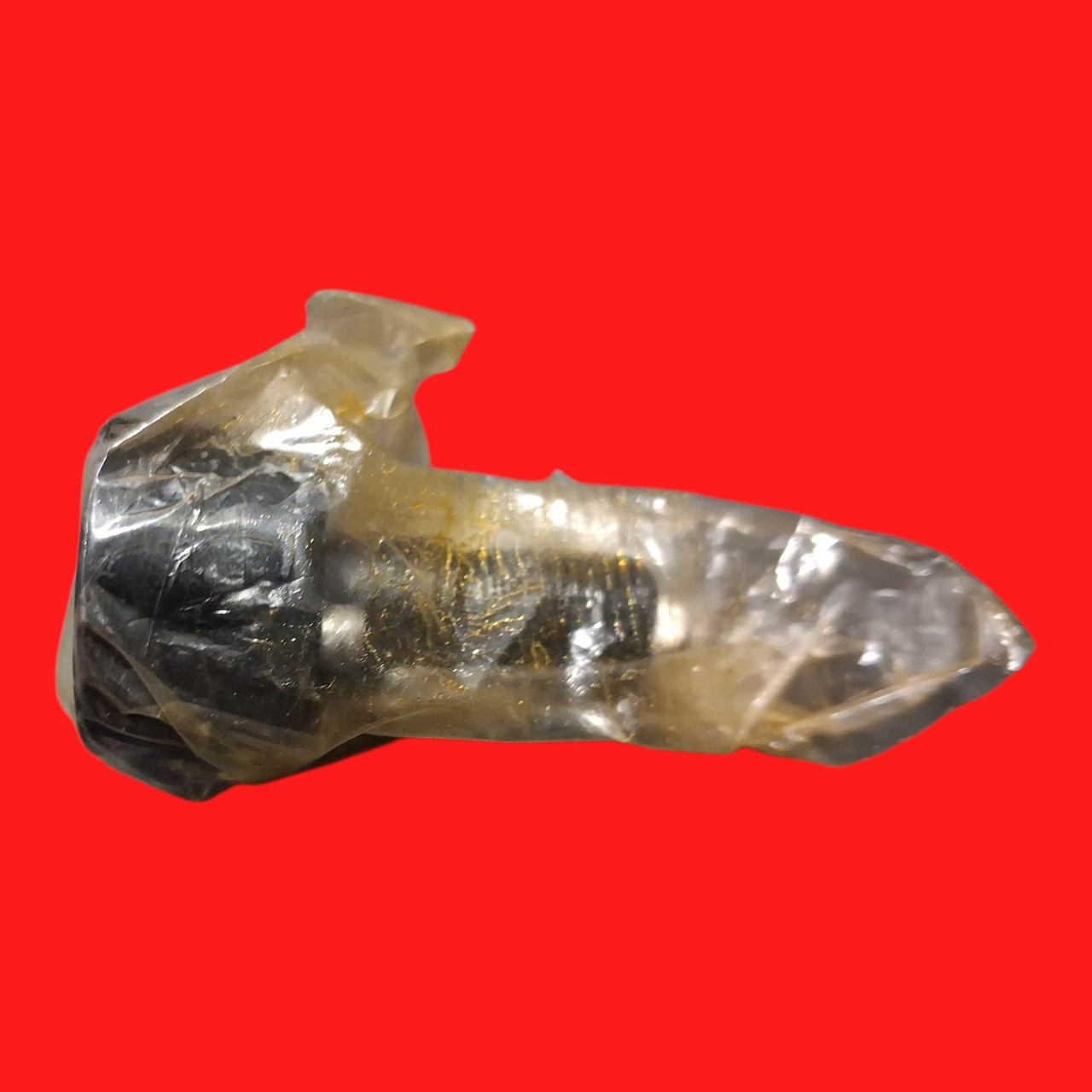

McGill CF 1 B Flat Cam Follower-Hex Head
Inch CAMROL (CF) Series, 1.0000 in Roller Dia, 0.6250 in Roller Width, 0.4375 in Stud Dia, 1.0000 in Stud Length, Open, Chrome Steel Material
- The needle roller diameter, length, and number have been optimized to provide a high dynamic and static load rating, contained within industry standard bearing envelope dimensions
- Heavy section outer helps support radial loading and provide proper rolling element support
- Cylindrical OD can improve performance in certain applications such as improved track capacity by maximizing the contact area with the track
- Heat treatment used to precisely harden working surfaces of the raceway and flange; the hardened surfaces provide support for the rolling element contact stresses, while keeping the core of the inner ductile to help absorb shock loads
- Similar to the flange, the endplate must provide a seal surface for the LUBRIDISC® seal and resist wear from incidental contact with the outer or rollers; the hardened and ground endplate provides a sealing surface with LUBRI-DISC® seal option
- Factory lubricated with a medium temperature grease
- All McGill stud type Cam followers include one or two oil hole plugs (depending on the number of holes) to help provide proper lubrication path to the rolling elements and prevent contamination from entering the bearing through an unused oil hole
