Product Description

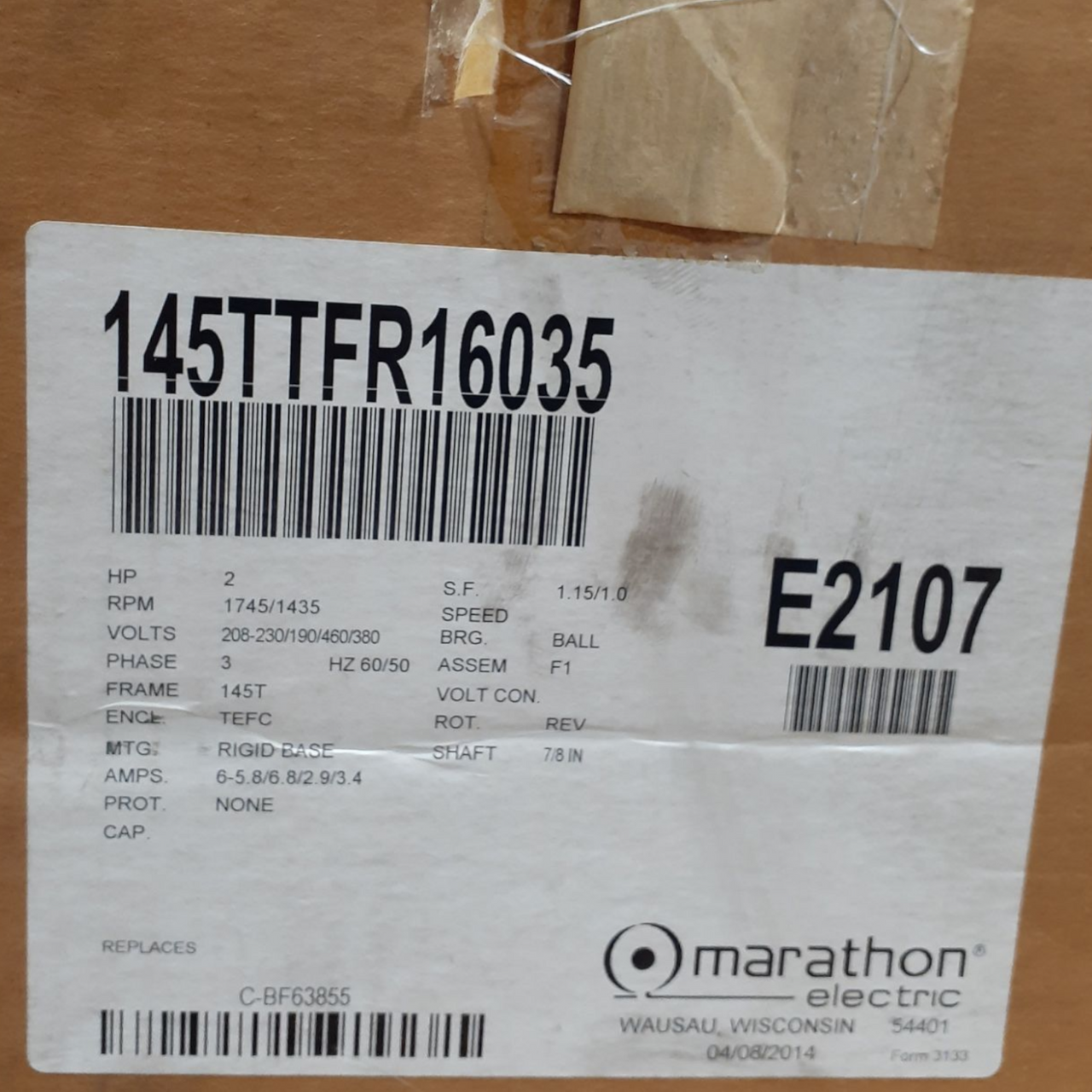

Marathon Electric 145TTFR16035 General Purpose Motor, 2 & 2 HP, 3 Ph, 60 & 50 Hz, 230/460 & 190/380 V, 1800 & 1500 RPM, 145T Frame, TEFC - E2107
PN: 145TTFR16035
Features
- UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
- Continuous duty cycle design allows maximum operation at the rated power specifications.
- Class B or F Insulation protects motor for a maximum temperature rating.
- Permanently lubricated, double shield bearings extend the lifetime of the motor.
Specifications
- Phase: 3
- Output HP: 2 & 2 Hp
- Output KW: 1.5 & 1.5 kW
- Voltage: 230/460 & 190/380 V
- Speed: 1745 & 1435 rpm
- Service Factor: 1.15 & 1.0
- Frame: 145T
- Enclosure: Totally Enclosed Fan Cooled
- Thermal Protection: No Protection
- Efficiency: 86.5 & 84 %
- Ambient Temperature: 40 °C
- Frequency: 60 & 50 Hz
- Current: 5.8/2.9 & 6.8/3.4 A
- Power Factor: 75.6
- Duty: Continuous
- Insulation Class: F
- Design Code: B
- KVA Code: L
- Drive End Bearing Size: 6205
- Opp Drive End Bearing Size: 6203
- UL: Recognized
- CSA: Y
- CE: Y
- IP Code: 43
- Number of Speeds: 1
