Product Description

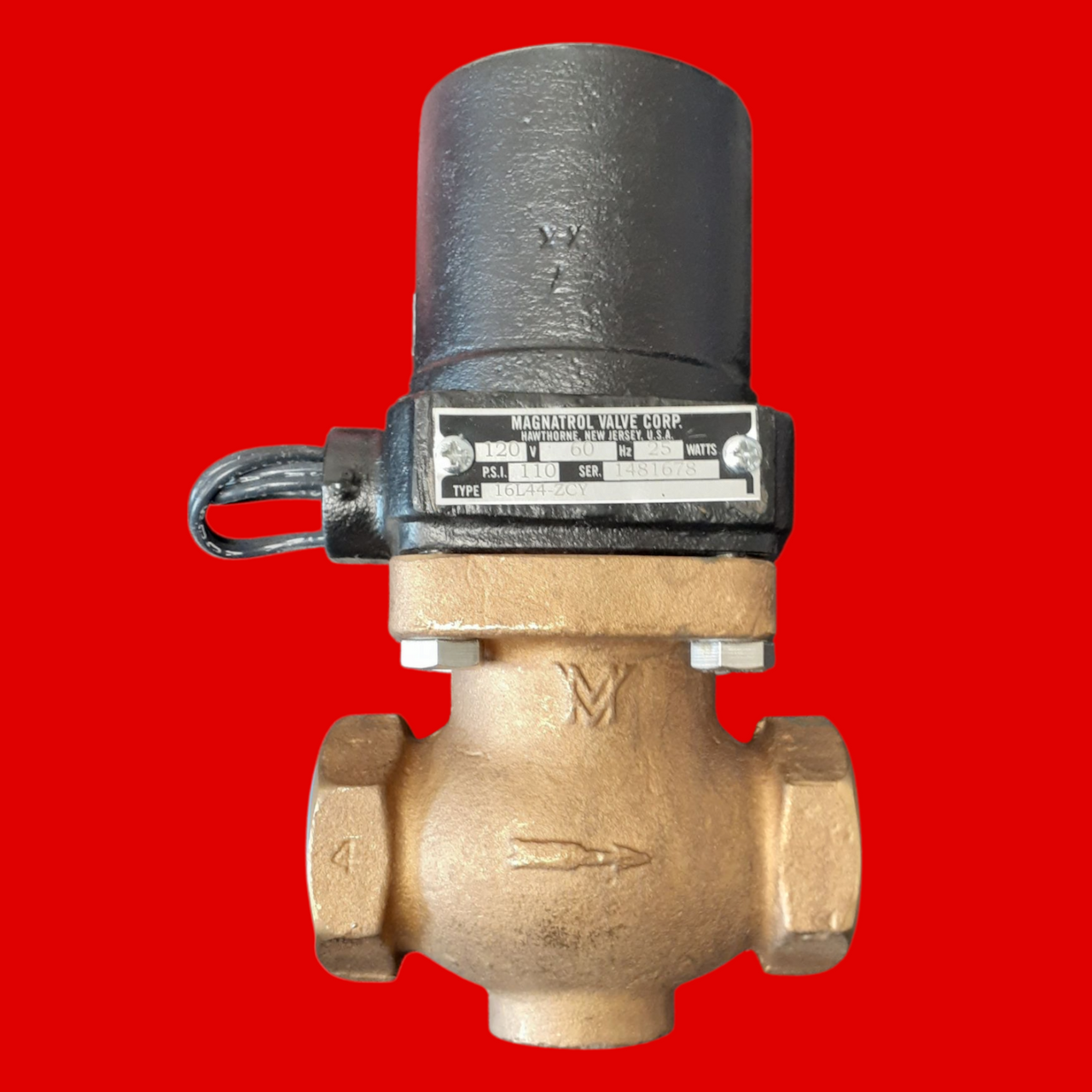

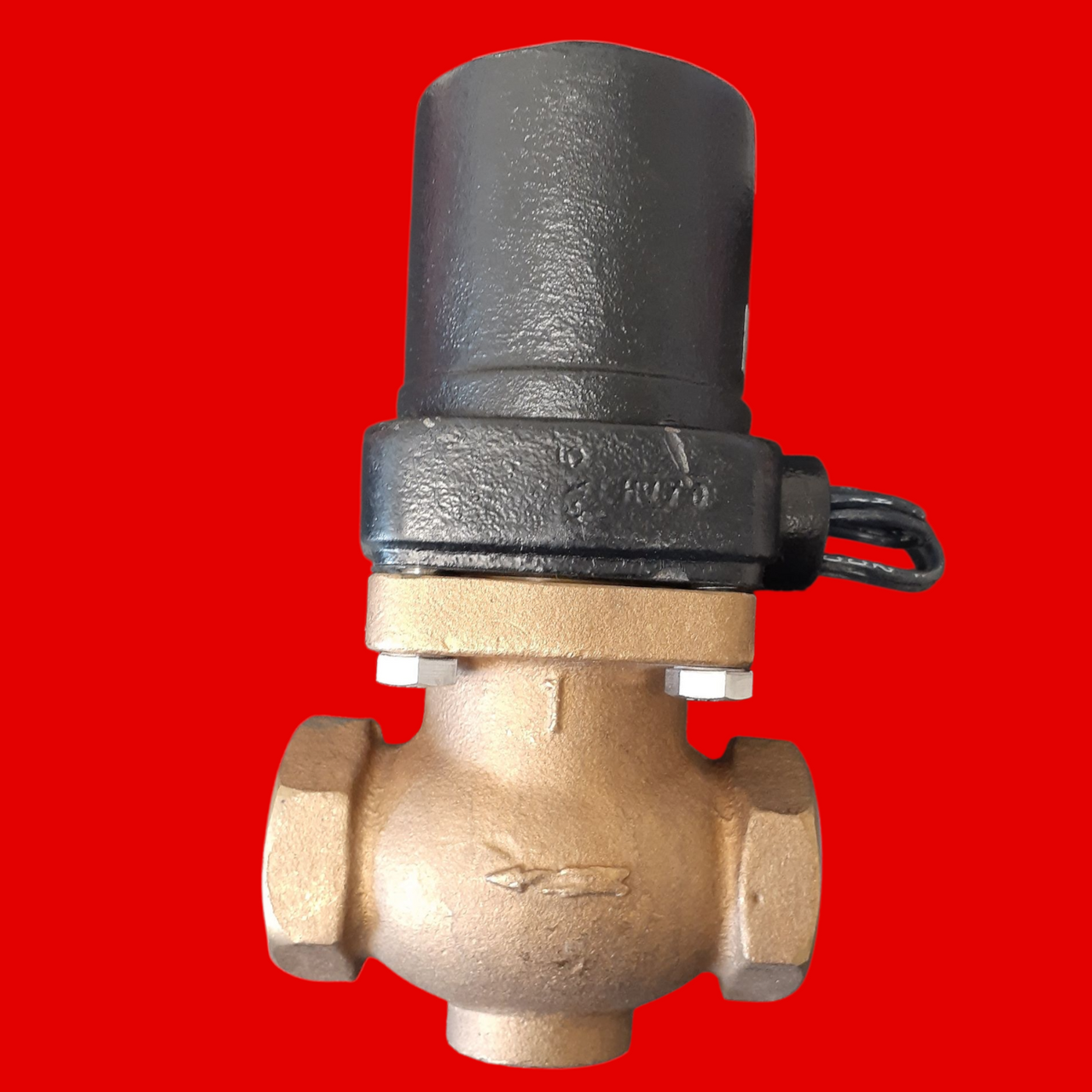

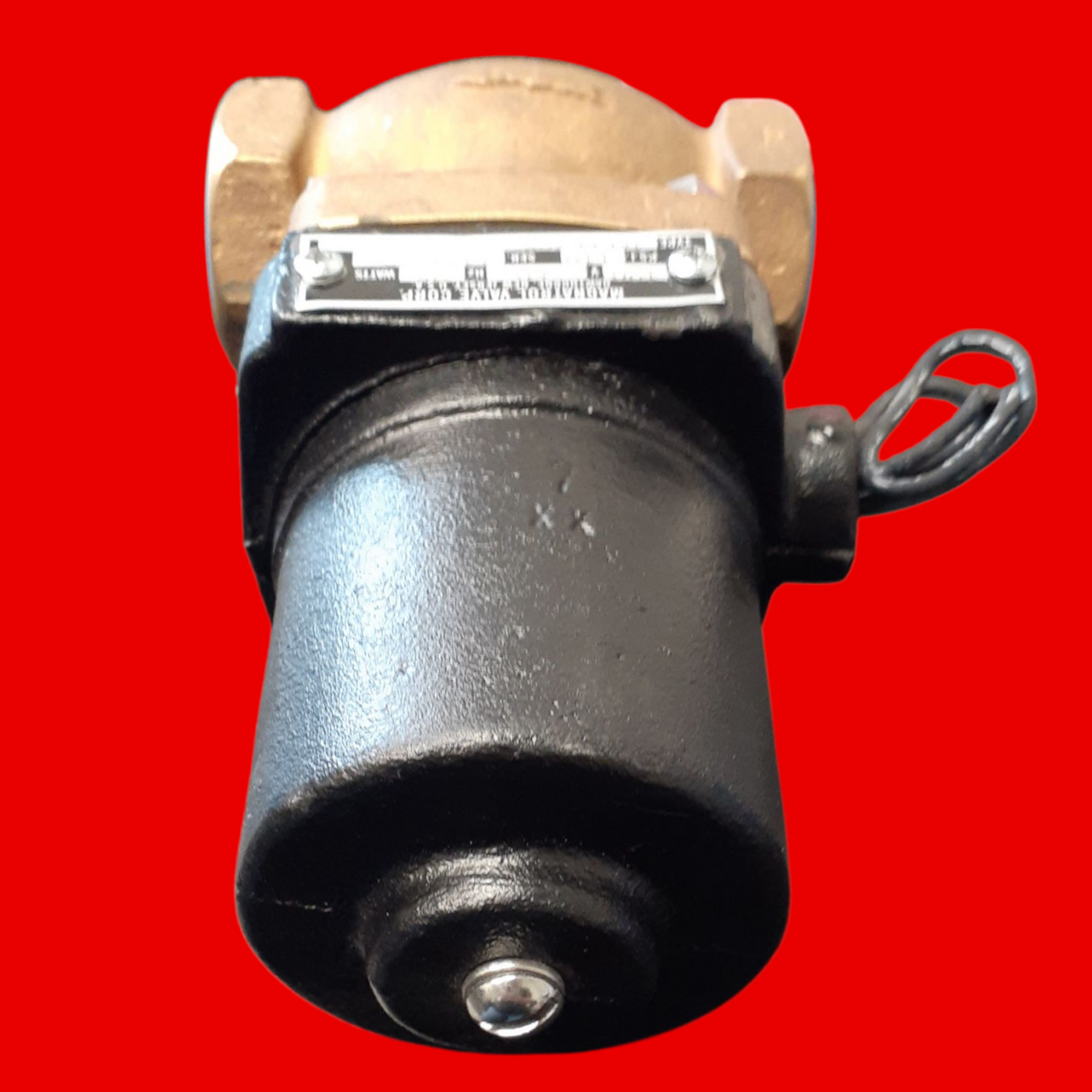

Magnatrol 16L44-ZCY 1" Type "L" Full Port Normally Closed Bronze Solenoid Valve
Type: 16L44-ZCY
This solenoid valve opens when energized and closes when de-energized. When the coil is energized the pilot valve opens, relieving the pressure above the piston, which is then lifted from its seat by the plunger. Upon de-energizing the coil, a spring closes the pilot valve and opens a bleed passageway to permit pressure to build above the piston and seat it.
Fluid Temp: -350°F to 400°F | Max. Static Pressure - 300 PSI
- Pipe Size: 1"
- Max Diff. PSI: 110
- Type No: 16L44
- Watts AC: 25
- Amps Hold 120-60: 0.4
- Amps Inrush 120-60: 1.5
- Watts DC: 18
- 212 °F
- 400 °F
- 13
- Operation: Normally Closed
