Product Description

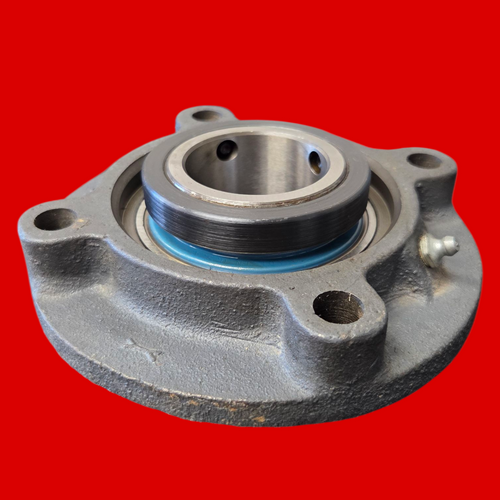

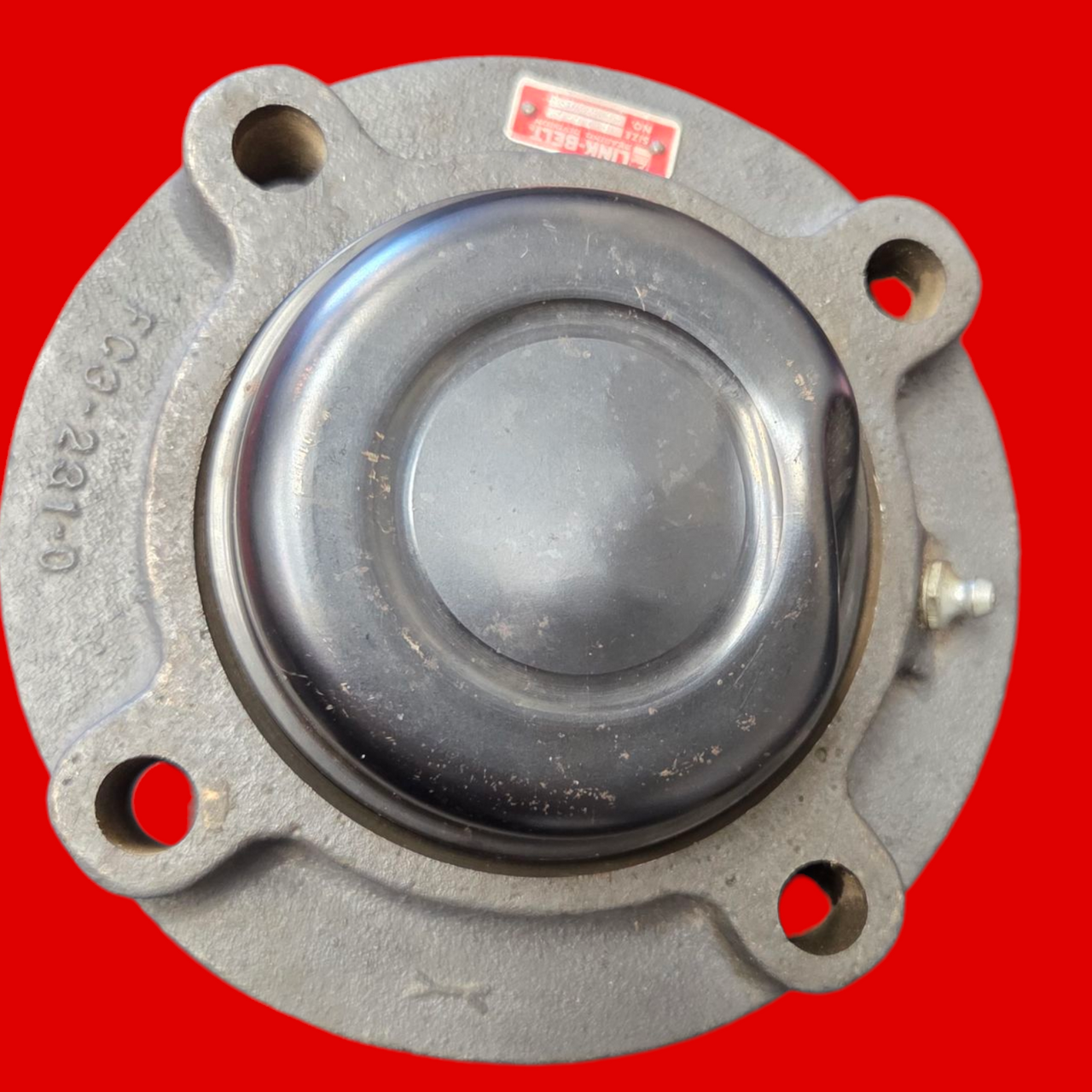

Link-Belt FC3U231NC 200 Series Standard-Duty 4-Bolt Flange Block, 1-15/16" Bore
PN: FC3U231NC
- Product Type: Flange-Mount Ball Bearing Units
- Bore Diameter: 1-15/16 in
- Housing Material: Cast Iron
- Duty Type: Standard Duty
- Bolt Circle Diameter: 5.3750 in
- Locking Device: Set Screw
- Expansion Type: Non-Expansion Bearing (Fixed)
- Seal Type: N Lip Seal, E1 Viton Seal, E3 Triple Lip Seal, H Clearance Seal, FF Free Running, HFF Free Running, MHFF Free Running
- Housing Width: 1-13/64 in
- Radial Dynamic Load Capacity: 7920 lbs
- Radial Static Load Capacity: 5220 lbs
- Max Operating Temperature: 225 °F
- Finish Coating: Powder Coated
- Pilot Diameter: 4.500 in
- Bolt Size: 1/2 in
- Max Rpm: 4800 rpm
- Series: 200
- Bore Length: 2-3/32 in
- Grease Type: Exxon Ronex MP Std
- Retainer Material: NYLON
- Weight: 7.5 lbs
- Type Of Bearing: Ball
- Mounting Type: 4-Bolt Piloted Flange
