Product Description

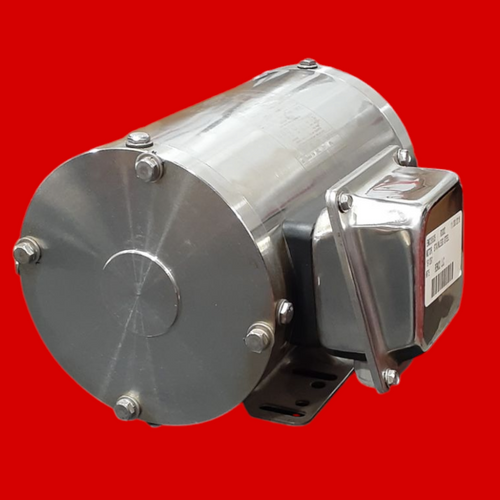

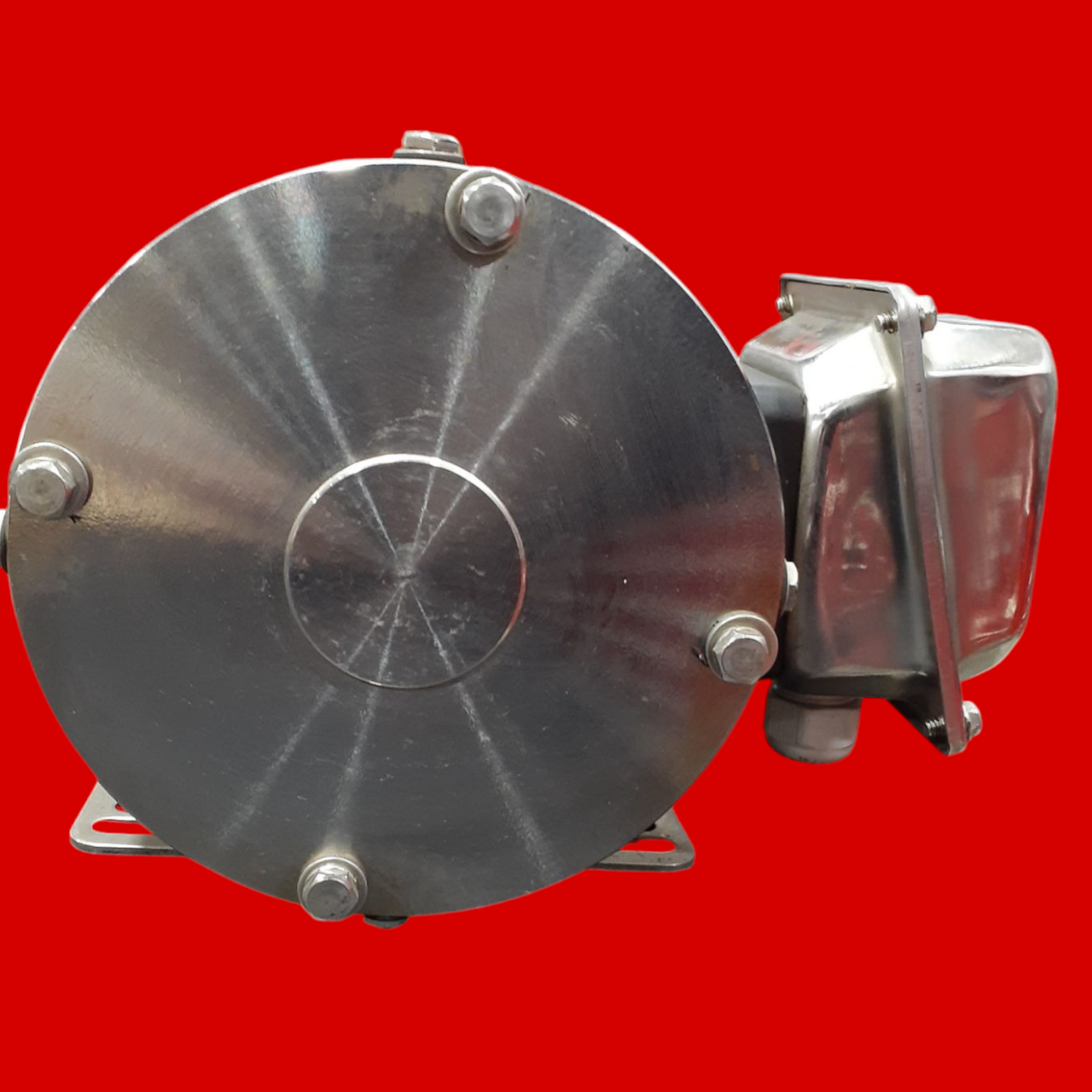

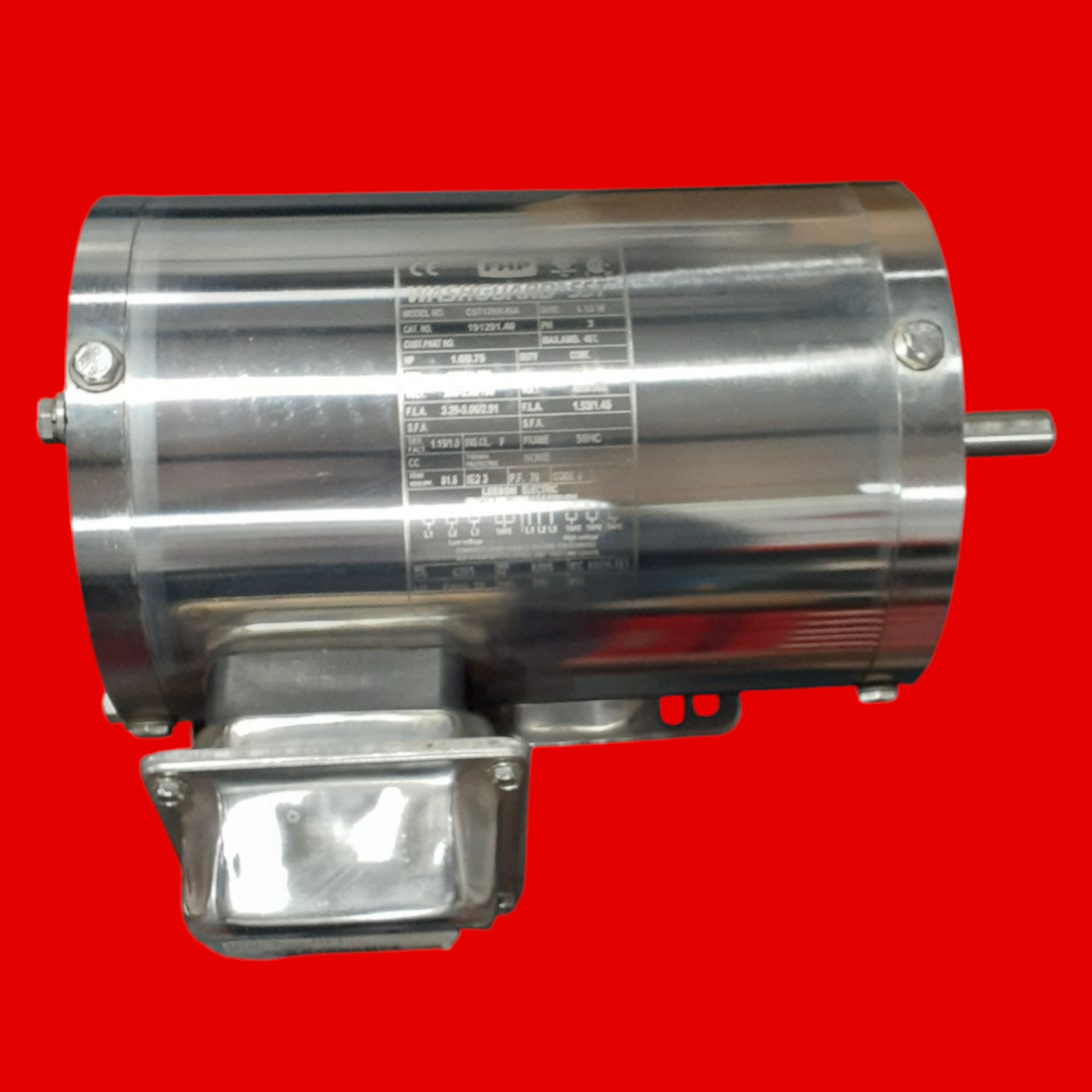

Leeson 191291.40 FHP Washguard SST Stainless Steel Motor, Fully Enclosed, 1.0/0.75Hp, 1725/1430 RPM, 460/380V
Cat.#: 191291.40
Model#: C6T17NK49A
LEESON’S FHP WASHGUARD™ SST™ Stainless Steel motors are designed for long life in severe duty or Washdown applications. Washguard SST motors are Stainless Steel Tough to withstand the demanding environments found in the food processing, chemical processing and beverage industries.
- LEESON’s IRIS (Inverter Rated Insulation System) included on all ratings
- Split conduit box design is fully gasketed with flanged cover and rubber gasket for better seal
- Rubber covered oil seals on both shaft extensions of TEFC motors
- 300 Series all stainless construction - no paint or coatings of any type used on motor exterior
- Laser-etched nameplate eliminates nameplate rivet holes which could lead to entry points for water
- Anti-corrosion coating on rotor and heavy polyester varnish on stator
Specifications :
- PH: 3
- HP: 1.0/0.75
- RPM: 1725/1430
- V: 460/380
- Frame: 56HC
- Fully Enclosed
