Product Description
LECO LM Series Microindentation Hardness Testing System, LM 100 with AMH55 Lite Package
Model: LM 100
The LECO LM 100 is an economical model within the LECO LM series of microindentation hardness testing systems, designed for low-volume laboratory applications such as testing hardness of surface layers, coatings, and thin specimens.
The LECO LM 100 series offers precise microindentation testing with a straightforward, user-friendly operation.
- Measuring Method: Utilizes an indenter to measure material hardness, reporting values typically in Vickers hardness (HV). It can be converted to other standard hardness values like Rockwell.
- Load Ranges: Test loads range from 1 gf to 2000 gf (gram-force), allowing for analysis of a variety of materials from very soft to ultra-hard.
- Turret Configuration: The system includes a turret that can accommodate a variety of objectives (from 2.5X to 100X) and up to two indenters.
- Indenter Support: Features dual leaf-spring indenter supports to ensure centered indentations, which improves accuracy and repeatability.
- Measurement: The system uses precision photo-etched measuring lines for manual measurement via an analog or digital ocular.
- Expandability: The LM 100 can be upgraded with accessories such as a video measuring system or an automatic stage for enhanced functionality.
- Applications: It is suitable for a wide range of applications including hardness profiling across material layers, and evaluation of welds and heat-affected zones.

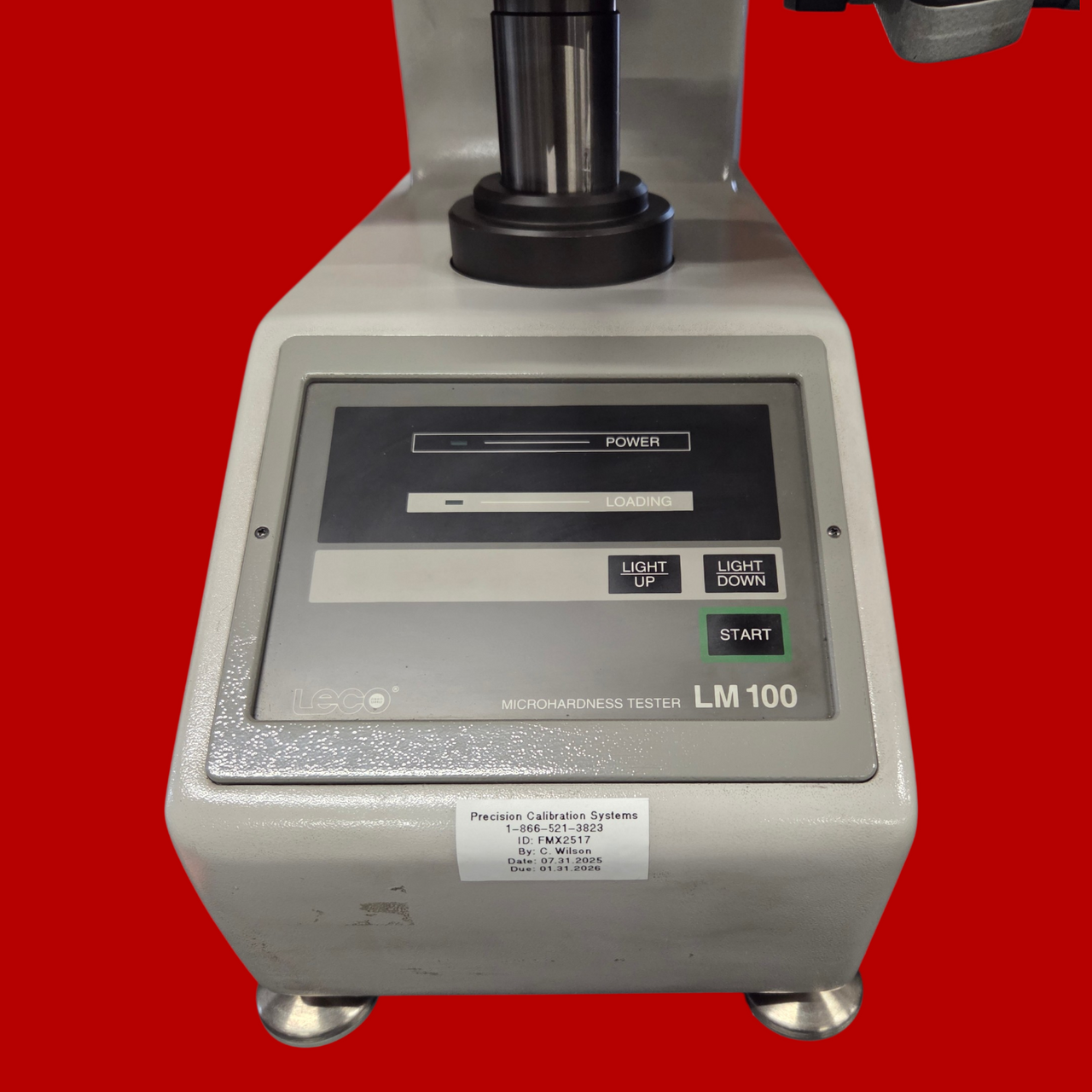

Operation is straightforward, often involving a simple control panel. After focusing the image of the sample with an objective (e.g., 50X), the operator selects the desired test force using a dial and presses a start button to automatically perform the indentation. The resulting indentation is then measured using the measuring lines in the ocular to determine the hardness value.

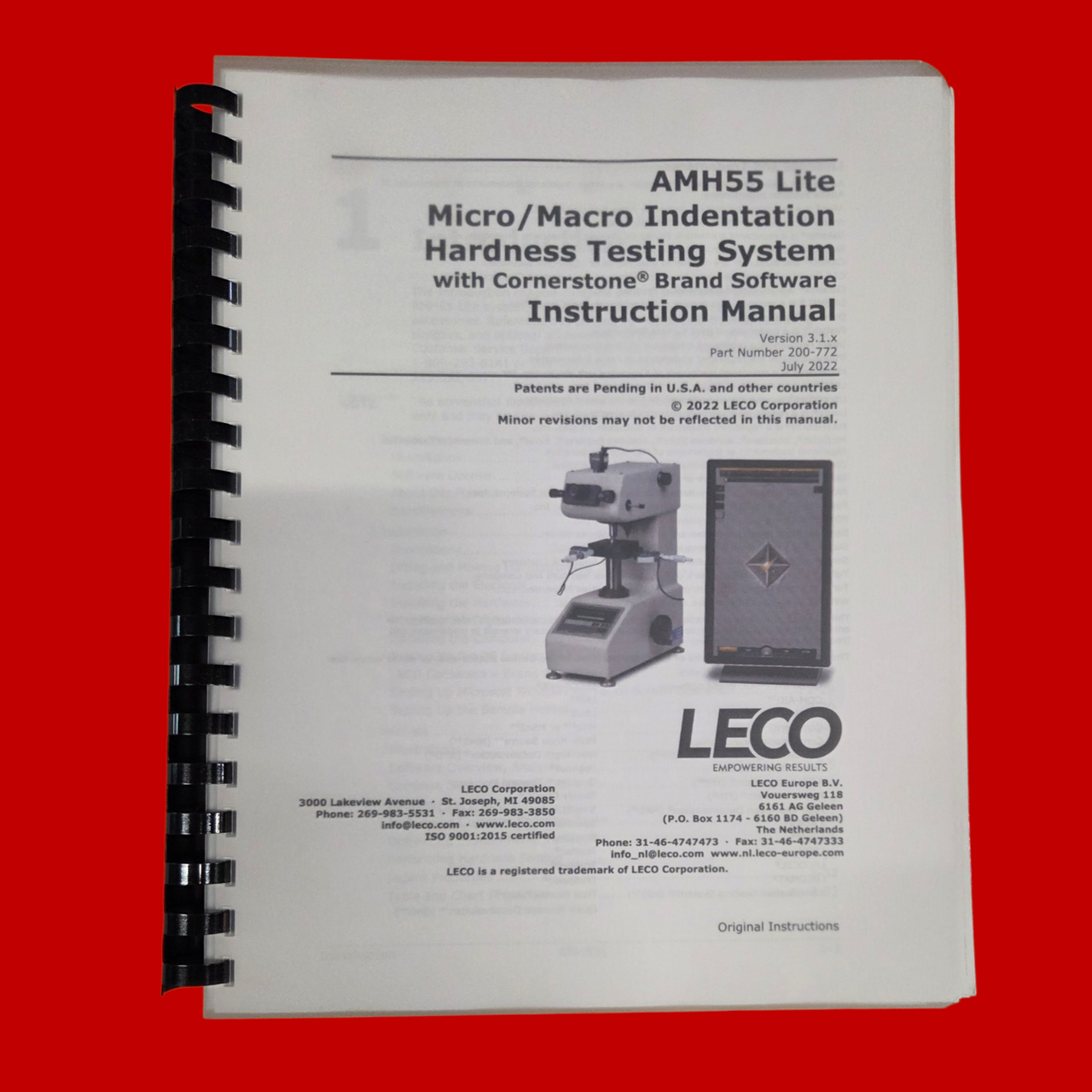

AMH55 Software for Automated Hardness Testing
Maximize your productivity and easily measure impressions on various surface conditions for a wide number of applications with LECO’s AMH55. The AMH55 introduces LECO’s innovative Cornerstone brand software to the hardness testing platforms, for increased usability, simplified reporting, and streamlined analysis times. Supporting accurate and efficient microindentation and Macro/Vickers hardness testing in fully automatic, semi-automatic, and lite configurations, the AMH55 is a valuable resource for users needing precise and productive hardness testing while tailoring the data and results to their needs.
- AMH55 Lite
- Automatically locates and analyzes indents within a field of view
- Automatic pixel calibration
- Customizable data reporting
- Manual X, Y, and Z axis with digital stage micrometers to track stage movement
- Upgradeable to AMH55 Automatic or Semi-Automatic
