Product Description

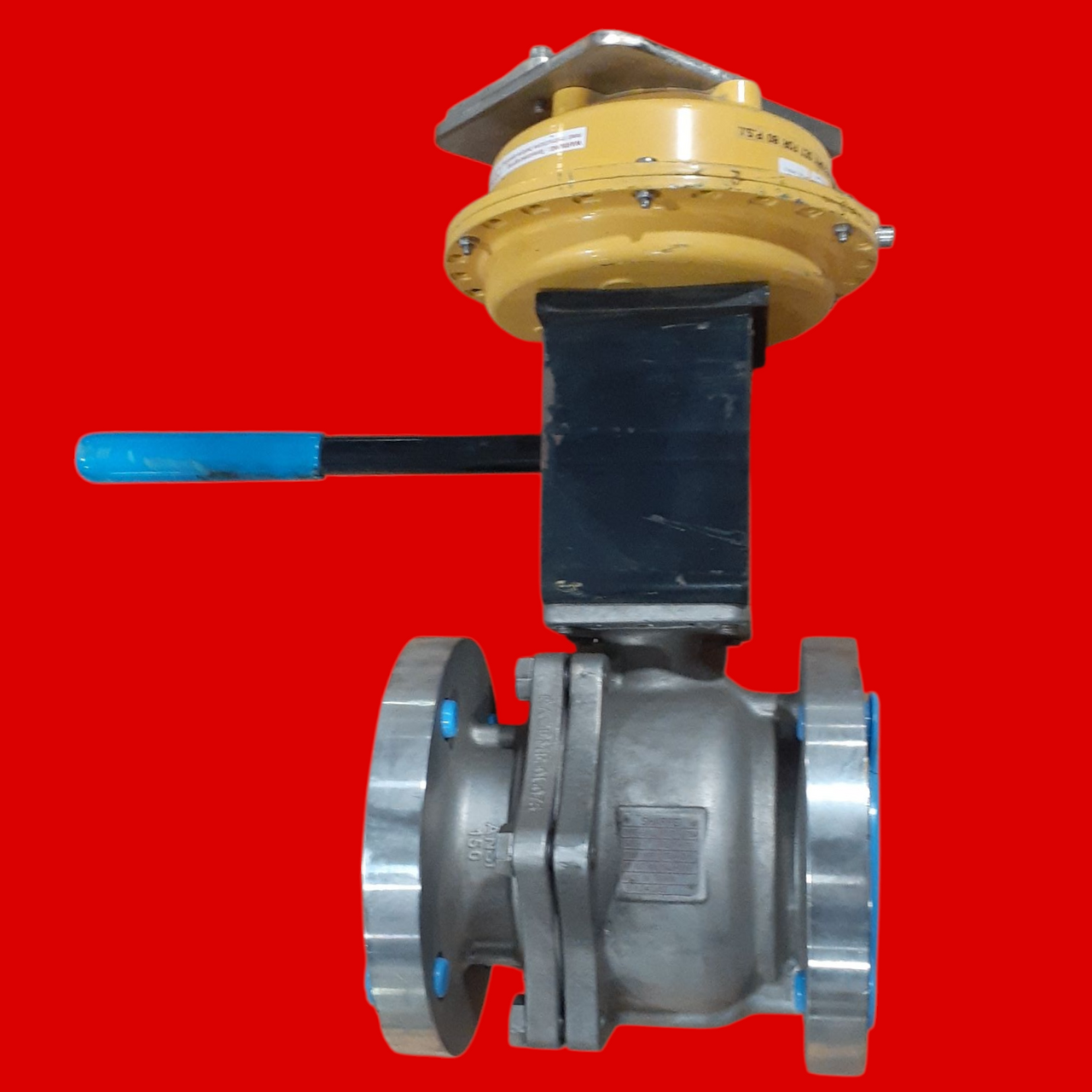

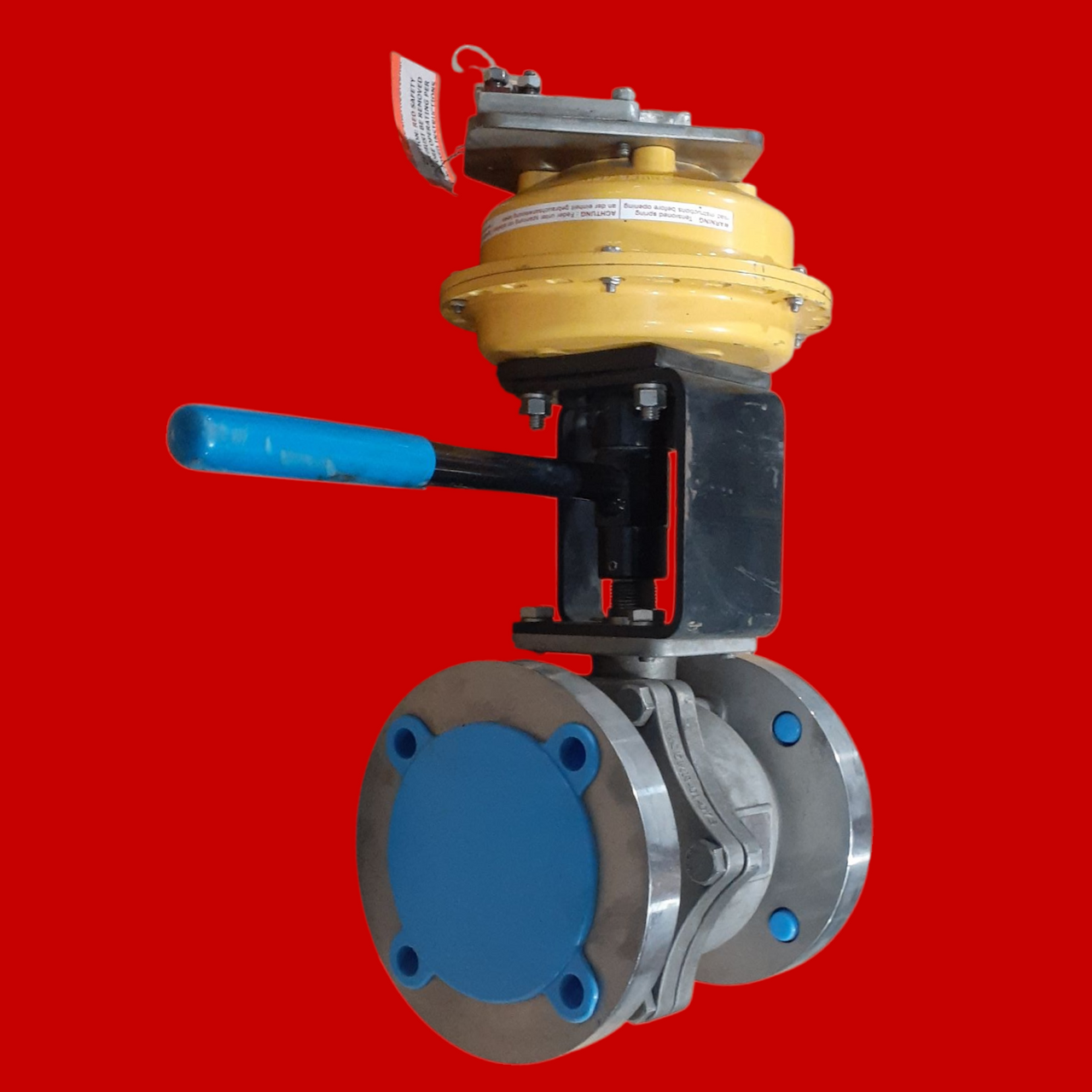

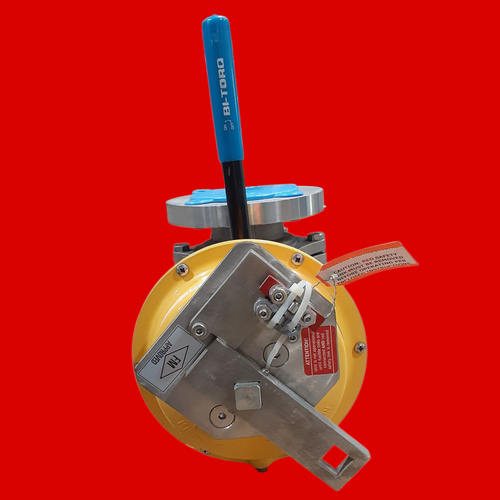

Kinetrol 097-030 English Spring Unit w/ Sharpe 3'' Stainless Steel Flanged Ball Valve

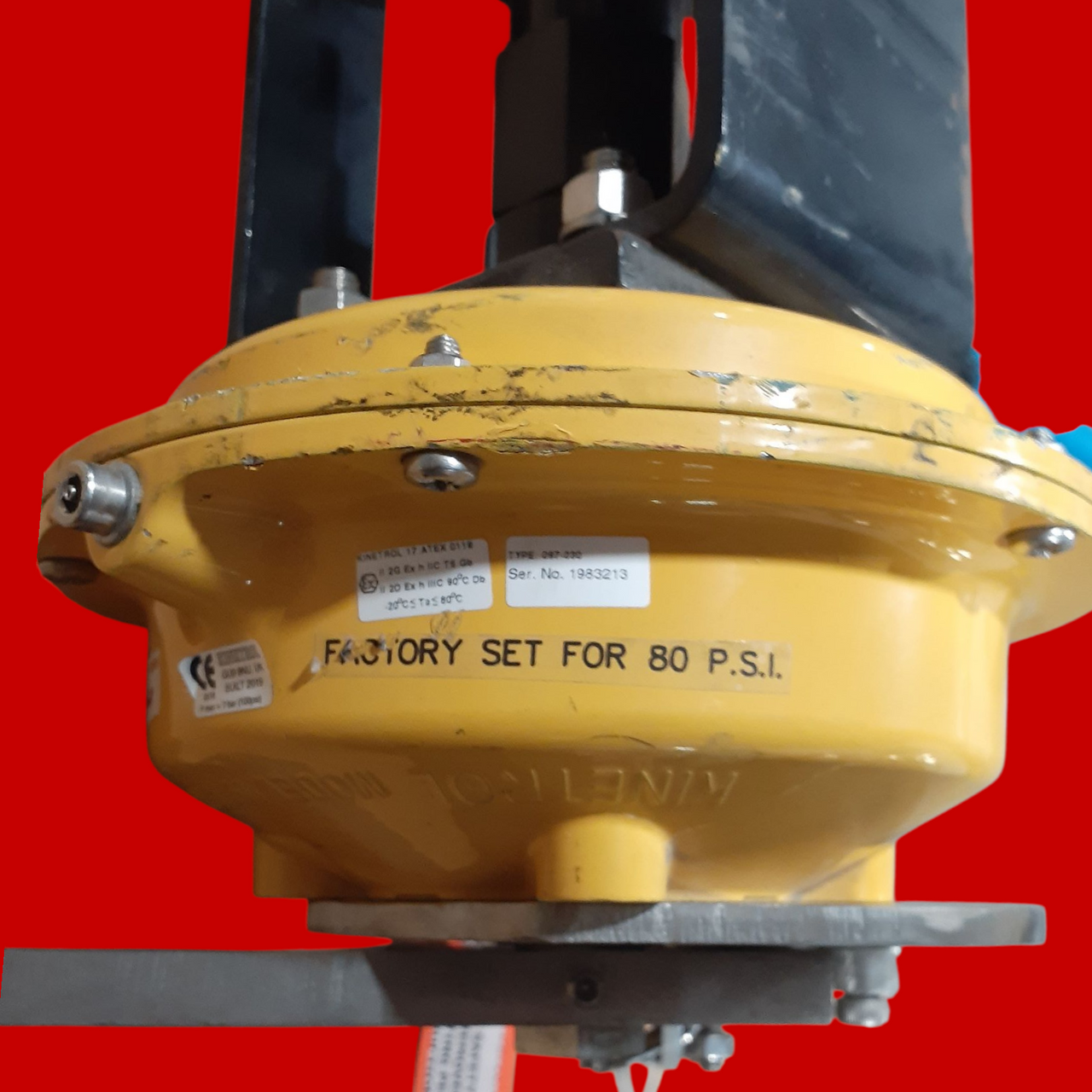

Kinetrol Model 09 Spring Unit:
Spring Torque:
- Start 104 Nm / 925 lbf ins
- Finish 93.8 Nm / 830 lbf ins
Angle of Travel: 0° - 90°
Materials of Construction:
- Casing: Pressure die cast aluminium alloy
- Output Shaft: Steel, zinc plated
- Clock Type Spring: Carbon spring steel
Finish: Epoxy thermoset powder
Operating Temperature: -40°C to +80°C (-40°F to +176°F)
Product Code: 097-030 English Spring Return Counter Clockwise

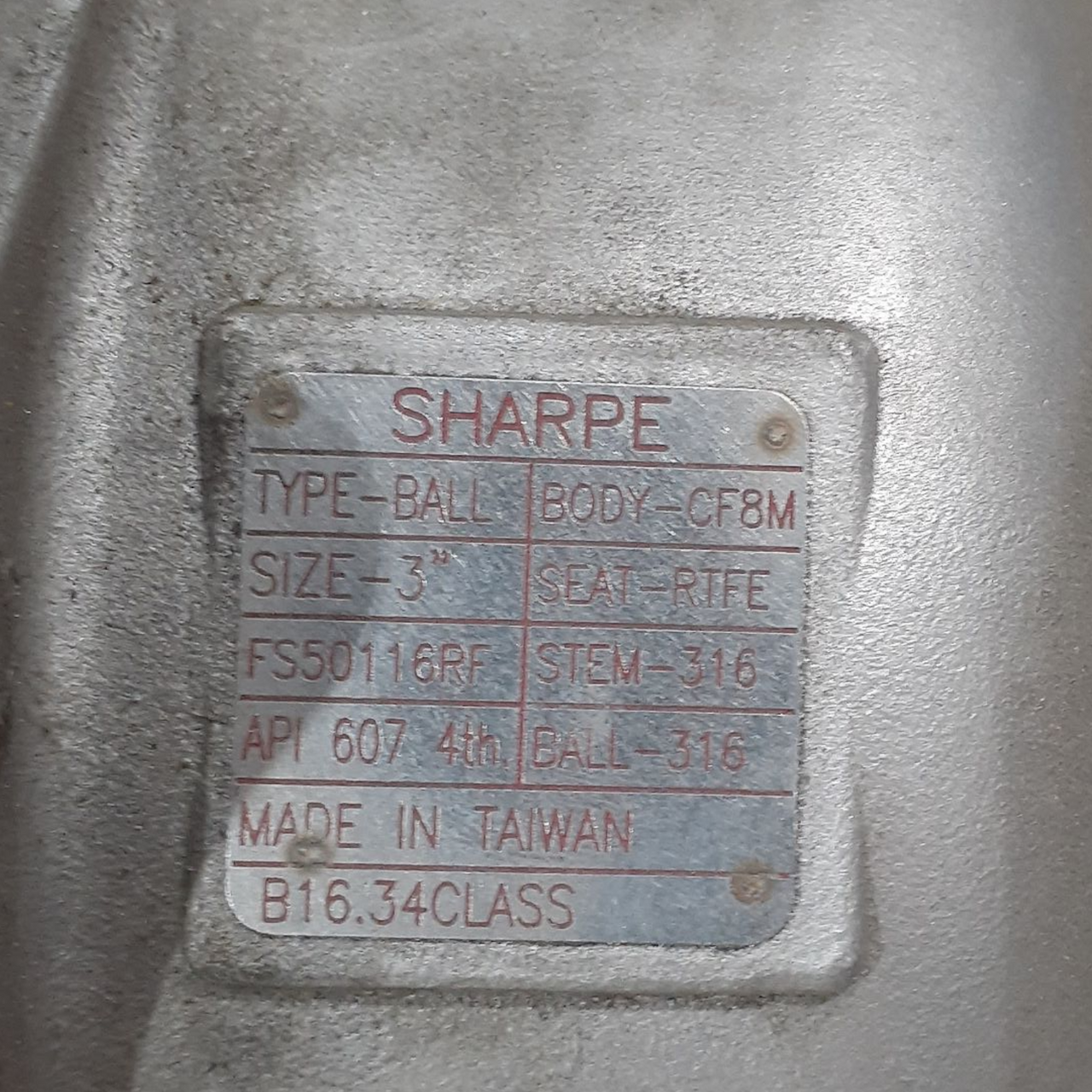

Sharpe 3'' Stainless Steel Flanged Ball Valve:
- Type: Ball
- Size: 3"
- Ball Material: 316 SS
- Stem: 316 SS
- Body:CF8M
- Seat: RTFE
- ANSI 150
