Product Description

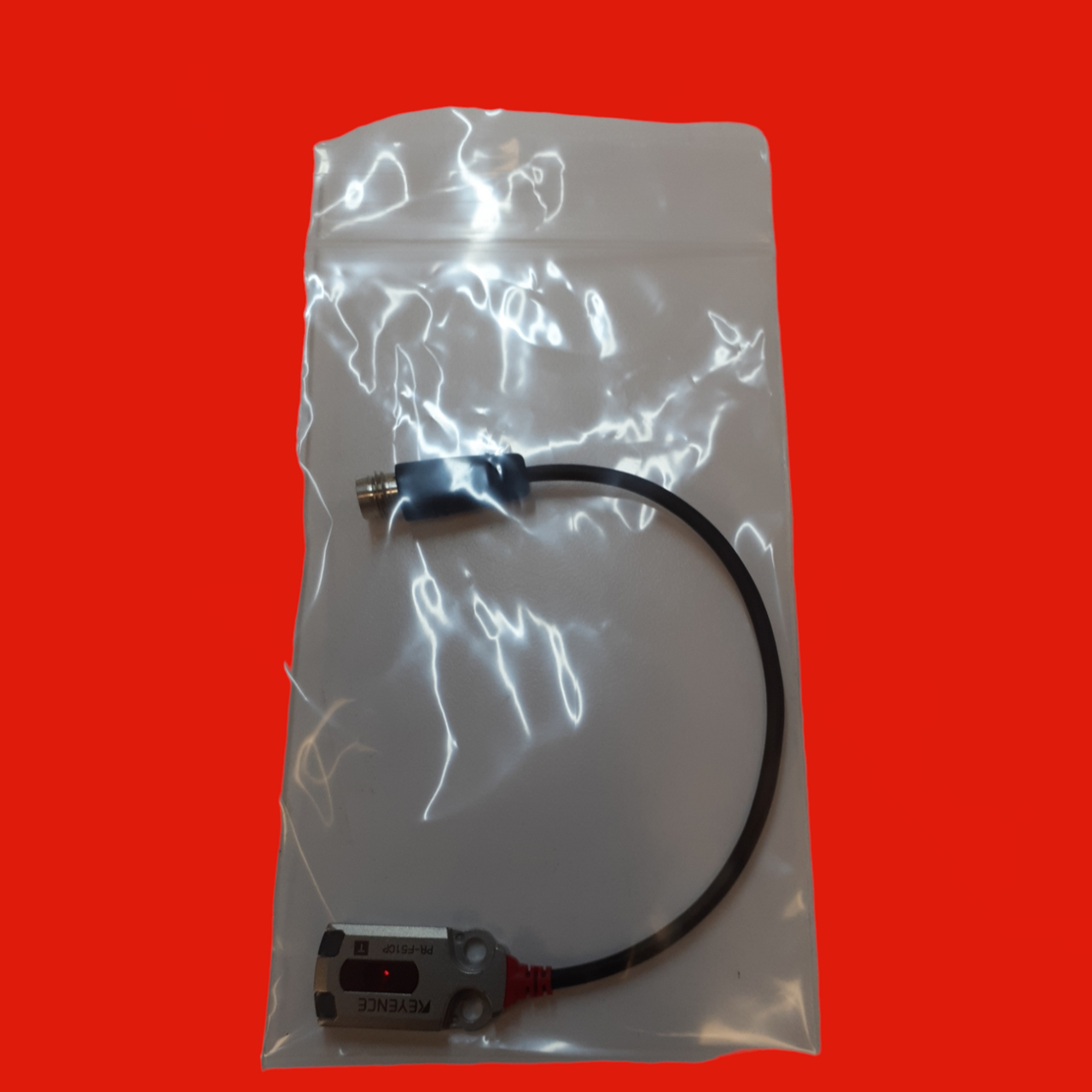

Keyence PR-F51CP Flat Transmissive M8 Connector Type, 0.6m
PR-F51CP
- Model: PR-F51CP
- Type: Thrubeam
- Output: PNP
- Shape: Flat
- Cable connection: M8 connector (4 pin)
- Detection distance: 0.6 m
- Number of control outputs: 2
- Sensitivity adjustment: None
- Light source: 4 element, point light source, red LED (650 nm)
- Indicator lamp: Output indicator (orange), stable operation indicator (green), thrubeam type transmitter: power supply indicator (green)
- Control output: 30 VDC or lower, 50 mA or lower
- Leakage current: When 3 kΩ load resistance, 0.3 mA or lower. When 1 kΩ load resistance, 0.5 mA or lower. When 0.2 kΩ load resistance, 1.5 mA or lower
- Residual voltage: When 10 mA or lower, 1.0 V or lower. When 10 to 30 mA, 1.5 V or lower. When 30 to 50 mA, 2.0 V or lower.
- Protection circuit: Power supply reverse connection protection, output overcurrent protection, output surge protection, power supply surge protection
- Power voltage: 10 to 30 VDC, including Ripple (P-P) 10 %
- Current consumption: Transmitter: 11 mA, Receiver: 16 mA
