Product Description

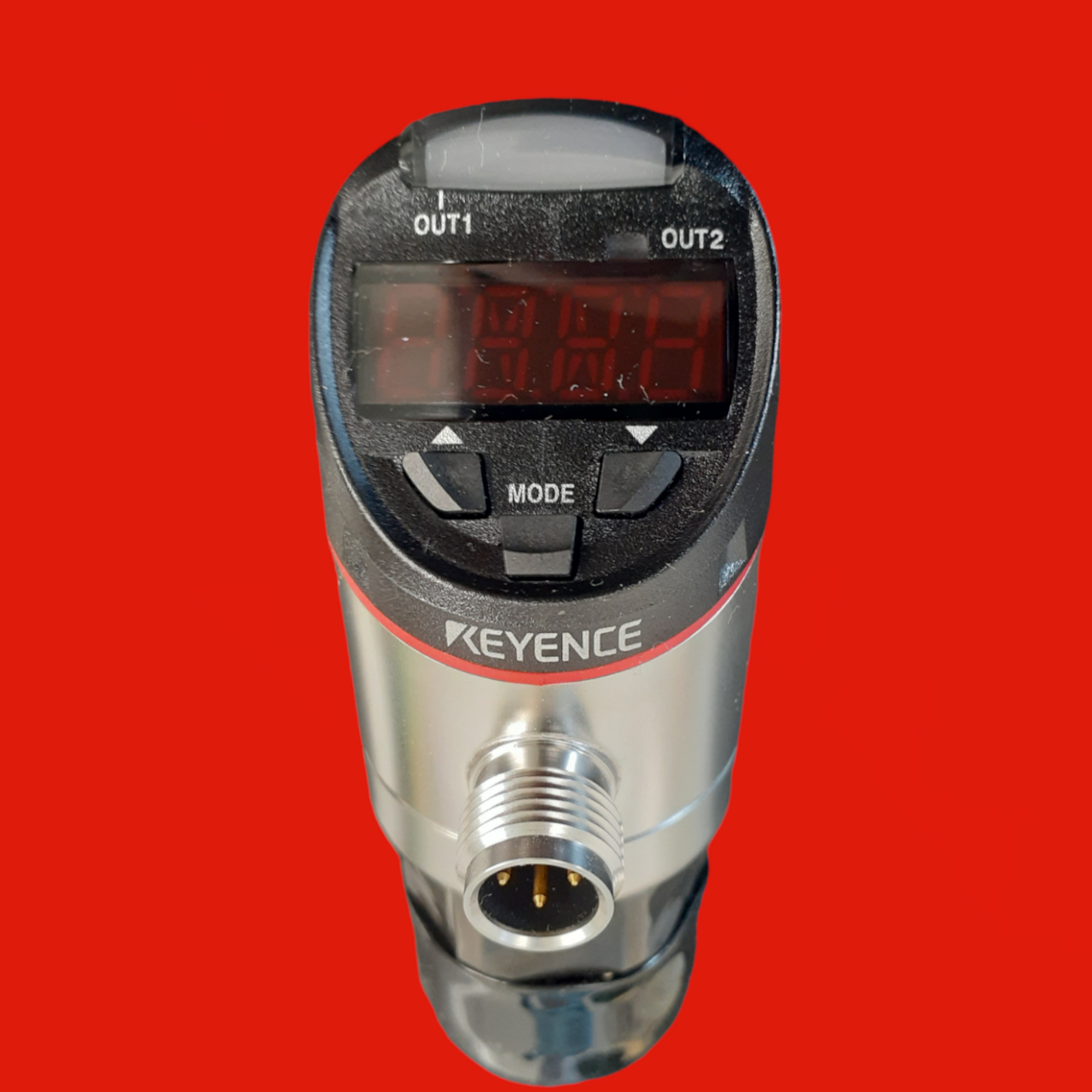

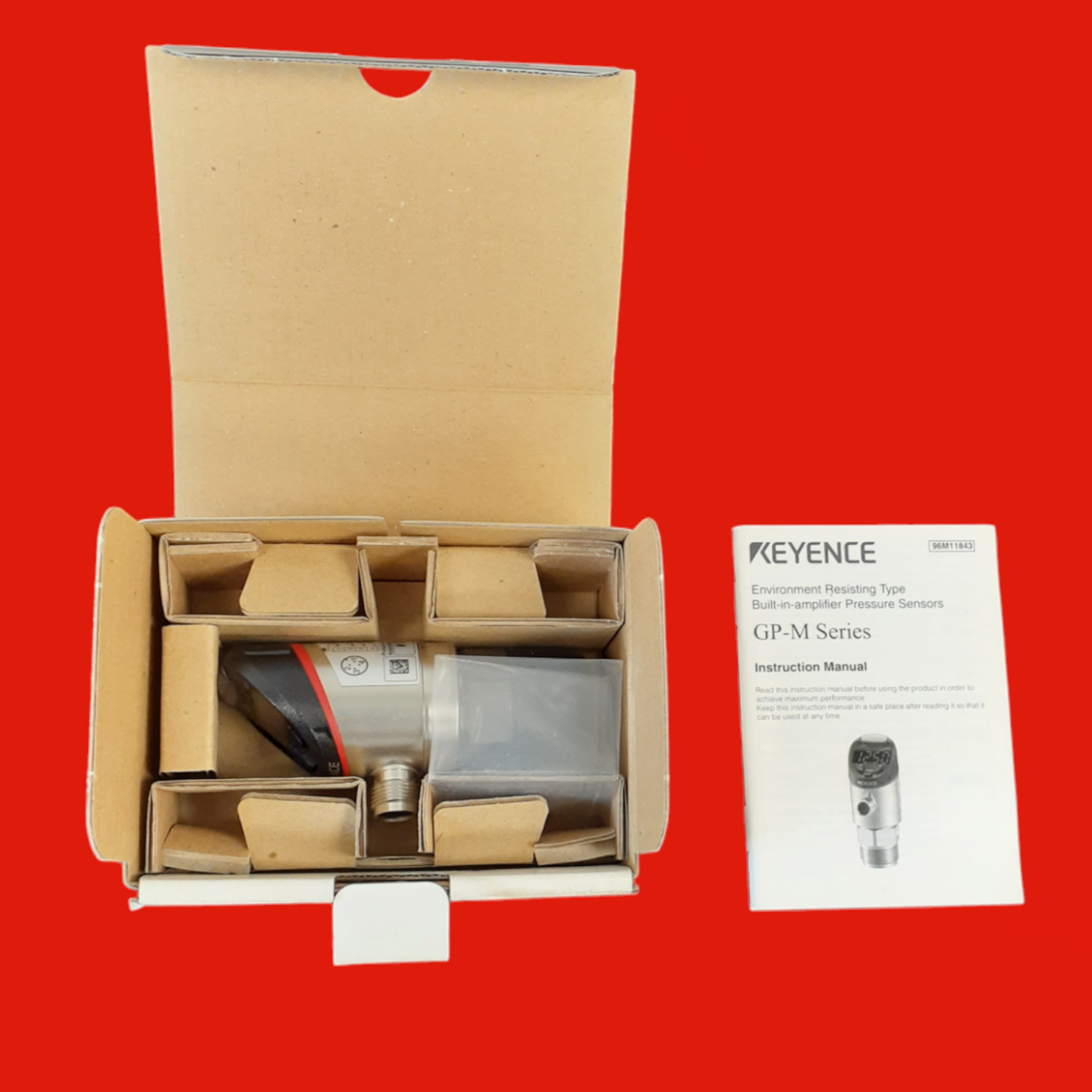

Keyence GP-M010 Main Unit, Positive-pressure Type, 1 MPa
PN: GP-M010
- Rated pressure: -14.5 to +145.0 PSI, (-0.1 to +1 MPa)
- Possible display range: -30.5 to +161.0 PSI, (-0.210 to +1.110 MPa)
- Zero-cut pressure value: ±0.5% of F.S.
- Burst pressure: 2175 PSI (15 MPa)
- Fluid type: Gas or liquid that will not corrode the liquid contact part
- Type of pressure: Gage pressure
- Precision: ±1.0% of F.S. or less*1
- Repeatability: ±0.3% of F.S. or less*2
- Temperature characteristics: ±0.6% of F.S./10°C 50°F
- Connection port: G3/4 (Changes to the R male 1/8, R male 1/4, R male 3/8, G female 1/4, NPT male 1/8, and NPT male 1/4 option adapters are available.)
- Box rotation angle: Maximum 330°
- Medium temperature: -20 to +100°C -4°F to +212°F (no freezing/condensation)*3
- Power voltage: 10-30 VDC, Ripple (P-P): 10% max, Class 2 or LPS
- Current consumption: 50 mA or less (when 24 V: 32 mA or less, when 12 V: 48 mA or less. Not including load)*4
- Display method: 4 column, digital LED, red/Vertical inversion display possible
- Operation display light: Operation indicator (output 1) (orange), Operation indicator (output 2) (orange)
- Hysteresis: During hysteresis mode: variable (Difference between switch-on point and switch-off point is hysteresis), During window mode: fixed (0.5% of F.S.)
- Control output: Selectable from 3 to 5000 ms
- Analog output: As above + 2 ms (90% response)
- Enclosure rating: IP67
- Pressure resistance: 4 MPa (40 bar)
- Ambient temperature: -20 to +80 °C -4 to 176 °F (No freezing and no condensation)
- Relative humidity: 35 to 85 % RH (No condensation)
- Vibration resistance: IEC60068-2-6 20 G (10 to 2000 Hz, 2 hours each in the X, Y, and Z axis)
- Shock resistance: IEC60068-2-27 50G (11 ms, 3 times for each of X, Y and Z direction)
- Wetted part: Pressure port: SUSXM7, Diaphragm pressure port: Al2O3 (Alumina), O ring: FKM
- Other parts: Housing metal portion: SUS304, SUS303, Housing plastic portion: PPSU, Air hole: PTFE, nickel-plated brass.
- Applicable cable: M12 connector 4 pin
