Product Description

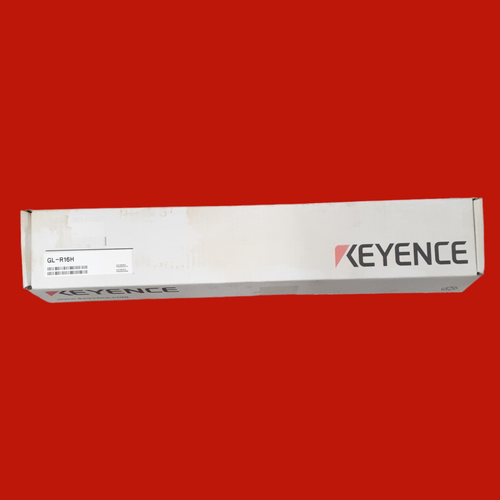

Keyence GL-R16H Light Curtain
PN: GL-R16H
- Detection capability: ø0.98" ø25 mm
- Total length: 12.60" 320mm
- No. of beam: 16
- Detection height: 11.81" 300mm
- Protection height: 13.58" 345mm
- Beam axis spacing/Lens diameter: 20 mm / ø5 0.79" / ø0.20"
- Detecting distance: 0.66 to 49.21' 0.2 to 15 m*1
- Effective aperture angle: Max. ±2.5° (When operating distance is 9.84' 3 m or more)
- Light sourc: Infrared LED (870 nm)
