Product Description

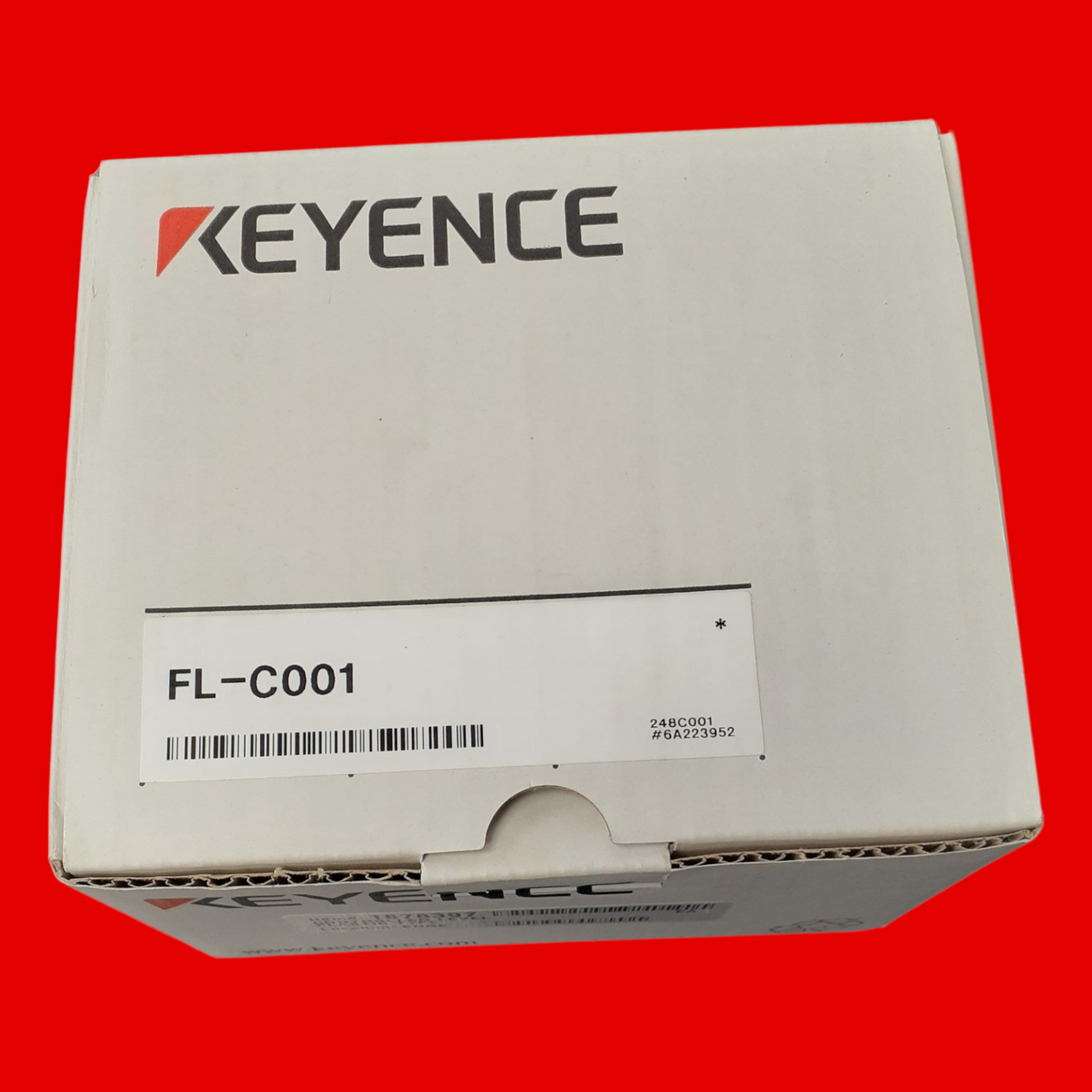

Keyence FL-C001 Amplifier Unit, Resin Specification
PN: FL-C001
The Keyence FL-C001 amplifier unit, designed for use with their liquid level sensors, features a resin construction. It's compatible with the IO-Link Specification V1.1 and offers a measurement range of 200 to 2,000 mm with a resolution of 1 mm. The unit has an IP67 enclosure rating and an operating temperature range of -10 to 60°C
|
Model |
FL-C001 |
|||
|
Type |
Plastic type |
|||
|
Measurement range |
200 to 2,000 mm 7.87" to 78.74" |
|||
|
Specific conductive capacity of measurable media |
3 or more*1 |
|||
|
Resolution |
1 mm 0.04"*2 |
|||
|
Linearity |
±3 mm ±0.12"*2 |
|||
|
Temperature characteristics |
0.1 mm/°C |
|||
|
Undetectable area |
In the case of water |
Top side |
25 mm 0.98" |
|
|
Bottom side |
33 mm 1.30" max.*3 |
|||
|
In the case of oil |
Top side |
25 mm 0.98" |
||
|
Bottom side |
53 mm 2.09" max.*3 |
|||
|
Judgment output response time |
0.4 s minimum |
|||
|
Probe horizontal torque |
6 N m |
|||
|
Tank pressure |
-0.1 to +0.1 Mpa |
|||
|
Connection port |
G3/4 on the dedicated probe side |
|||
|
Control output |
Judgment output/alarm output |
NPN/PNP open collector (selectable), 30 VDC max., 50 mA max. for each |
||
|
Analog output |
4 to 20 mA, maximum load resistance: 350 Ω (Response time: 0.1 s after comparator output determined [90 % response]) |
|||
|
Network compatibility |
IO-Link*4 |
|||
|
Analog output accuracy |
Resolution |
1 mm 0.04" |
||
|
Zero accuracy |
±0.1 mA (Zero point = 4 mA) |
|||
|
Full scale accuracy |
±0.2 mA (full scale = 20 mA) |
|||
|
Applicable cable |
8-pin M12 connector |
|||
|
Rating |
Power voltage |
10 to 30 VDC, ripple (P-P) 10% included, Class 2 or LPS |
||
|
Current consumption |
300 mA max. (at 10 V)/120 mA max. (at 30 V) (excluding load) |
|||
|
Environmental resistance |
Enclosure rating |
IP67 |
||
|
Ambient temperature |
-10 to +60 °C 14 to 140 °F |
|||
|
Relative humidity |
35 to 85 % RH (No condensation) |
|||
|
Operating medium temperature |
-10 to +110 °C 14 to 230 °F |
|||
|
Vibration resistance |
10 to 55 Hz, 0.75 mm 0.03" double amplitude in X, Y and Z directions, 2 hours respectively |
|||
|
Shock resistance |
300 m/s2 in 6 directions, 3 times respectively |
|||
|
Material |
Liquid end materials |
Sheath: PFA |
||
|
Case |
Plastic section of the housing: PPS, PPSU, FKM, PVC |
|||
|
Weight |
380 g |
|||
