Product Description

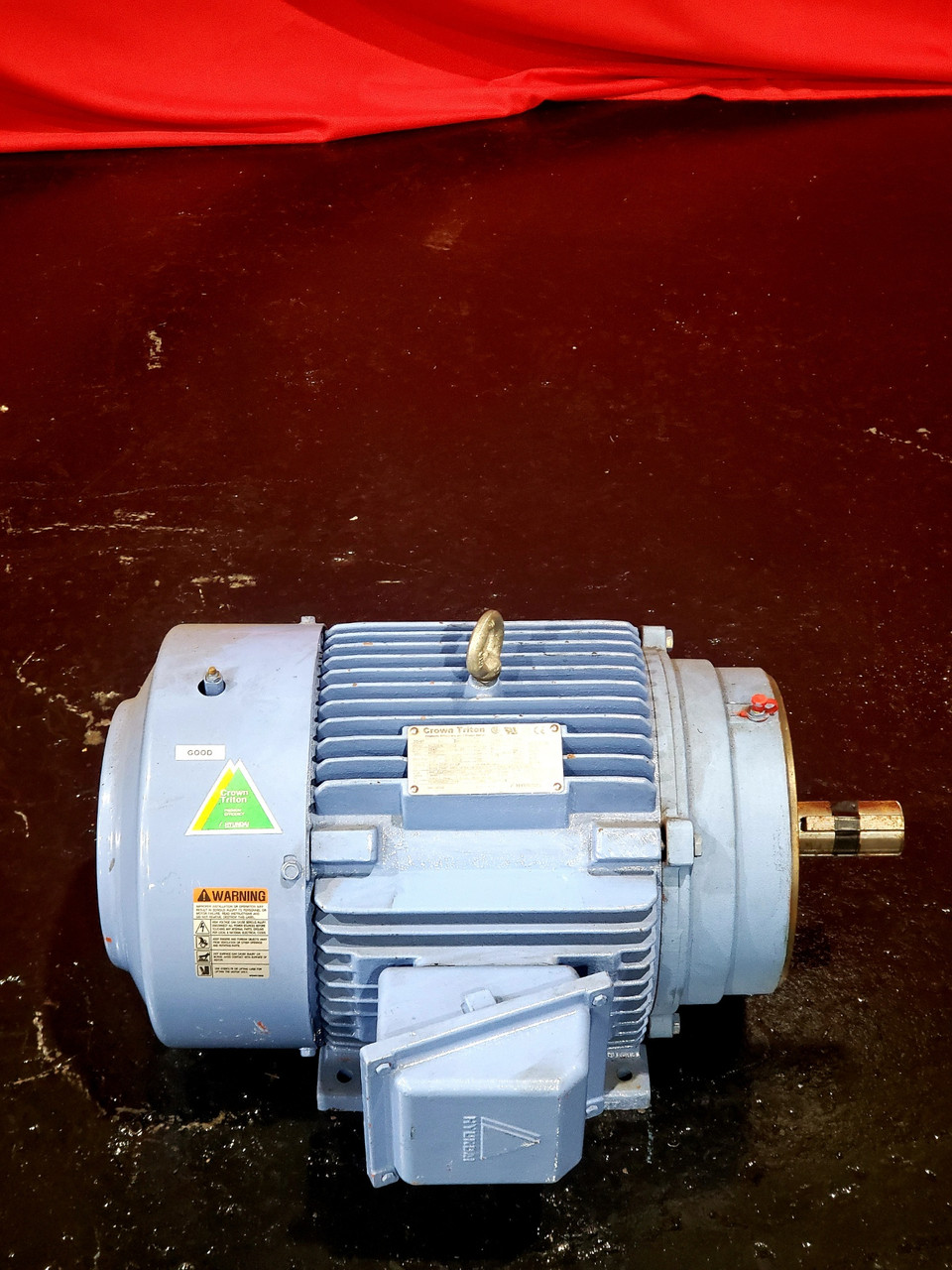

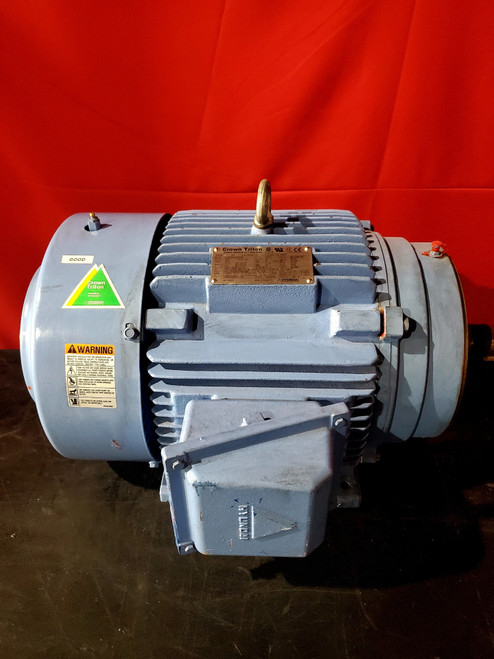

Hyundai Crown Triton HLS284SR235B 25 HP Motor
Cat No: HHI25-18-284T
Specifications
- Item Number: HHI25-18-284TC
- Model Number: HLS284SR235B
- Brand: Hyundai Crown Triton
- Item Category: Motors
- Subcategory: AC
- Series: HHI
- Type: High Efficiency
- Horsepower: 25
- Volts AC: 230/460
- Nominal Voltage: 240/480 Volts AC
- Phase: 3
- RPM: 1,775
- NEMA Frame: 284T
- Enclosure: Totally Enclosed Fan Cooled
- Mounting Type: C-Face with Feet
- Efficiency %: 93.8 Percent
- CT Speed Range: 10:1
- Full Load Amps: 60.6 / 30.3
- Service Factor: 1.15
- Inverter Duty: Yes
- Composition: Cast Iron
- Bearing Type: Ball
- Number of Poles: 4
- Approvals: CSA; CE
- Net Weight: 380 lbs.
The product is used in good condition. Motor has been bench tested and inspected.
