Product Description

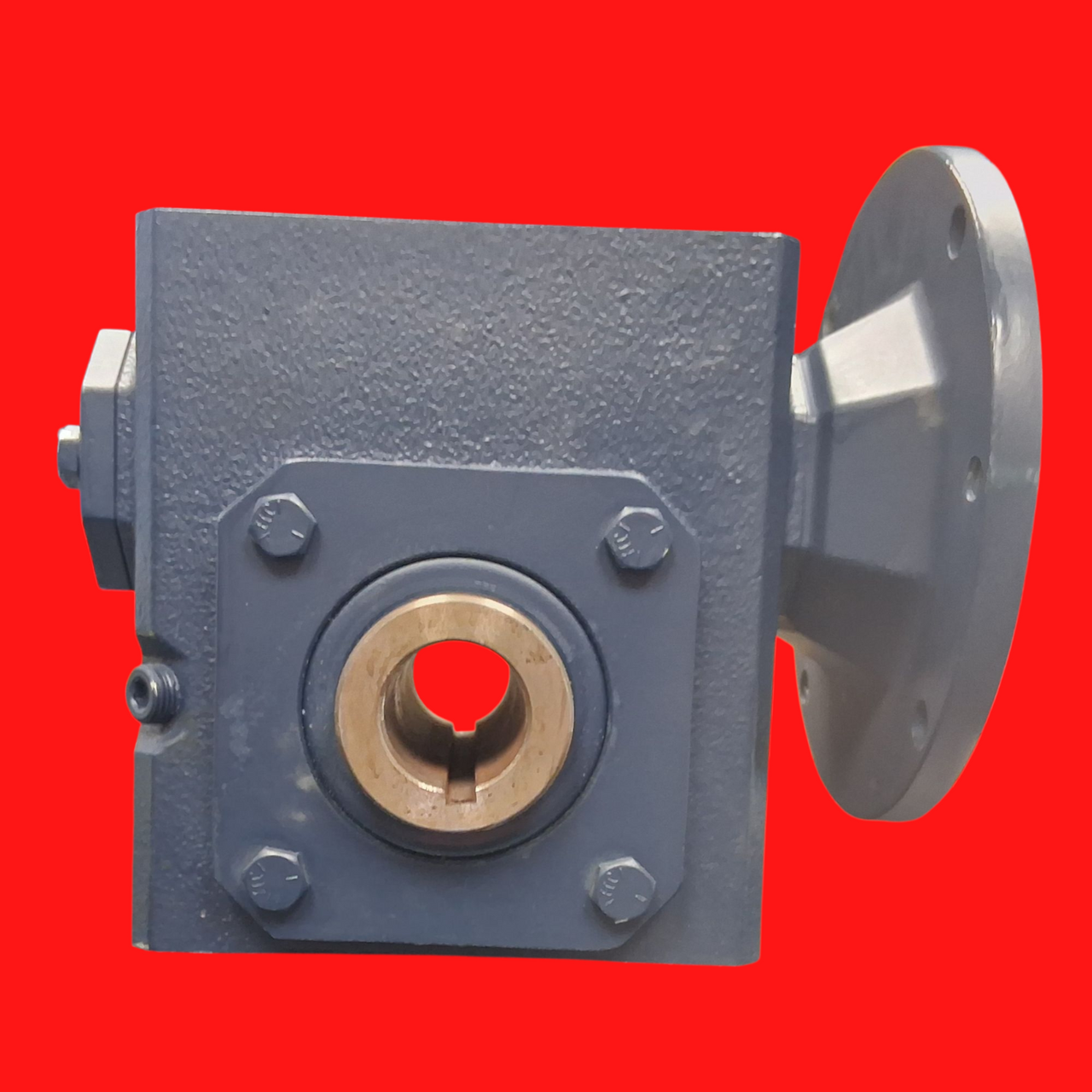

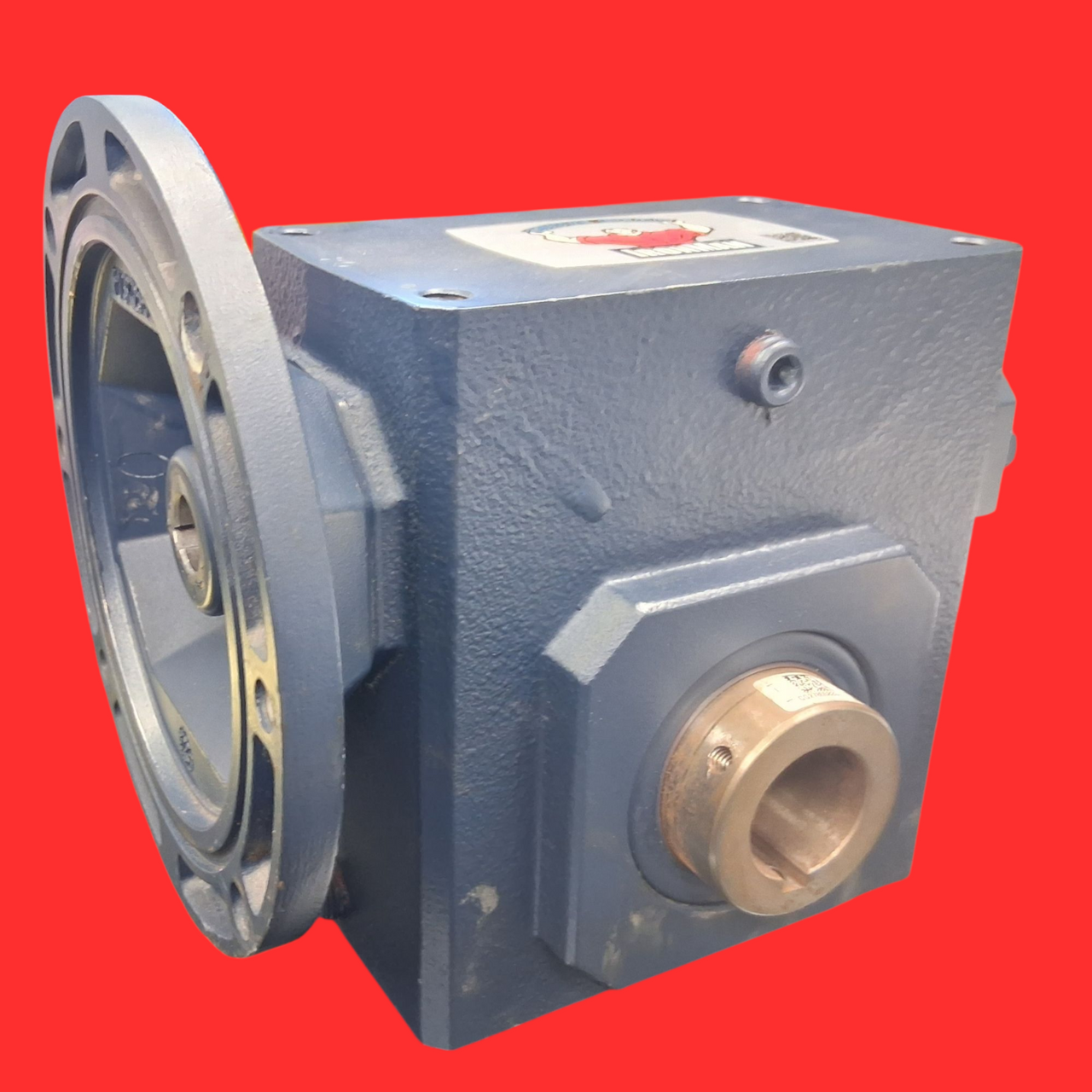

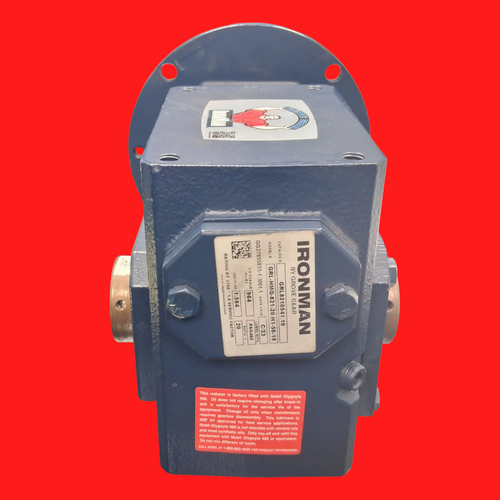

Grove Gear IronMan GRL-HMQ-821-20-H1-56-19 Cast Iron Single-Reduction Worm Reducer
Catalog#: GRL8210541.19
Model#: GRL-HMQ-821-20-H1-56-19
-
Input Bore (C Face): 0.625
-
Center Distance (in): 2.06
-
Mounting Style: Shaft Mount
-
Ratio: 20:1
-
Gear Type: Worm
-
Output RPM: 87
-
Input RPM: 1,750
-
Input Diameter (in): 0.625 in
-
Output Diameter (in): 1.188 in
-
Ratio Range: 20:1
-
Output Shaft Assembly Code: H1
-
Reducer Style: Worm - Right Angle
-
Model Code: HMQ821
-
Service Factor: 1
-
Assembly: HMQ-H1
-
Output Style: H1
-
Bore Code: 19
-
Input HP @ 1750 RPM: 1.584
-
Product Type: Right Angle
-
Frame Size: 56C
-
Output Shaft Orientation: H1
-
Series: GR Series - Ironman Worm Gear Reducers
-
Output HP: 1.338
-
Product Line: GR Series - Ironman Worm Gear Reducers
-
Series Code: GRL
-
Motor Frame Size: 56
-
No. of Gear Reductions: Single
-
Shaft Seal Material: Viton
-
Input Style: C-Face Quill
-
Output Key: 1/4 X 2.50
-
Thrust Rating - output shaft: 1144
-
Input Keyway (C Face): 3/16 X 3/32
-
Series Style: GRL-HMQ-H1
-
Input HP: 1.584
-
Reducer: Worm - Right Angle
-
Reduction: Single
-
Output Shaft Direction: H1
-
Overhung Load Rating (Output Shaft(lb)): 1,175 lb
-
Output Torque Rating (in-lb): 964 in/lbs
-
Output Shaft: Hollow Bore
-
Housing Material: Cast Iron
