Product Description

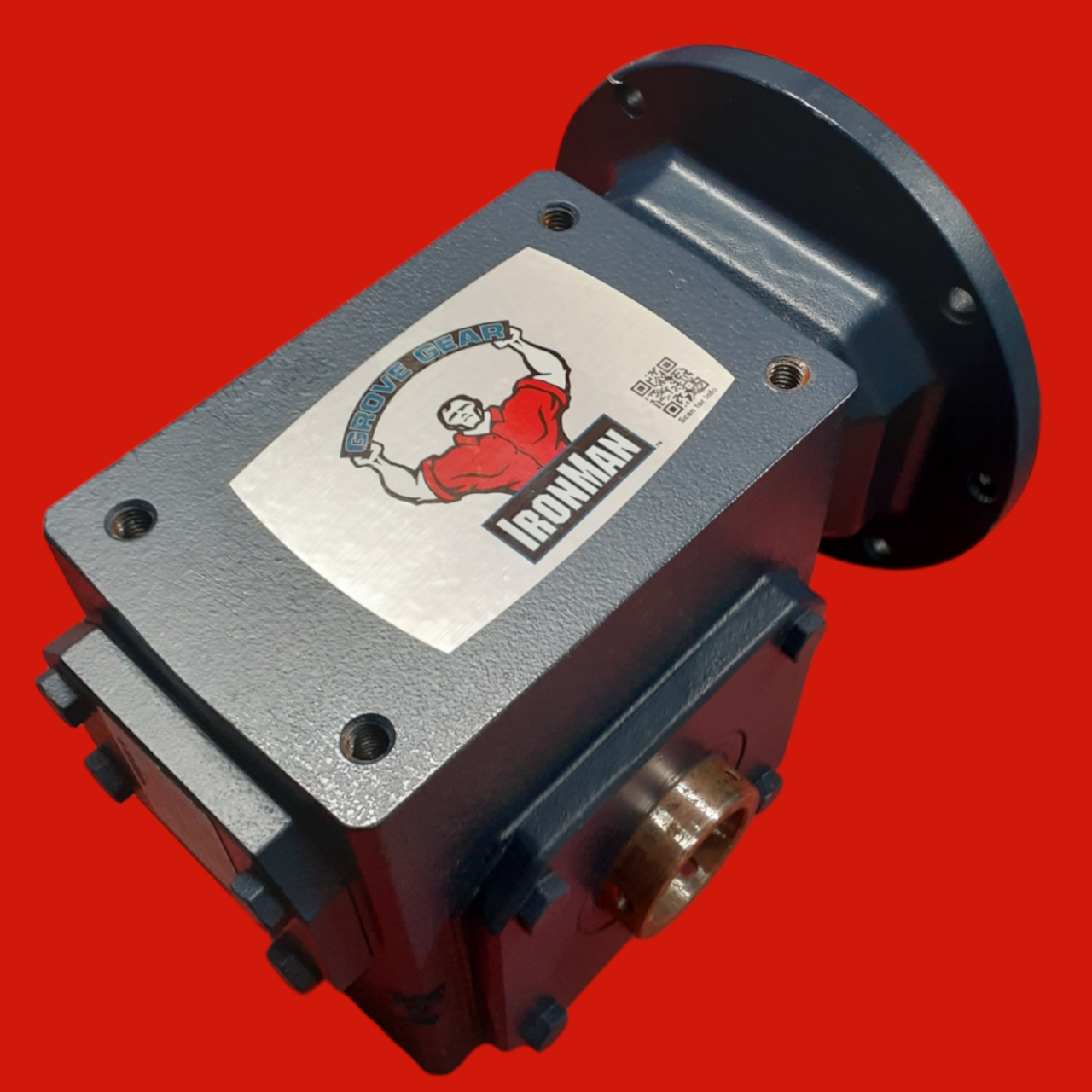

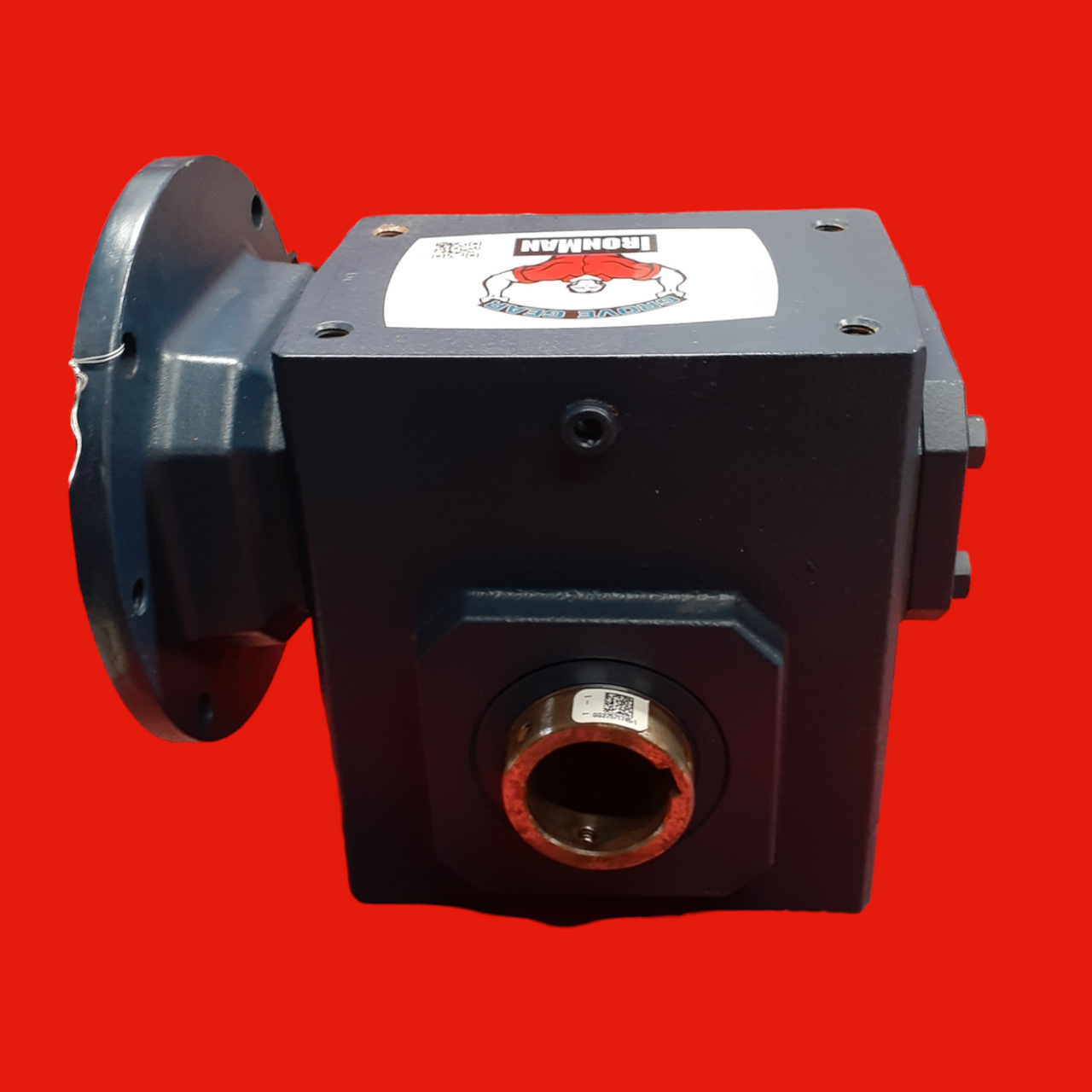

Grove Gear Ironman GR8240558.23 Worm Gear Reducer
PN: GR8240558.23
Model: GR-HMQ-824-60-H1-56-23
Features
- One-piece cast iron housings with single output cover design, CNC machined for precise component fit and alignment.
- Factory-filled with premium Mobil Glygoyle 460 polyalkalene glycol lubricant.
- Large oil capacity provides positive splash lubrication and superior cooling capability.
- Viton® double lip seals provide extended life through increased resistance to high temperature, abrasion and chemicals.
- The unique quill seal guard protects the input seal from damage during motor installation.
- Bronze worm gear chill cast from high quality bronze for maximum strength, lubricity and superior life.
- Oversized high-speed bearings, positively retained for frequent reversing and start/stop cycles.Tapered roller bearings on output shaft for high overhung and thrust load capacities.
- All units are 100% run and leak tested at the factory to insure that you receive the highest quality product. Ultimate application flexibility with all-angle mounting provisions, the widest selection of accessory bases and flanges and the largest selection of stock reducer styles.
- Mounting dimensions are interchangeable with most industry standard reducers.
Specifications
- SERIES TYPE: Cast Iron 800 Worm Gear Reducers
- INPUT KEYWAY (C FACE): 3/16 x 3/32
- OUTPUT SHAFT ASSEMBLY CODE: H1
- NO. OF GEAR REDUCTIONS: Single
- FRAME SIZE: 56
- HOUSING MATERIAL: Cast Iron
- HP RANGE: 1/2 to 3/4 HP (< 1)
- WIDTH: 9.06
- OUTPUT HOLLOW SHAFT DIAMETER (IN): 1.438
- SHAFT SEAL MATERIAL: Viton
- INPUT BORE (C FACE): 0.625
- REDUCER: Worm - Right Angle
- LENGTH: 10.69
- FAMILY NAME: Cast Iron Housing material Worm Gear Reducers
- OUTPUT TORQUE RANGE: 1000 to 2500 in lbs
- GEAR DRIVE REDUCTIONS: Single

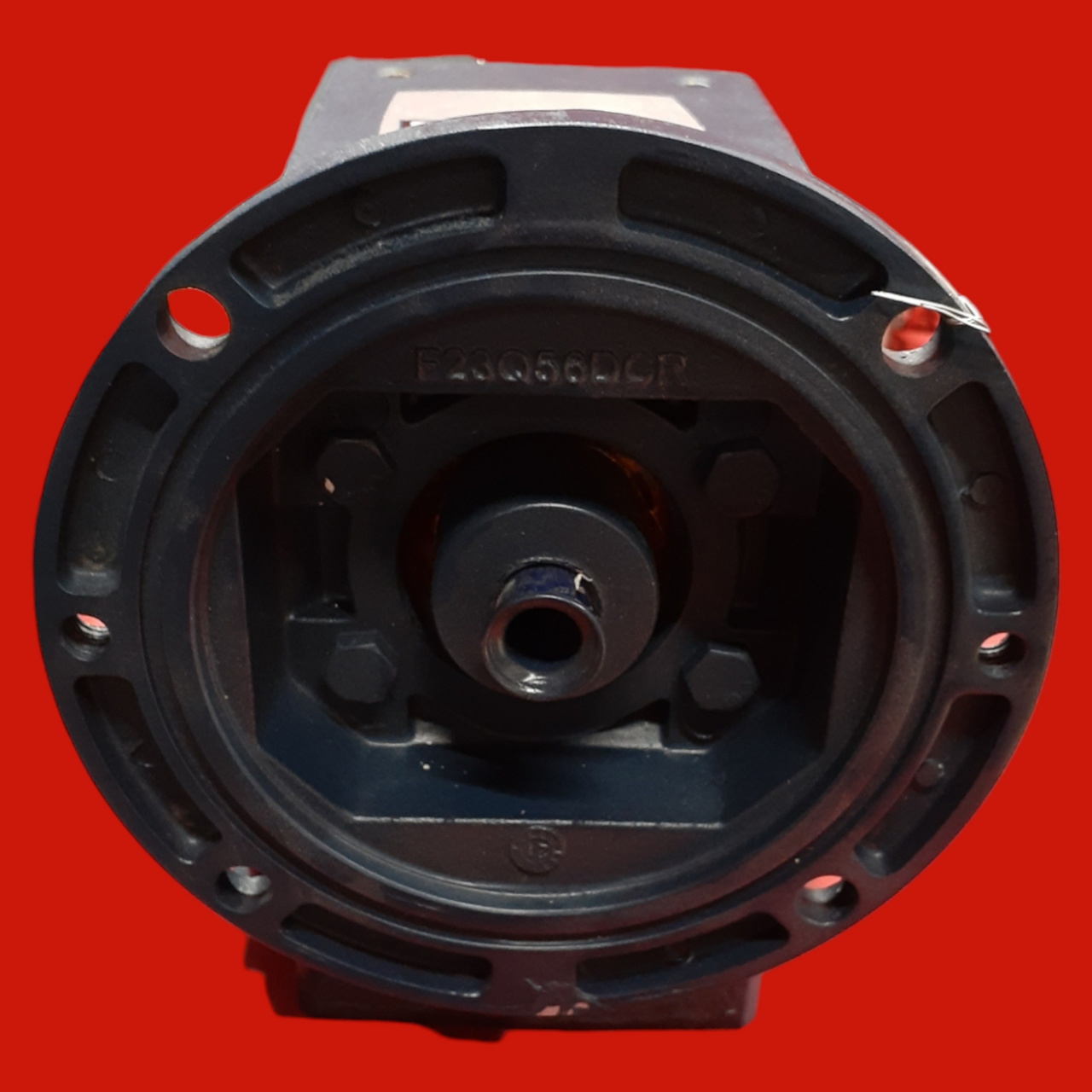

- INPUT STYLE: C-face Quill
- INPUT QUILL DIAMETER (IN): 0.625
- RATIO: 60:1
- REDUCER STYLE: Worm - Right Angle
- SERIES STYLE: GR-HMQ-H1
- CENTER DISTANCE (IN): 2.38
- OUTPUT SHAFT ORIENTATION: H1
- BORE CODE: 23
- OUTPUT HP: 0.656
- HEIGHT: 10 1/2
- RATIO RANGE: 60:1
- INPUT DIAMETER (IN): 0.625
- CENTER DISTANCE RANGE: 1" thru 3.25"
- SERIES: GR Series - Ironman Worm Gear Reducers
- OUTPUT KEY: 3/8 x 3.00
